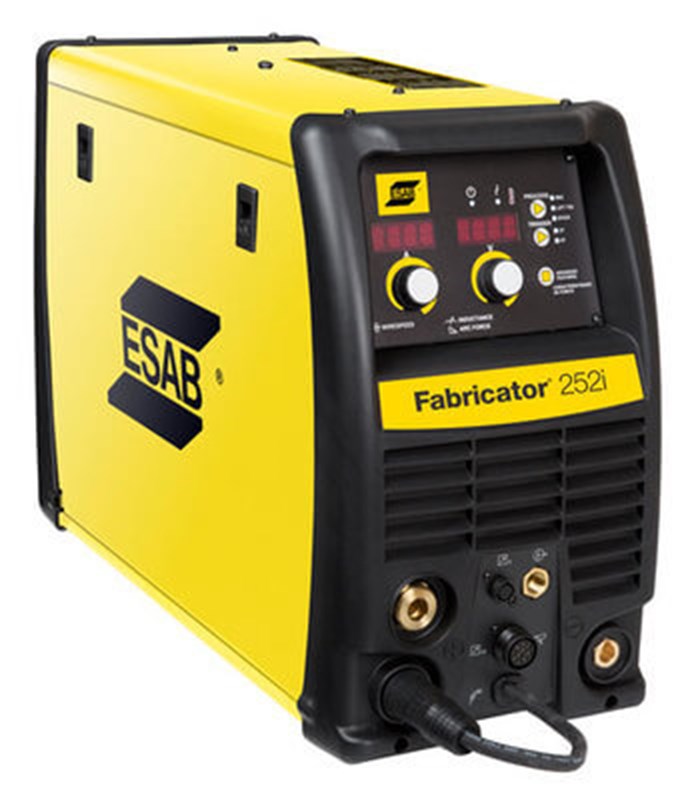

ESAB Fabricator 252i Welding Machine #W1004402

ESAB Fabricator 252I #W1004402

The game-changing welding tool, ESAB 252i, now comes with a cart. The cart will hold your welding machine and co2, argon, and combination gas cylinders. Weighing in at only 66 lbs, this three-in-one machine is even more portable with the addition of a cart.

This welding machine offers incredible flexibility for MIG, Stick, and TIG welding projects. The integrated platform of the Thermal Arc 252i has an Automatic Input Voltage Selection from 208 - 230 VAC and an Operating Range of 187 - 276 VAC. The Thermal Arc 252i is perfect for everyday maintenance and repairs, light industrial manufacturing, mechanical contractors, on-site and portable welding applications, automotive repairs, and farms and ranches. For a three-in-one machine welding machine, it's unmatched for its price, power, and flexibility. Plus, it's assembled in New Hampshire.

Specifications:

• Fabricator 252i Power Supply
• Tweco® WeldSkill® 200 Amp Ground Clamp with 10 ft (3 m) Lead
• Victor® EDGE™ Argon Flow Gauge
• Tweco WeldSkill 200 Amp Electrode
• Holder with 13 ft (4 m) Lead
• single cylinder cart for large 9" diameter cylinder and storage compartment

Drive Rolls:

• .035" / .045" V Groove Lower & Flat Upper (Fitted)
• .023" / .030" / .035" V Groove
• .045" Flux Cored Roll

Contact Tips (1 each):

• .030 (0.8 mm), .035 (0.9 mm), .045 (1.2 mm)
• Outlet Guide, .023" (0.6mm)
• 15 ft (4.6 m) Tweco Spray Master® 250 Amp MIG Gun
• Gas Hose, 12.5 ft (3.8 m), Male 5/8-18
• 9 ft (2.7 m) Power Cord and NEMA 6-50P 230V AC Plug
• Operator’s Manual
• Single Cylinder Professional Cart

Three Process Capability: MIG (GMAW/FCAW), STICK (SMAW), TIG (GTAW)

MIG: - Infinite Voltage Control with optimized starting performance.?- Inductance Control for arc stability and spatter control.?- Tweco MIG Gun w/15 ft cable and industry standard Tweco #4 connection.?- Durable Metal Feed Plate features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.?- 4", 8", or 12" Spool Capacity allows easy installation of wire spool sizes.?- Spool Gun ready.

STICK: - Adjustable Arc Force Control for optimum STICK electrode performance.?- Excellent 6010 welding electrode performance.

TIG: - Lift TIG Start: Provides TIG arc starting without use of high frequency.

Other Features:
PFC Power Factor Correction: Up to 40% more electrically efficient than conventional MIG Welders
Digital Meters: Voltage and Amperage; Preview and Hold capability
Excellent Portability: Lightweight, less than 66 lbs
Comprehensive Setup Chart: Weld set up guide for optimum welding performance over a wide range of materials and shielding gases
Trigger Control: 4T (Latch) eliminates operator fatigue
Remote Receptacle: Enables connection of remote control devices and Spool Gun
Quick Change Polarity: Simple quick change polarity (no tools required) from the front of the power source
Overload Protection: Shuts down the power source to protect the internal electrical components from overheating
IP23S: Suitable for outdoor use
Advanced Features: Includes Pre & Post Flow, Down Slope, Hot Start, Spot, Stitch, Burn Back, Wire Sharp, Arc Hour.

Applications:

• Mechanical Contractors
• Automotive Repairs & Customization
• Petro / Chem Fabrication
• Sheet Metal Fabrication / Light to Medium Fabrication
• On-Site & Portable Welding Applications
• Dairy Industry
• Food / Beverage Industry
• Farms & Ranches
• Training Institutions
• Maintenance & Repairs

View our large selection of Mig, Tig, Stick and Gas welders with the greatest values online.

ThermalArcFabricator252iPartw1004402

• Thermal Arc Fabricator 252i W1004402 Spec Sheet (ENG)
• Thermal Arc Fabricator 252i W1004402 Operator's Manual
• Thermal Arc Fabricator 252i W1004402 Welding Cart Manual
• Thermal Arc Fabricator 252i W1004402 Basic Utility Cart Assembly Instruction
• Thermal Arc Fabricator 252i W1004402 Roll Cage Assembly Instructions
