Ships Free To Lower 48 States

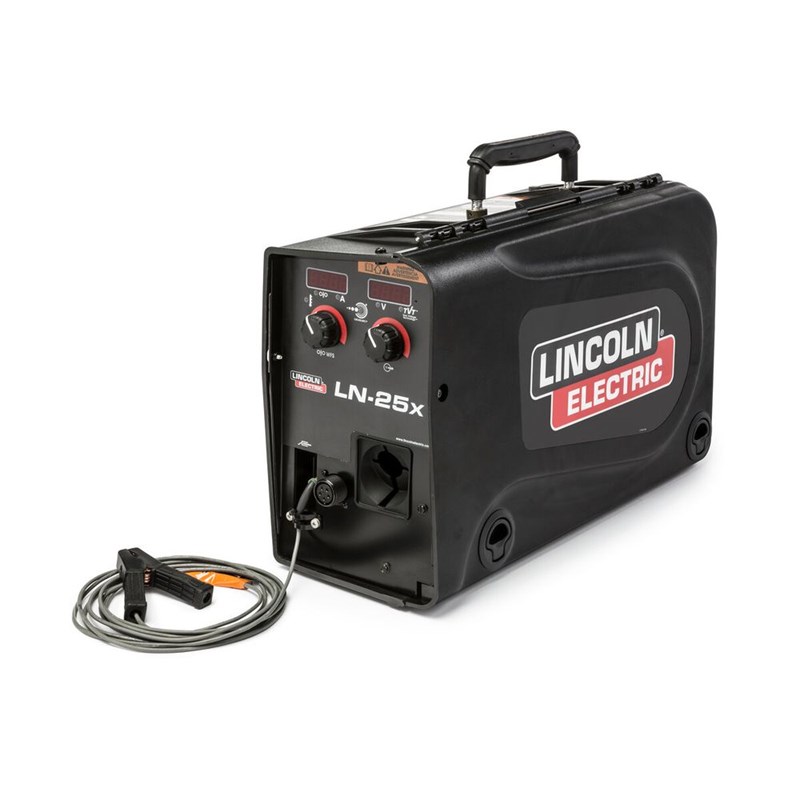

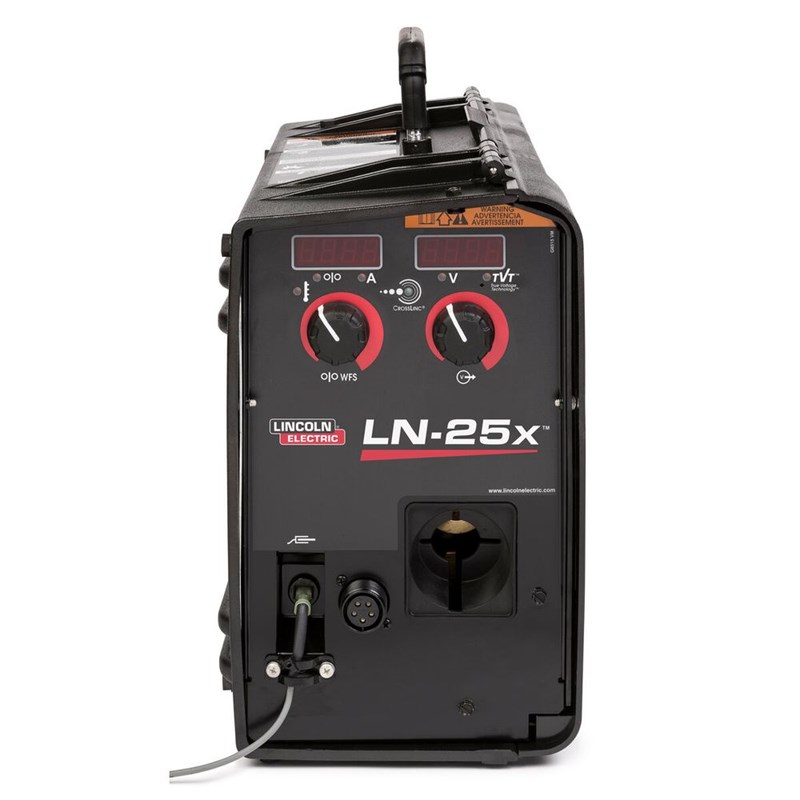

Lincoln Electric LN-25X® Wire Feeder w/ TVT, CrossLinc®, Flowmeter & Twistmate®/Dinse® Plug #K4267-4
Part Number: K4267-4
UPC: 015082864617
$4,174.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln LN-25X® Wire Feeder w/ TVT, CrossLinc® Technology, Flowmeter & Twistmate®/Dinse® Style Plug #K4267-4
The LN-25X® Wire Feeder uses CrossLinc technology to provide full system control with no additional control cables. Add this safe and portable wire feeder to your welding system and take advantage of the integrated flowmeter, Twistmate®/Dinse® Style Plug, True Voltage Technology (TVT) and flame-resistant, replaceable case. TVT compensates for the voltage drop across long weld cable lengths to give you the voltage you set at the feeder. At just 37 pounds, this ultra-portable feeder boasts a wire feed speed range of 50-700 IPM with a maximum spool diameter of 300 mm.
Highlights
- Portable & lightweight field construction wire feeder
- CrossLinc technology provides voltage control on the feeder when paired with a CrossLinc-compatible power source. No control cables are needed.
- True Voltage Technology (TVT) allows you to weld with the voltage you set at the feeder by compensating for voltage drop across long weld cable lengths.
- Twistmate® style quick-connect input power connection.
- Integrated flowmeter.
Industries
- Construction & Field Erection
- General Fabrication
- Heavy Equipment
- Heavy Fabrication
- Structural Fabrication
What’s Included
- LN-25X® w/ CrossLinc® & TVT w/ Twistmate®/Dinse® Plug on Electrode Cable
- Integrated Flowmeter
Benefits of the LN-25X® Wire Feeder
- Reduced job site clutter with the removal of cumbersome control cables
- Faster setup with fewer cable connections
- Fully encapsulated and environmentally protected electronics
- Unnecessary movement of personnel across the worksite is eliminated
- No more dragging control cables around the work site
- Rework is minimized with easy settings adjustments
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 15 in x 8.7 in x 23.2 in (381 mm x 221 mm x 589 mm) |
| Net Weight | 37 lbs (16 kg) |
Machines
| Max Rating | 450 A |
Wire and TIG Feeders
| Number of driven rolls | 2 rolls |
| Feeder type | Portable |
| Configuration | Single |
| Max spool diameter | 300mm |
| Communication Technology | CrossLinc |
| UI type | Meters |
| Max Wire Diameter (Solid) | 1/16 in (1.6 mm) |
| Max Wire Diameter (Cored) | 5/64 in (2 mm) |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Gun Bushing | Tweco #2-#4 |
| Wire Feed Speed Range (IPM) | 50-700 |
| Wire Feeders Processes | MIG Flux Cored |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 15-110 VDC |
Application
| Typical Application | Construction & Field Erection General Fabrication Heavy Equipment Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 17.00 Inches |
| Width: | 11.00 Inches |
| Length: | 28.00 Inches |
| Weight: | 45 Lb(s) 0 Oz |
Consumables
