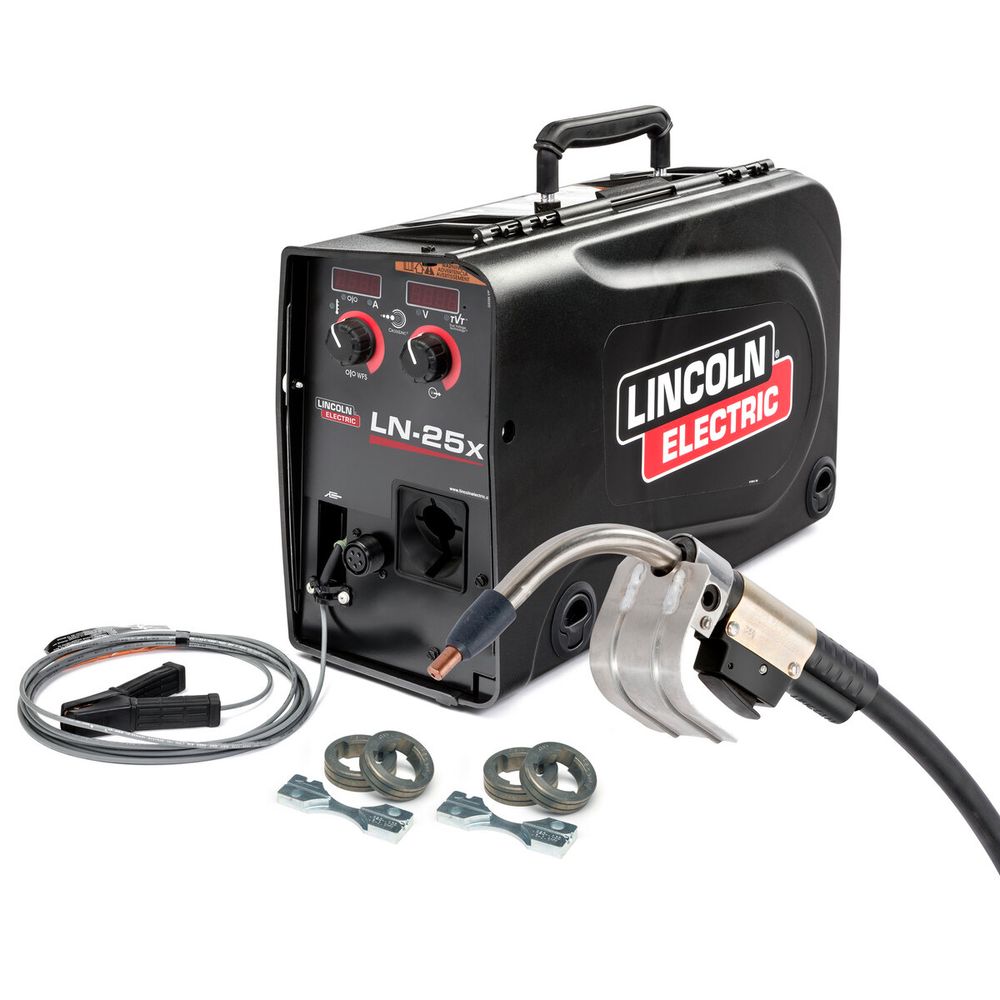

Lincoln Electric LN-25X® w/TVT K126® Pro 5/64-1/16 One-Pak #K4266-2
Part Number: K4266-2
UPC: 015082941455
$4,912.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln LN-25X® with CrossLinc Technology and TVT K126® Pro One-Pak for Field Construction #K4266-2
The LN-25X® is designed for field construction applications, providing a lightweight and portable wire feeder with advanced voltage control features.
Highlights
- Full voltage control at the feeder eliminates the need for control cables
- Reduces job site clutter and improves worker safety
- TVT technology compensates for voltage drop over long weld cable lengths
- Up to 44-lb spool capacity for extended use
Industries
- Construction
- Shipbuilding
- Metal Fabrication
- Maintenance and Repair
What's Included
- Drive Roll Kit for 5/64 in (2.0 mm) Solid/Cored Wire | KP1697-5/64
- Drive Roll Kit for 1/16 in (1.6 mm) Cored Wire | KP1697-1/16C
- LN-25X® w/CrossLinc® and TVT (No Flowmeter, Tweco®) | K4267-2
- K126® PRO Innershield® 350A FCAW-SS Welding Gun 15 ft 1/16-5/64 | K126-12
Benefits of LN-25X® w/TVT K126® Pro
- Portable and lightweight design for easy maneuverability
- Fully encapsulated electronics for environmental protection
- Replaceable flame-resistant case for quick maintenance
- Streamlined setup reduces the need for helpers or trips to the power source
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Specifications
Product Weights & Dimensions
| Dimensions (H x W x D) | 15 in x 8.7 in x 23.2 in (381 mm x 221 mm x 589 mm) |
| Net Weight | 37 lbs (16 kg) |
Machines
| Max Rating | 450 A |
Wire and TIG Feeders
| Number of driven rolls | 2 rolls |
| Feeder type | Portable |
| Configuration | Single |
| Max spool diameter | 300mm |
| Communication Technology | CrossLinc |
| UI type | Meters |
| Max Wire Diameter (Solid) | 1/16 in (1.6 mm) |
| Max Wire Diameter (Cored) | 5/64 in (2 mm) |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Gun Bushing | Tweco #2-#4 |
| Wire Feed Speed Range (IPM) | 50-700 |
| Wire Feeders Processes | MIG Flux Cored |
| Instructional Media Included | Yes |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 15-110 VDC |
Application
| Typical Application | Construction & Field Erection General Fabrication Heavy Equipment Heavy Fabrication Structural Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 56 Lb(s) 10 Oz |
