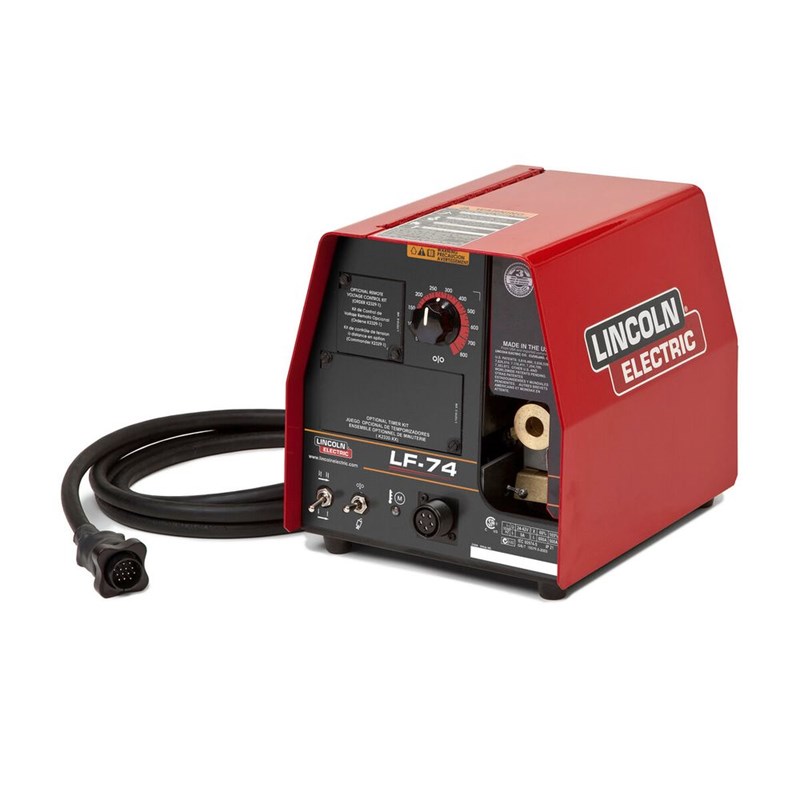

Lincoln Electric LF-74 Wire Feeder, Base Model #K2426-4
Part Number: K2426-4
UPC: 015082891378
$3,191.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
Documents4-Roll Heavy Duty Industrial Wire Feeder for MIG and Cored Wire Welding
The LF-74 Wire Feeder is a rugged, industrial-grade wire feeding system designed for reliable performance in demanding job shop and manufacturing environments. Built to handle MIG and cored wire welding applications, this feeder combines durability with precision to ensure consistent wire feeding day after day.
Highlights
- Patented MAXTRAC® heavy-duty cast aluminum wire drive system
- Brass-to-brass gun connections for improved arc performance
- Tool-less drive rolls and wire guide installation
- Gear-driven wire drive rolls for easy replacement
- Calibrated wire feed speed dial for accurate settings
Industries
- Manufacturing
- Fabrication shops
- Automotive production
- Heavy equipment manufacturing
- General metalworking
What’s Included
- LF-74 Wire Feeder
- Control Cable Extension - Male 14 pin to Female 14 pin - 10 ft (3 m) | K1797-10
- Drive Roll Kit .035, .045 (0.9, 1.2 mm) Solid Wire | KP1505-1
Benefits of the LF-74 Wire Feeder
- Improves welding productivity with consistent wire feeding
- Enhances arc performance through better electrical conductivity
- Reduces downtime with tool-less component changes
- Allows for precise control of wire feed speed
- Built to withstand harsh industrial environments
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 11.1 in x 10.2 in x 12.9 in (282 mm x 259 mm x 328 mm) |
| Net Weight | 27 lbs (12 kg) |
Machines
| Max Rating | 600 A |
Wire and TIG Feeders
| Number of driven rolls | 4 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | Drum |
| Communication Technology | analog |
| UI type | Simple |
| Max Rated Output Capable | 500A |
| Max Wire Diameter (Solid) | 1/16 in (1.6 mm) |
| Max Wire Diameter (Cored) | 5/64 in (2 mm) |
| Max WFS | 800IPM |
| Feedhead Configuration | Single |
| Wire Configuration | Single |
| Power Source to Feeder Communication Connector Type | 14-pin |
| Gun Bushing | Tweco #2-#4 |
| Wire Feeders Processes | MIG Flux Cored |
| Safety Listing CSA | Yes |
| Safety Listing UL | Yes |
Basic Specification
| Input Voltage | 24-42 VAC |
| Input Hertz | 50/60 |
| Input Power | 24-42 VAC |
Application
| Typical Application | General Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 14.50 Inches |
| Width: | 20.00 Inches |
| Length: | 16.50 Inches |
| Weight: | 37 Lb(s) 0 Oz |
