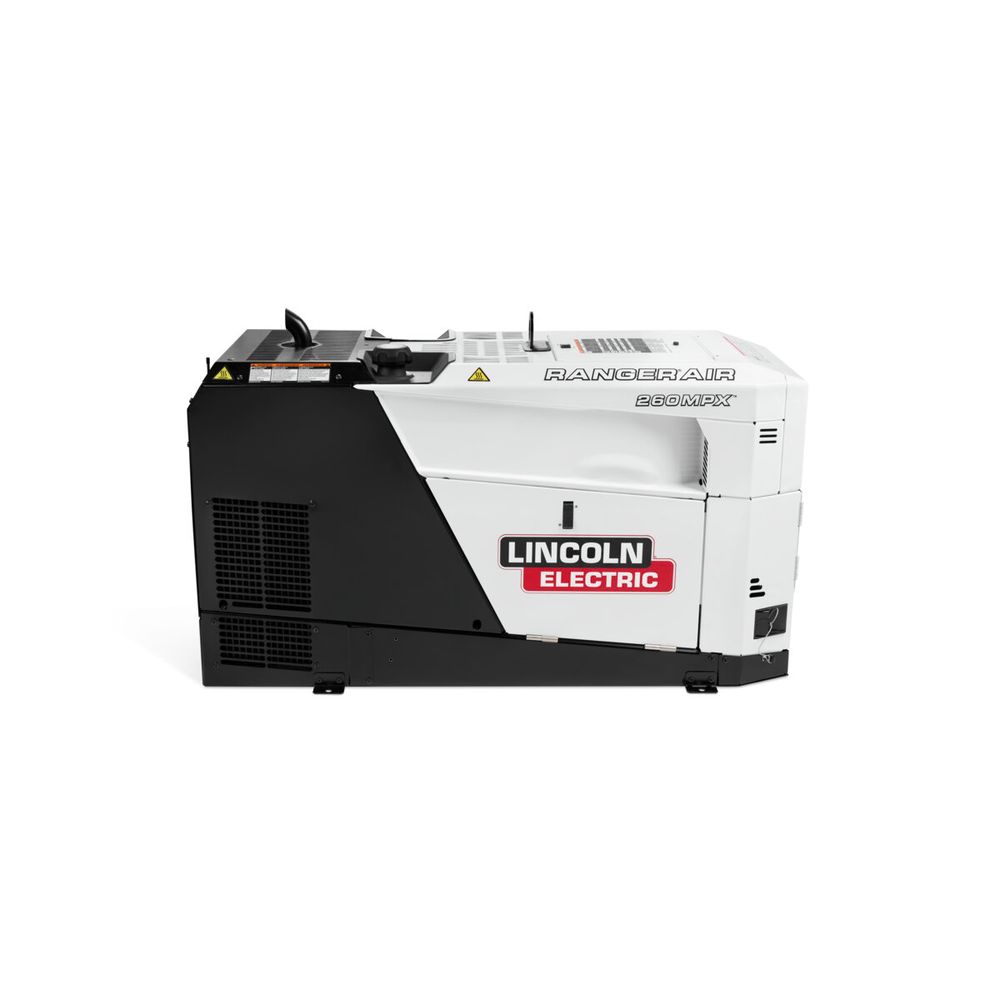

Name: Ranger® Air 260MPX™ Multi-Function Engine Driven Welder/Generator #K5238-1
Brand: Lincoln Electric
SKU: LINK5238-1

Multi-Process Welding
Gasoline Engine
11,500 W Peak Power
Remote Pendant Included
Hassle-Free Warranty

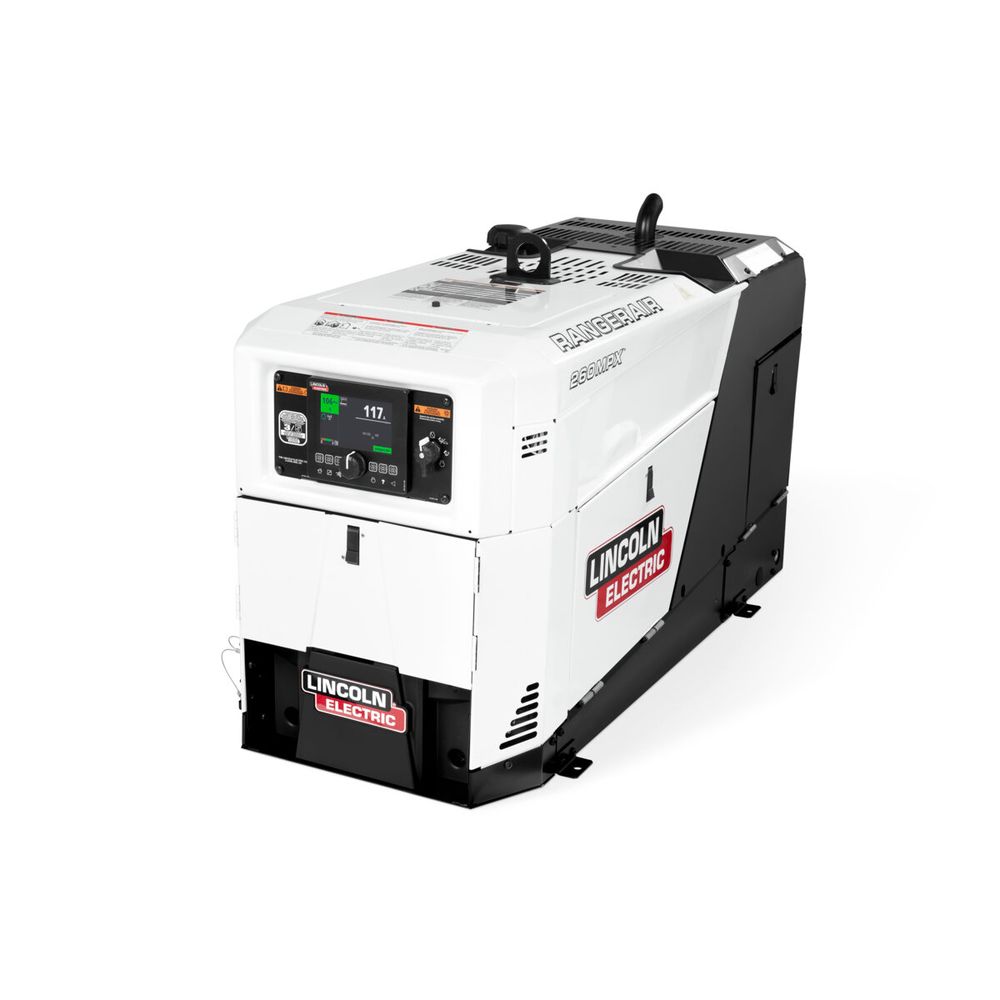

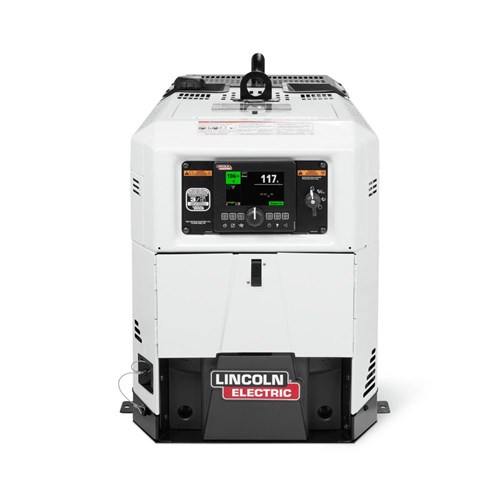

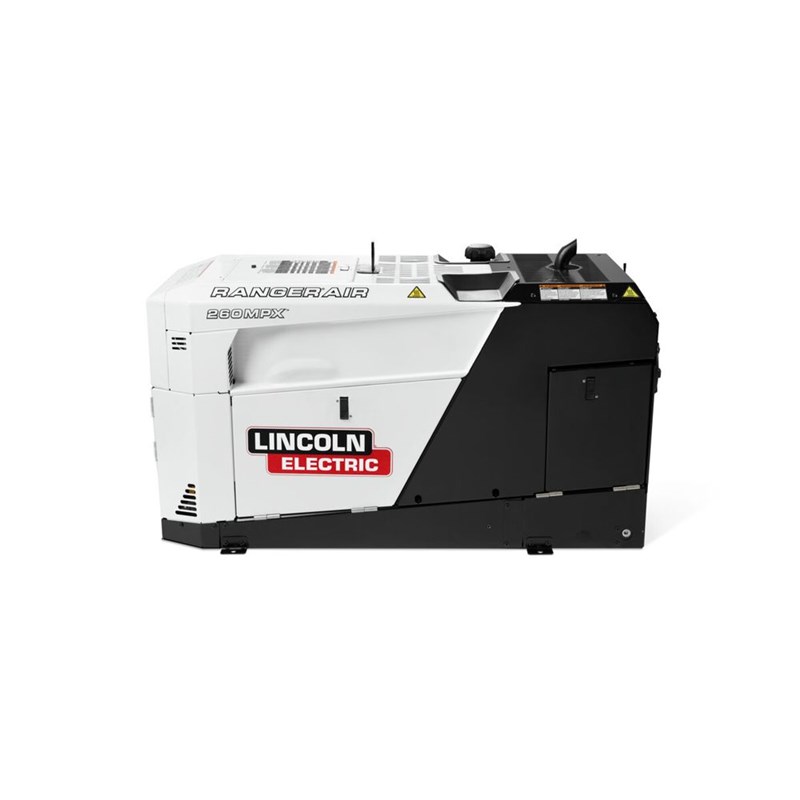

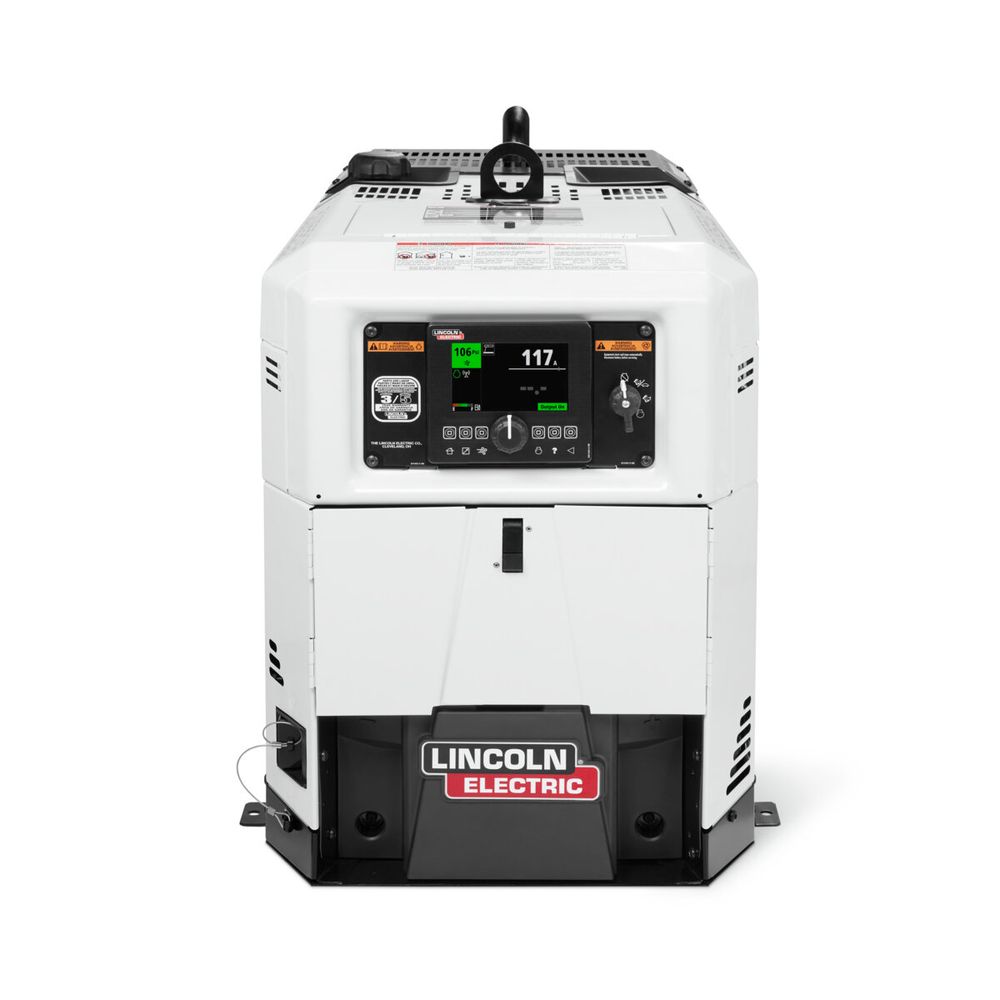

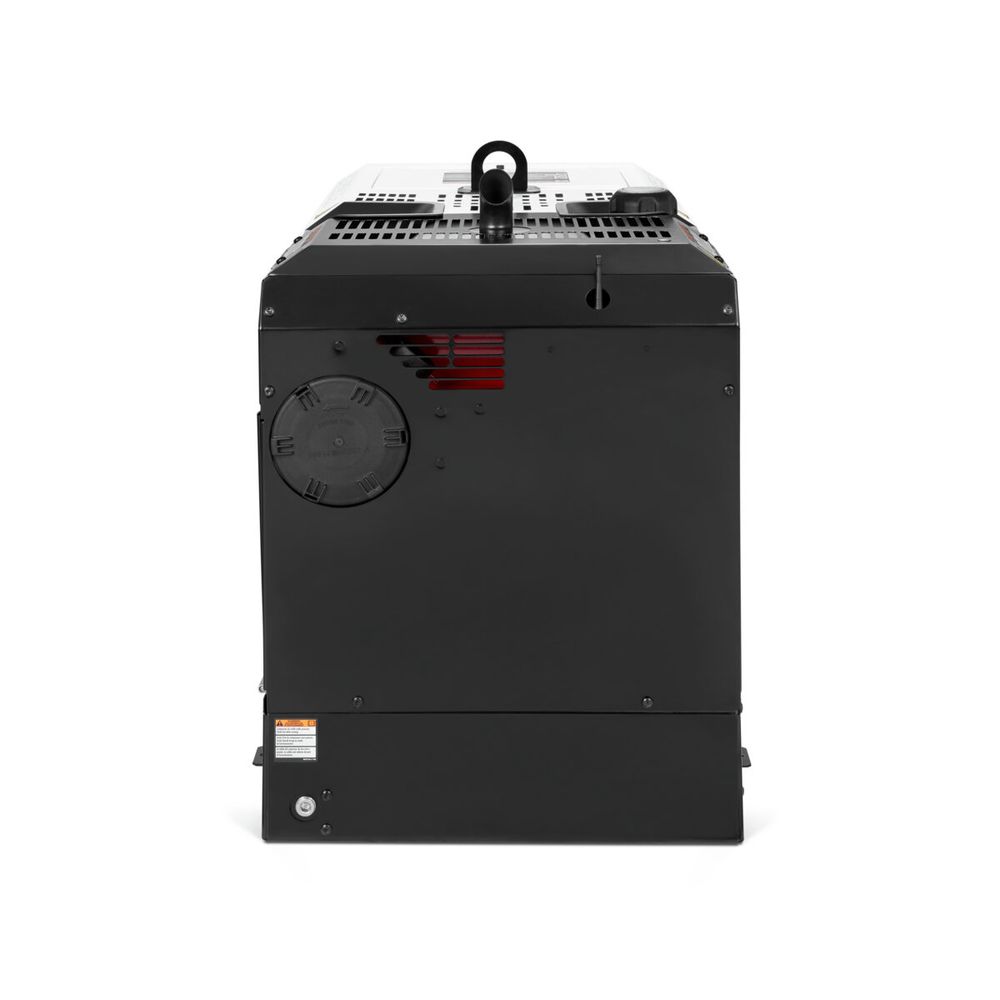

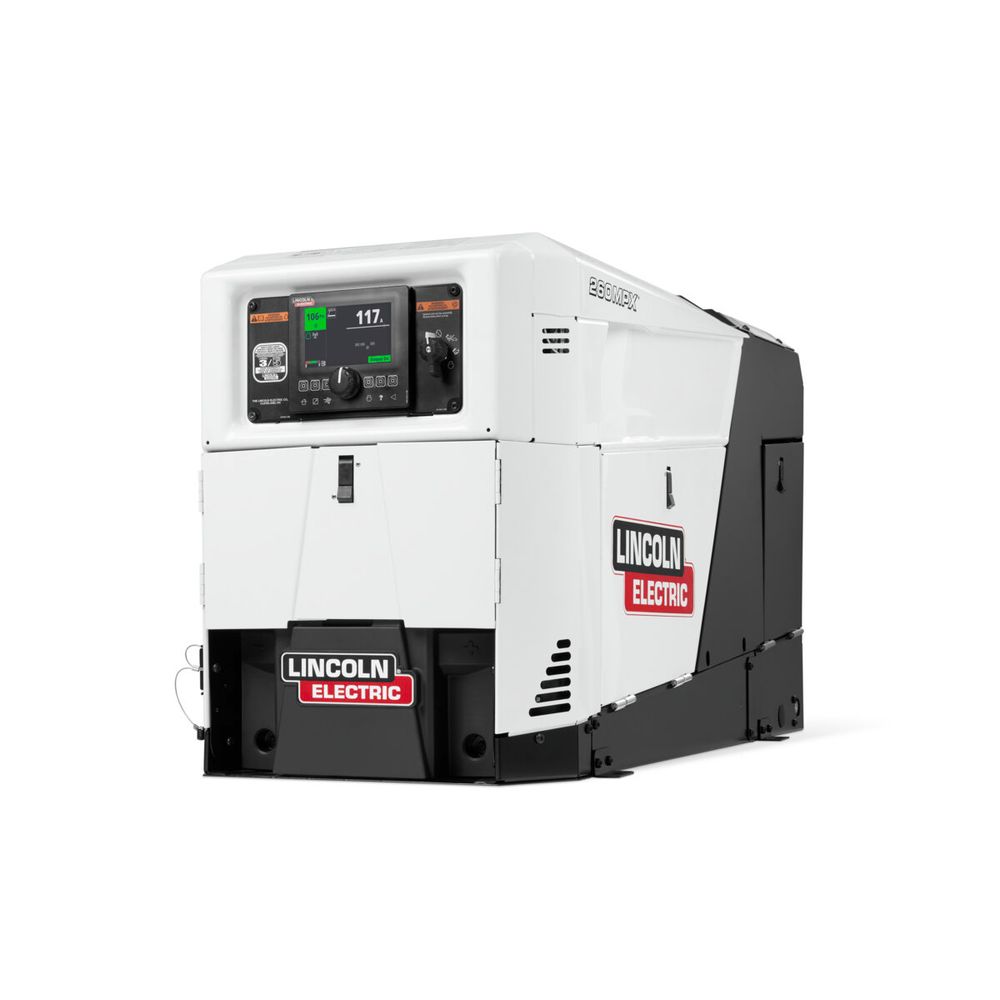

Lincoln Ranger® Air 260MPX™ Multi-Function Engine Drive Machine, 5-in-1 #K5238-1

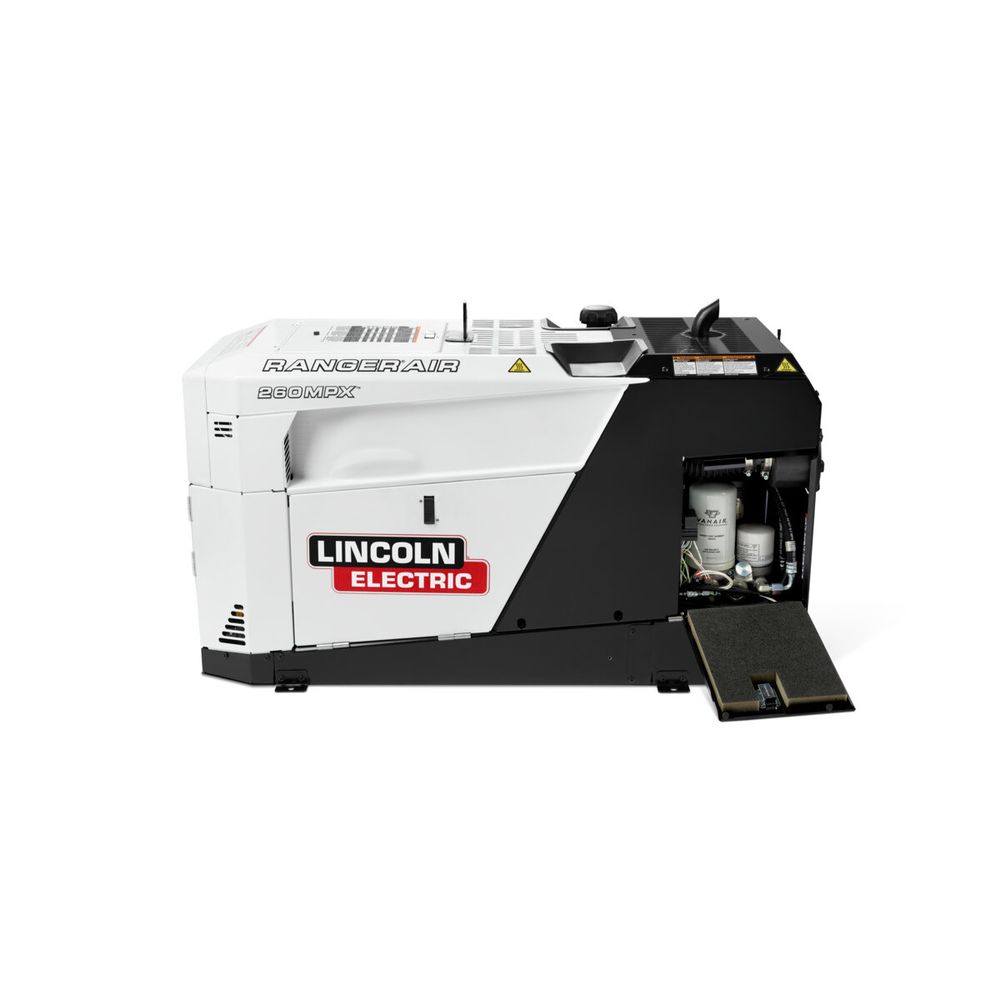

The Ranger® Air 260MPX™ engine-driven welder/generator from Lincoln Electric is the height of high-powered convenience, offering five key functionalities in one compact unit. Use the machine as an air compressor (40 CFM @ 150 psi), generator (9,000 W continuous, 11,500 W peak), battery jump assist (260A), battery charger (25A/50A) or multi-process welder (Stick, TIG, MIG, Flux-Cored Self/Gas-Shielded). Features like auto stop/start, variable engine speed and a wireless remote make this the ultimate multi-function machine for your welding setup.

Backed by Lincoln Electric 3-year warranty (engine warranted separately by manufacturer).

What’s Included

(1) Ranger Air 260 MPX Engine Drive Welder

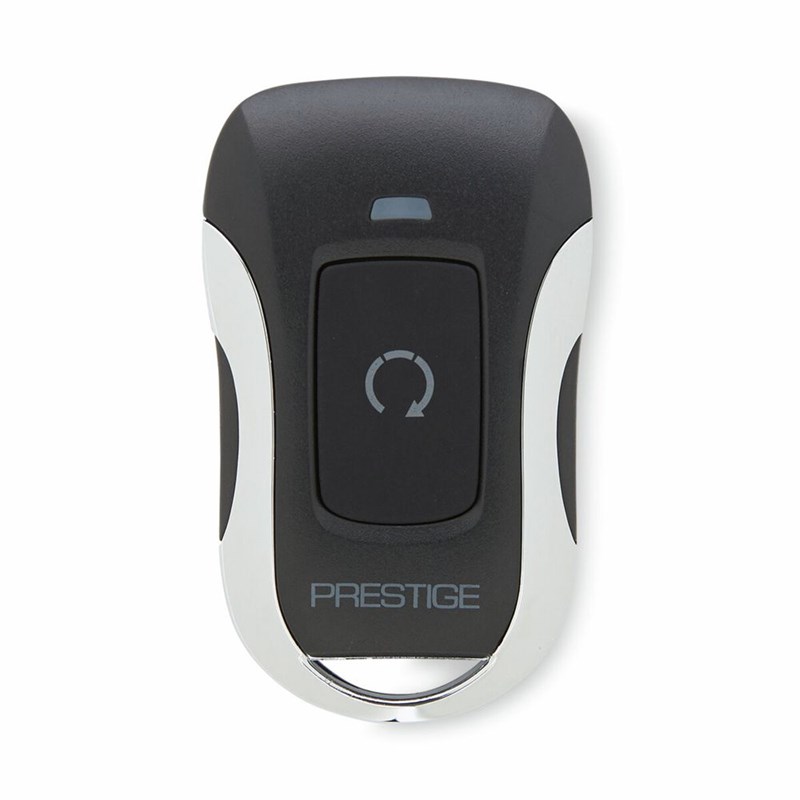

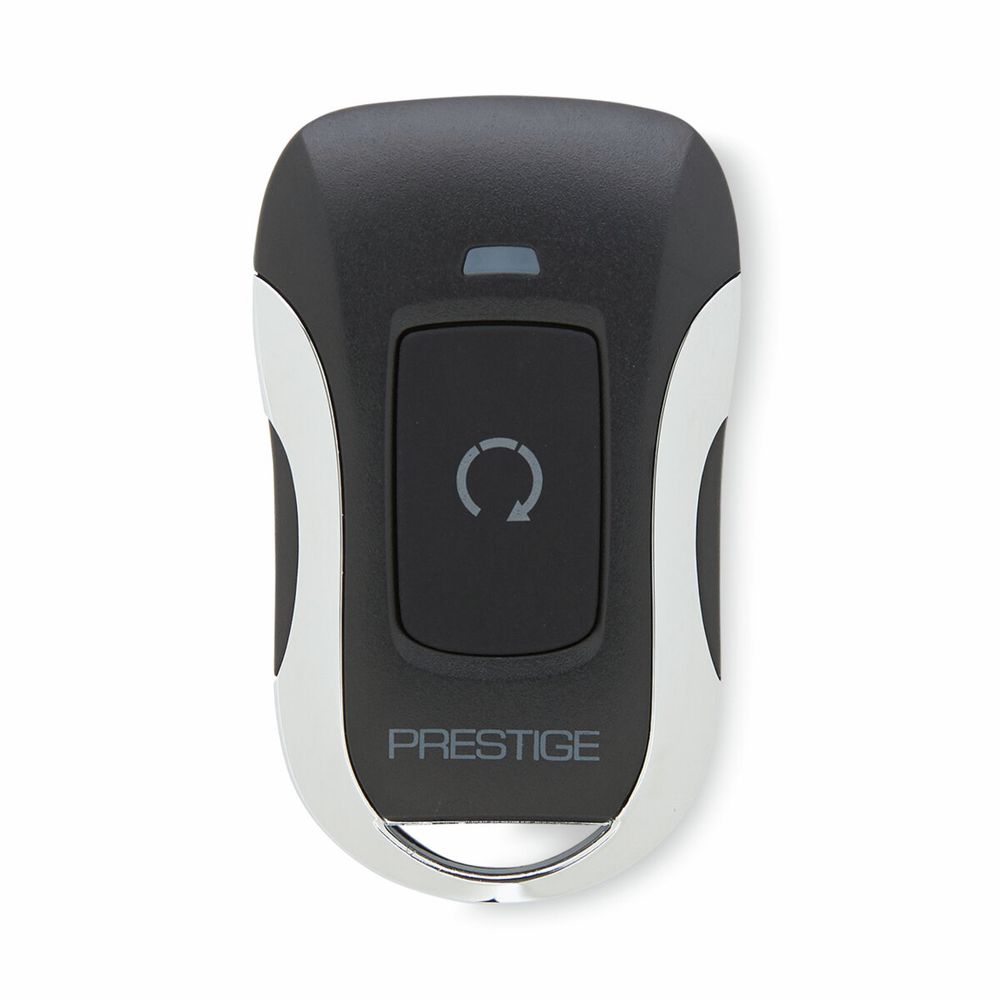

(1) Basic Wireless Remote for Engine Stop/Start Functionality

Highlights

Multi-Function Capabilities: Handle various projects with ease.
Compact Design: Saves space and increases payload for tools.

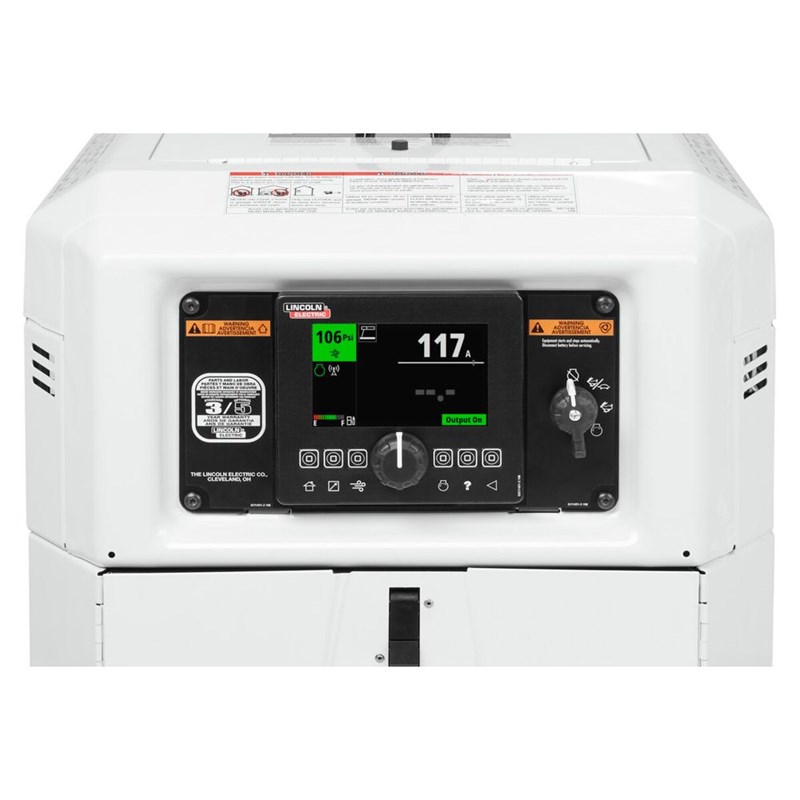

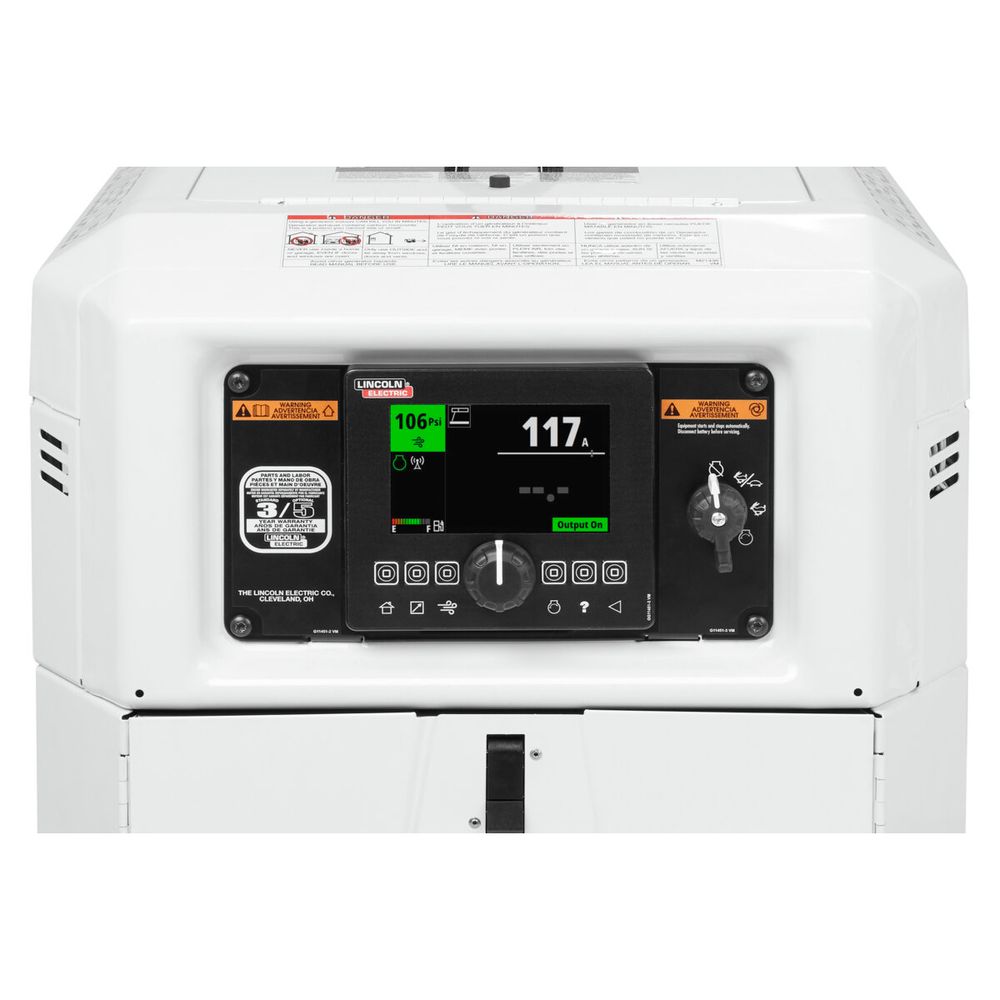

Digital Interface: Speeds up setup with an easy-to-use display.
Advanced Welding Tech: Ready. Set. Weld.® and Chopper Technology®.
Maintenance Alerts: Prevent costly repairs with timely notifications.
Fuel Efficiency: Auto stop/start and variable speed reduce costs.

Industries

Construction
Maintenance & Repair
Service Truck

Benefits of the Ranger® Air 260MPX™

Five-in-one capabilities allow use as an air compressor, generator, battery jump assist, battery charger or multiprocess welder.
Stick, TIG, MIG, Flux-Cored Self-Shielded and Flux-Cored Gas-Shielded processes.
11-gallon fuel tank and 2-cylinder Kohler engine with fuel consumption of 1.6 gph at full load.

Fast, Free Shipping & Easy Returns

At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at 1-844-682-0205 for assistance.

Browse all engine-driven welders and welding machines at the best prices online, from Welders Supply.

Specifications - Lincoln Electric Ranger® Air 260MPX™ Multi-Function Engine Driven Welder/Generator #K5238-1
Machines Processes	Stick (SMAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	231A/29.2V/100% @ 104°F (40 °C)
Max Rating	260A / 26V / 100% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 35 –260 Amps, Touch Start TIG: 25 – 260 Amps, CV-Wire: 16 – 27 Volts
Data Technologies	J1939 CAN
Machines Communication Technology	CrossLinc
Auxiliary Output Frequency	60 Hz

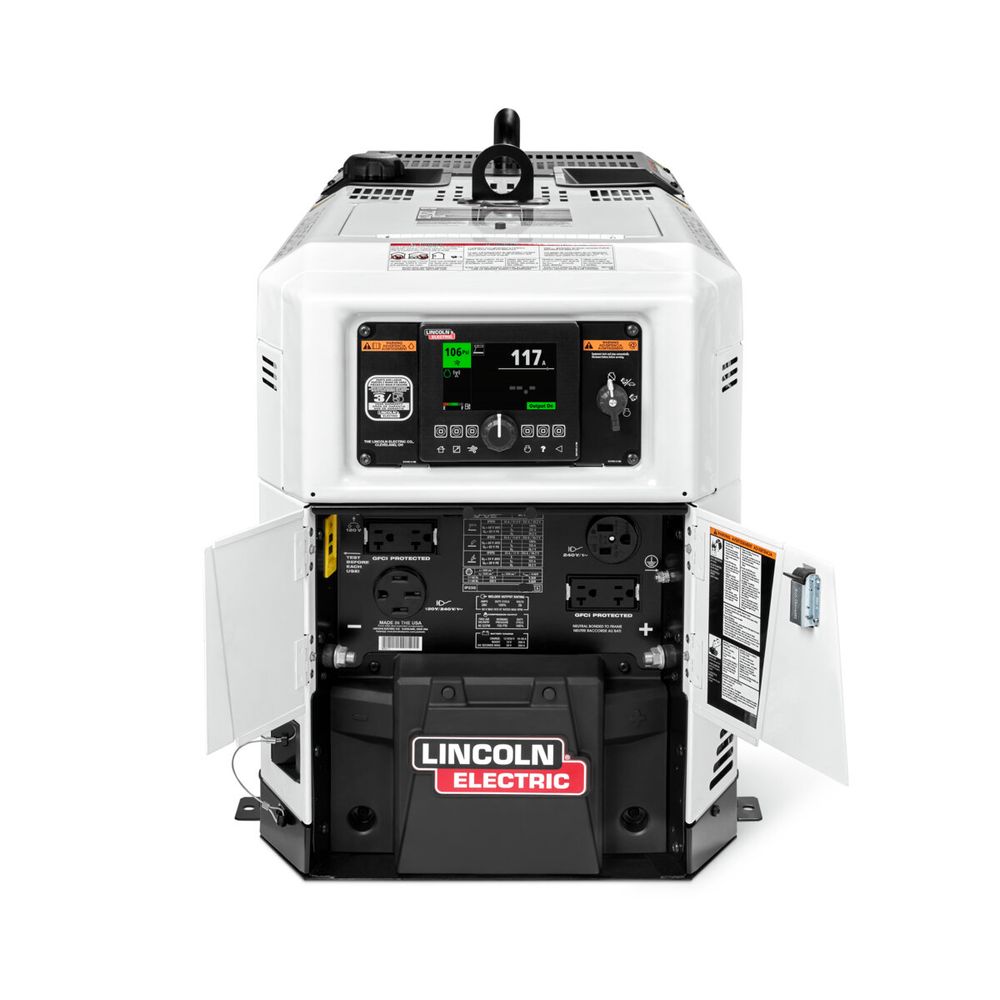

Receptacle Types	NEMA 5-20R NEMA 6-50R NEMA 14-50R

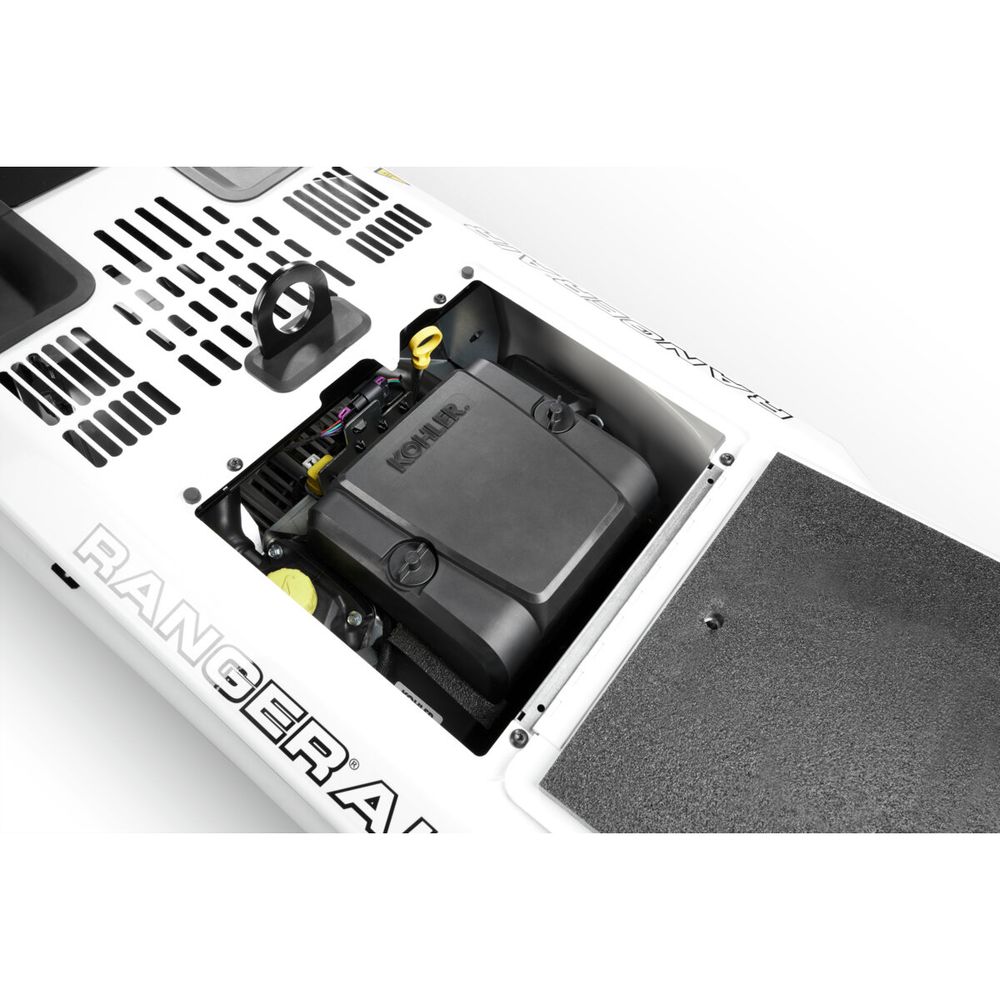

Engine Brand & Model	Kohler Electronic Throttle Body ECH749
Engine Description	2 Cylinder Air-Cooled Gasoline Engine
Engine Horsepower	26.5 HP
Fuel Tank Size (US gal.)	11
Fuel Tank Size (L)	41.6
Oil Capacity (qts.)	1.9
Oil Capacity (L)	1.8
Air Compressor Brand/Model	Vanair
Air Compressor Description	Rotary Screw
Air Compressor Output	40 CFM @ 150psi
Air Compressor Max System Pressure	225 psi
Air Compressor Protections	Safety Relief Valve High Temp Shutdown
Typical Application	Construction Construction & Field Erection General Fabrication Maintenance & Repair Repair Welding Structural Fabrication Structural Welding
Warranty	3 Years Parts and Labor - Engine warranted separately by engine manufacturer
