Free Shipping
Over $300
Ships Free To Lower 48 States
Auto-Darkening
Weld, Cut & Grind Modes
Lightweight 3lb Blower
20hr Battery Life

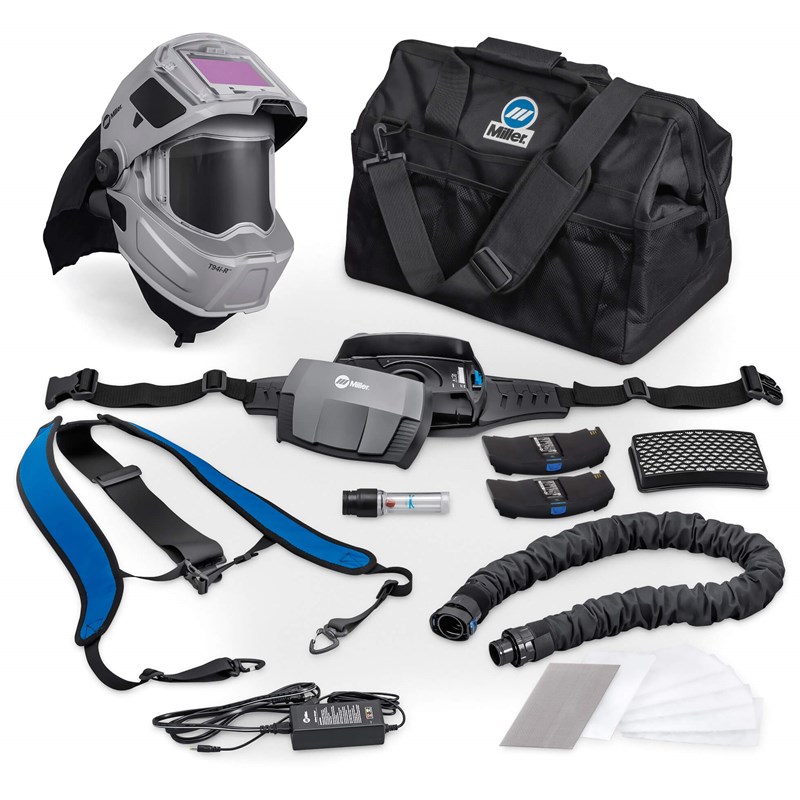

1-Year Miller WarrantyIntroducing Miller's cutting-edge PAPR II T94-R™ welding helmet system, engineered to revolutionize operator comfort and productivity. With an array of innovative features, these lightweight, well-balanced powered air purifying respirator (PAPR) helmets are designed to minimize fatigue and strain, ensuring all-day wearability.
The patent-pending Dualtec™ manifold system and targeted airflow distribution maximize perceived cooling, mitigating heat stress and discomfort. Ergonomic headgear, integrated shoulder straps, and a low-profile blower design further enhance comfort, making these helmets a game-changer for welders seeking superior performance and convenience.
What sets Miller PAPR II apart from the previous generation:
Lightweight Well-Balanced Design - Reduces neck torque, minimizing operator fatigue and strain leading to an increase in comfort and all day wear.
Dualtec™ Manifold System - Patent-pending Dualtec manifold design with 6-point airflow distribution system maximizes perceived cooling through targeted air placement. This system targets the body’s natural thermal regulation system to minimize operator heat stress. Its six-point airflow distribution system targets “hot” areas within the face for immediate cooling relief, without causing eye and/or nose irritation.
ClearLight™ 2.0 Lens Technology - Provides advanced high-definition optics for the most realistic view that’s clearer and brighter—before, during and after every weld.
Integrated 3-point Backpack-Style Shoulder Straps - Enhance comfort, reduce fatigue over long shifts by distributing system weight to alleviate back pain.
Ergonomic Four-Point Flexible Headgear with Oversized Pivoting Back Pad - Provides a secure fit, while avoiding major pressure points on the head, maximizing all-day wear. Customizable fit with seamless tilt, distance and tightness adjustments.
HDV Technology - "High Definition View" for a sharp detailed view at any angle with minimal distortion.
Half Shade Settings - For precise shade adjustments.
Shade 5.0 Side Windows - Enhances peripheral vision, amplifying sense of surroundings.
Lightweight Lithium-Ion Battery - Provides long battery life (up to eight hours) with no memory retention from frequent charging (three-hour charge cycle). Rated for 500 charges. Two batteries are included with each system.
Quick Release One-Piece Cover Lens with HDV - Simplifies lens changes, reducing downtime
Low-Profile Breathing-Tube Attachment - Eases on/off process while flexible tube material eliminates breathing tube snags in work cell.
LCD Display - Allows users to see fan speed, filter timer, battery level and current time.
Lightweight Low-Profile Blower Design - Extends wearability without interfering with surroundings.
Three Air Speeds - Allow users to customize the volume of air to maximize comfort in varied work conditions.
Audible and Vibrating Alarms - Notify users in noisy environments of low battery due to reduced airflow.
Quick Release Belt Design - Allows for seamless system on/off.
Four Arc Sensors - Four independent arc sensors provide superior lens response for obstructed or low amp welding.
Memory Function - For ease of switching between two preset customized memory settings
Digital Controls - Intuitive design and large push buttons allow user to easily adjust mode and settings.
Flame-Resistant Washable Head Seal with Ultra-Soft Outer Cuff - Enhances wear without causing skin irritation. Unique design can provide additional protection by covering the ears, or ease communication if placed in front of the ears. Cape offers necessary head protection in out-of-position applications.
InfoTrack™ 2.0 - Monitors arc time and arc count for quoting and metrics
Integrated HDV Grind Shield - Large integrated grind shield provides 44 sq. in. of clear viewing area for grinding and other tasks, increasing helmet-on time, decreasing the potential for eye injuries.
Two Batteries - Provide 20 hours of run time, decreasing down time
9 sq. in. Viewing Area - Provides 9 sq. in viewing area through welding lens
Try these accessories with your new T94-R™ PAPR Welding Helmet System:
+
+
+
| T94-RTM Helmet #292753 - Specifications | |
|---|---|
| OSHA Classification | Loose-fitting powered air purifying respirator (no fit test required) |
| Filter Type |
High-Efficiency Particulate Air Filter (HEPA) protects against solid dust particles, metal fumes, and mists
|
| Assigned Protection Factor (APF) | 25 with standard head seal 1,000 with optional heavy-duty head seal (face shield and T94iH-R with hard hat models only) |
| Certifications |
|
| Weld Viewing Area | 9 sq. in. (58.1 sq. cm) |
| Grind Shield Viewing Area | 44 sq. in. (58.1 sq. cm) |
| APF | 25 |
| Modes (Shades) | Weld (8–13) Cut (5–8) Grind (3) X-ModeTM (8–13) |
| PAPR II Blower Specifications (Subject to change without notice.) | |
|---|---|
| Filter | HEPA |
| Flow Rate | Low: 175+ lpm Med.: 195+ lpm High: 215 lpm |
| Battery Life | Low speed: 10 hours Med. speed: 9 hours High speed: 8 hours |
| Charging Time | 3 hours |
| Charges | 500* *500 total charges per battery — two batteries included in each package. |
| Certification | NIOSH 42 CFR 84 |
SHIPPING DIMENSIONS |
|
| Height: | 1.00 Inches |
| Width: | 1.00 Inches |
| Length: | 1.00 Inches |
| Weight: | 1 Lb(s) 0 Oz |
