MIG Welding
Up to 650 A @ 44 VDC Output
208/230/460 V 3PH Input
Complete Welding Pkg
Miller 3-Year Warranty
Miller Deltaweld® 500 230/460V MIGRunner™ with Intellx™ Feeder #951949001
Intellx™ wire feeder options deliver application-specific benefits for welders of all skill levels.
Highlights
- Easy to use - EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
- Ready to weld - The Deltaweld System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
Processes
- MIG (GMAW)
- Flux-cored (FCAW)
- Accu-Pulse® MIG (GMAW-P)
- High-deposition MIG (GMAW)
- RMD®
Applications
- General manufacturing
- General fabrication
- Structural steel fabrication
- Transportation
- Sheet metal fabrication
- Light-gauge tube and sheet

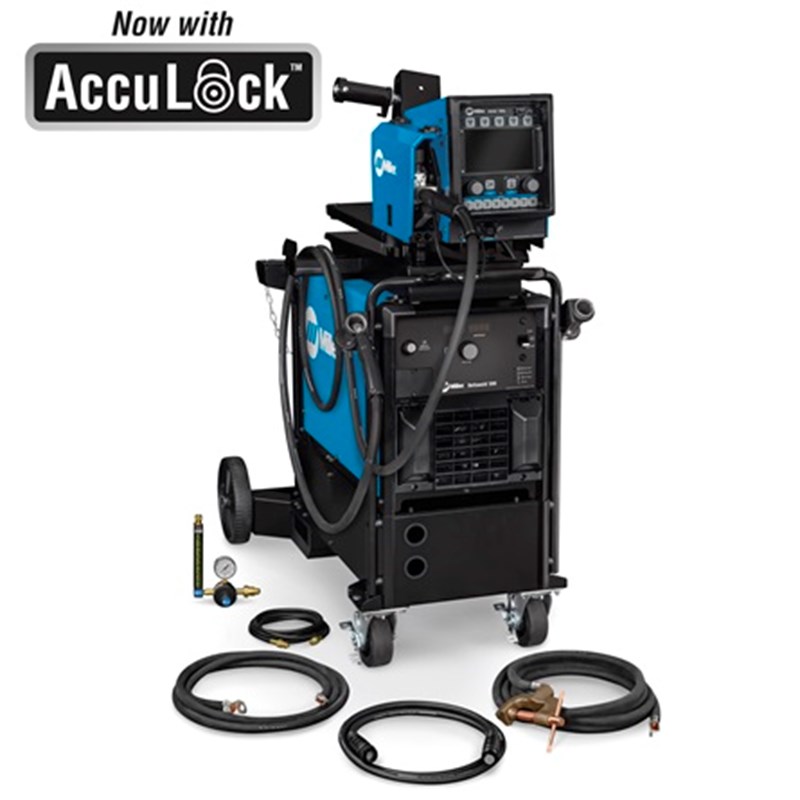

What's Included
- Feeder Swivel Kit
- Cart Accessory Kit
- Intellx™ Pro Wire Feeder
- .035/.045 in. V-groove Drive Rolls
- Deltaweld 350/500 Running Gear/Cylinder Rack

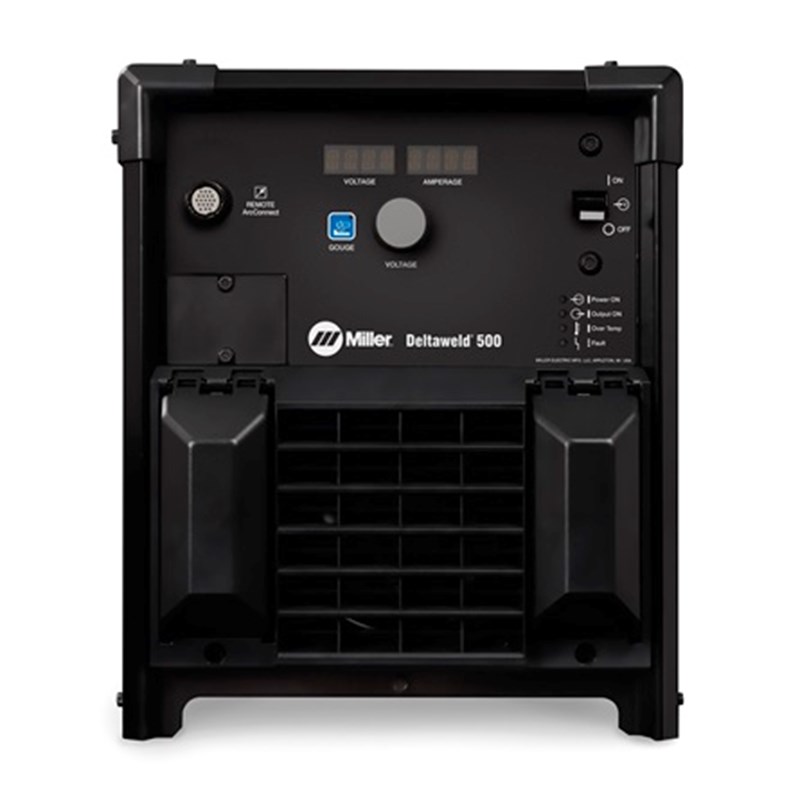

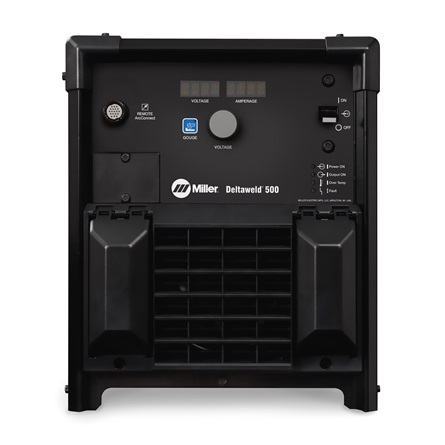

- Deltaweld® 500 with ArcConnect™
- ArcConnect Control/Motor Cable 9ft.
- Bernard™ BTB Gun 400 A
Capabilities of the Deltaweld® 500 230/460V MIGRunner with Intellx™ Elite Feeder
- Backwards Compatibility - A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wire feeders.
- Legacy meets pulse - Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.
- Wind Tunnel Technology™ - Internal air flow that protects electrical components and PC boards from dirt, dust, debris, greatly improving reliability.
- Dedicated wire feeder options

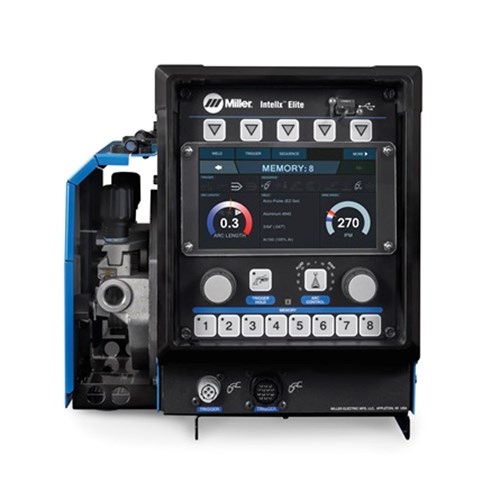

- Intellx Elite feeder - New arc control feature means welders can produce better welds with minimal parameter adjustments.
- Intellx Pro feeder - Adds Accu-Pulse®, EZ-Set, steel weld programs, and memory buttons.
- Gouge Mode - Deltaweld 500 has a dedicated constant current carbon arc gouge mode specifically designed to gouge up to 3/8" carbons.
- ArcConnect™ - Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
- Measures Productivity - Get visibility into your operation with easy to understand reports. Insight Core and Centerpoint Basic package is available on select Deltaweld models.
- AccuLock S Consumables - AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
- Fan-On-Demand™ - Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.
