MIG Welding
Up to 425 A @ 35.25 VDC Output
230/460 V 3PH Input
Complete Welding Pkg
Miller 3-Year Warranty

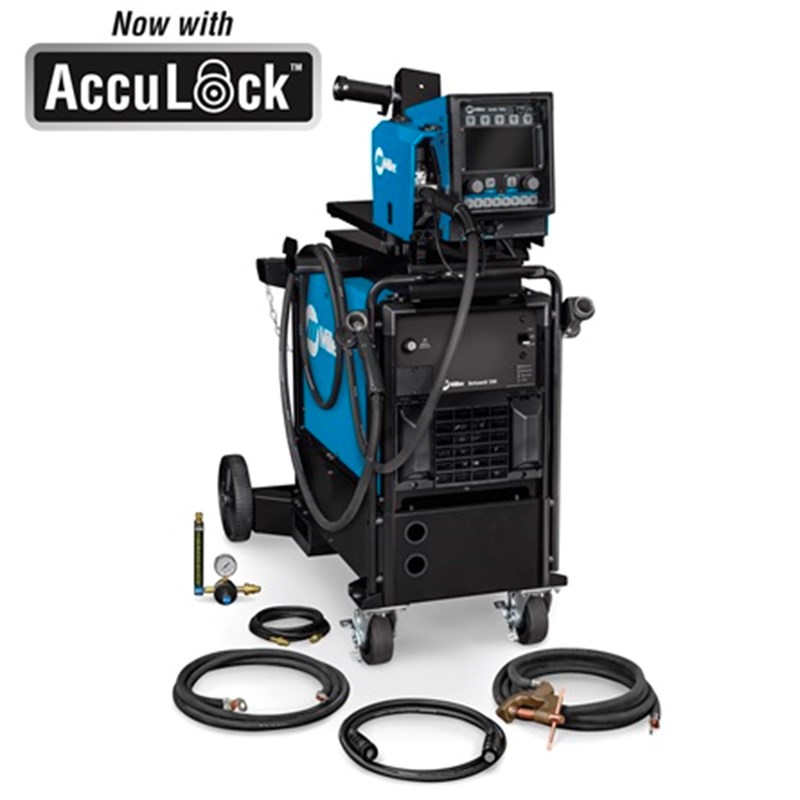

Miller DeltaWeld® 350 230/460V MIGRunner™ with Intellx™ Elite Feeder #951946001
The standard in manufacturing for welders of all skill levels, with Intellx™ wire feeder options that deliver application specific benefits.
What's Included
- Feeder Swivel Kit
- Cart Accessory Kit
- Deltaweld 350 Running Gear/Cylinder Rack
- Intellx™ Pro Wire Feeder
- ArcConnect Control/Motor Cable 9ft.
- .035/.045 in. V-groove Drive Rolls

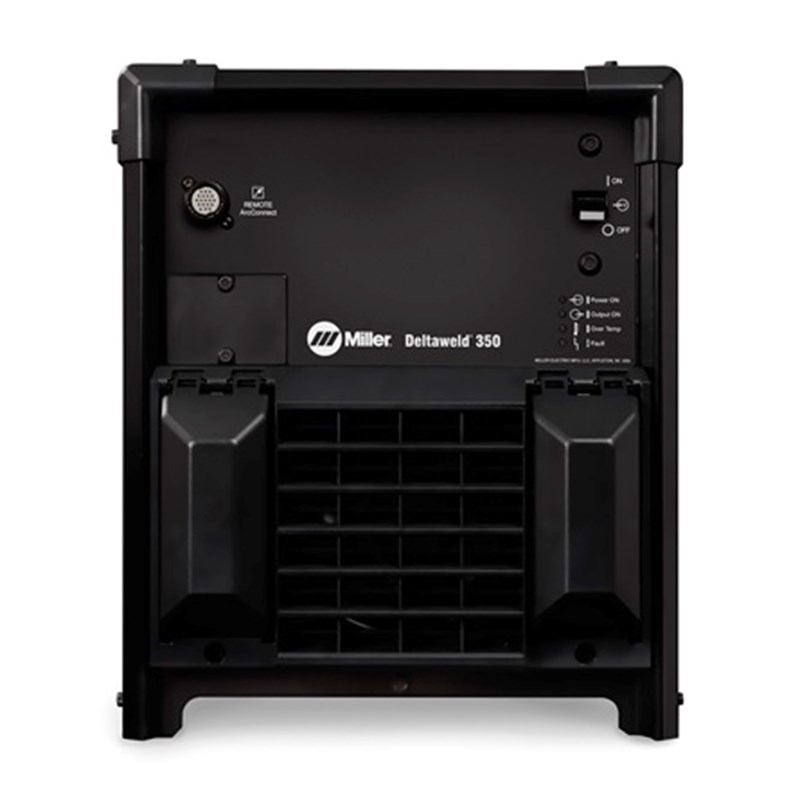

- Deltaweld® 350 with ArcConnect™
- Bernard™ BTB 300 AMP, 15 FT Gun, AccuLock S Consumables (conventional liner)
Applications
- General manufacturing
- General fabrication
- Structural steel fabrication
- Transportation
- Sheet metal fabrication
- Light-gauge tube and sheet
Processes
- MIG (GMAW)
- Flux-cored (FCAW)
- Accu-Pulse® MIG (GMAW-P)
- High-deposition MIG (GMAW)
- RMD®
Features
Easy to Use
EZ-Set simplifies parameter setup based on material thickness, removing complexity and reducing welder training time.
Legacy Meets Pulse
Pulsed MIG-capable Deltaweld with Intellx Pro feeder provides a 28-percent wider operating window and a more forgiving arc, compensating for variations in operator technique. Welders of any skill level can get into production quicker.
ArcConnect™
Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
AccuLock S Consumables
AccuLock can transform the way you manage your MIG welding gun consumables, helping to optimize productivity, operating costs and welder confidence. Fewer tip changes, less troubleshooting and more beads worth bragging about.
Fan-On-Demand™
Operates only when needed, reducing noise, power consumption, and the amount of airborne contaminants going through the machine.
Ready to Weld
The Deltaweld 350 System is shipped as a complete package with everything you need to get welding sooner. Just hook up your primary power, add gas, wire and a welding gun, and you're ready to weld.
Dedicated Wirefeeder Options

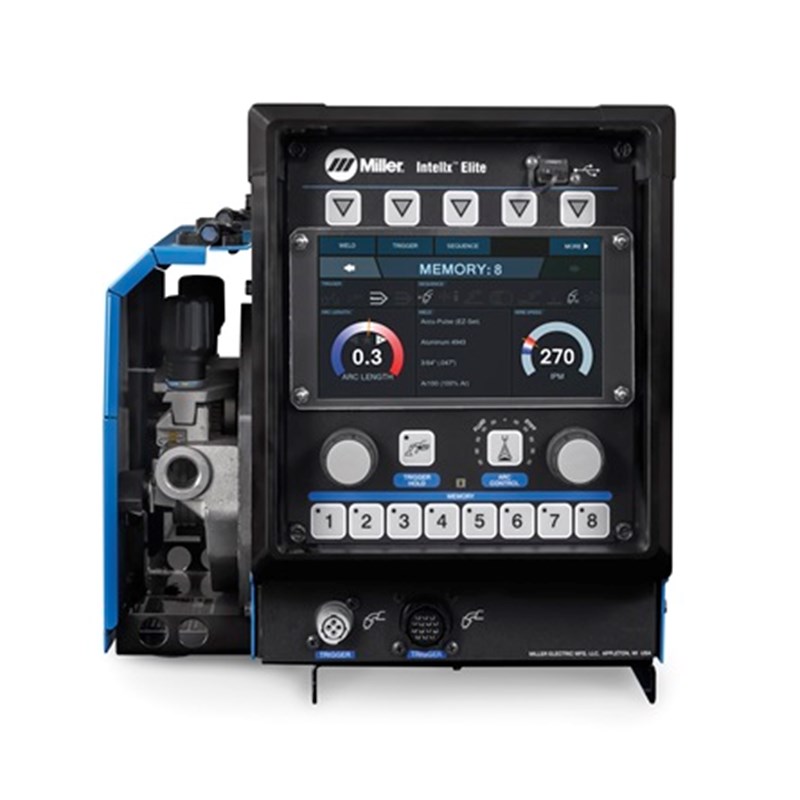

Intellx Elite feeder — New arc control feature means welders can produce better welds with minimal parameter adjustments.
Intellx Pro feeder — Adds Accu-Pulse®, EZ-Set, steel weld programs and memory buttons.
Backwards Compatibility
A model is available with both ArcConnect and the standard Miller 14 Pin for use with older Miller wirefeeders.
Wind Tunnel Technology
Internal air flow that protects electrical components and PC boards from dirt, dust, debris— greatly improving reliability.
