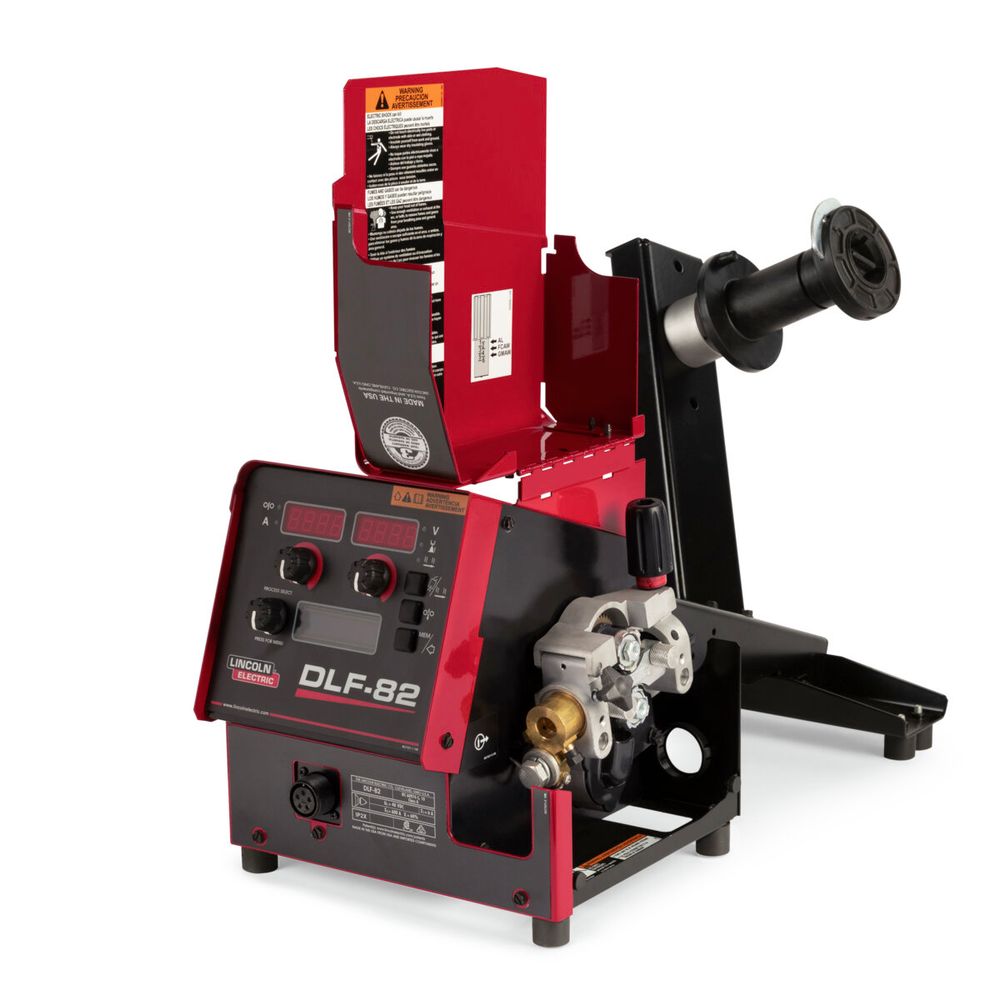

Lincoln Electric DLF-82 Bench Model (w/ Gun) Digital Semiautomatic Wire Feeder (Pulsed MIG Compatible) #K5282-3
Part Number: K5282-3
UPC: 015082983905
$2,664.00
(Qty: 1/pk)
Shop all Lincoln Electric products from Welders Supply.
DocumentsLincoln Electric DLF-82 Bench Model (w/ Gun) Pulsed MIG Digital Wire Feeder #K5282-3
The DLF-82 is a high-performance digital semiautomatic wire feeder designed for use with Flextec power sources, specifically for Pulsed MIG and CV-MIG applications. It includes a Magnum 350 HDE welding gun and is capable of supporting up to 60-lb wire spools.
Highlights
- Integrated 5-pin ArcLink control cable
- Magnum 350 HDE weld gun included
- Supports wire spools up to 60 lbs
- Synergic weld modes for easy setup
- Auto settings for optimal welding parameters
Industries
- Manufacturing
- Construction
- Metal Fabrication

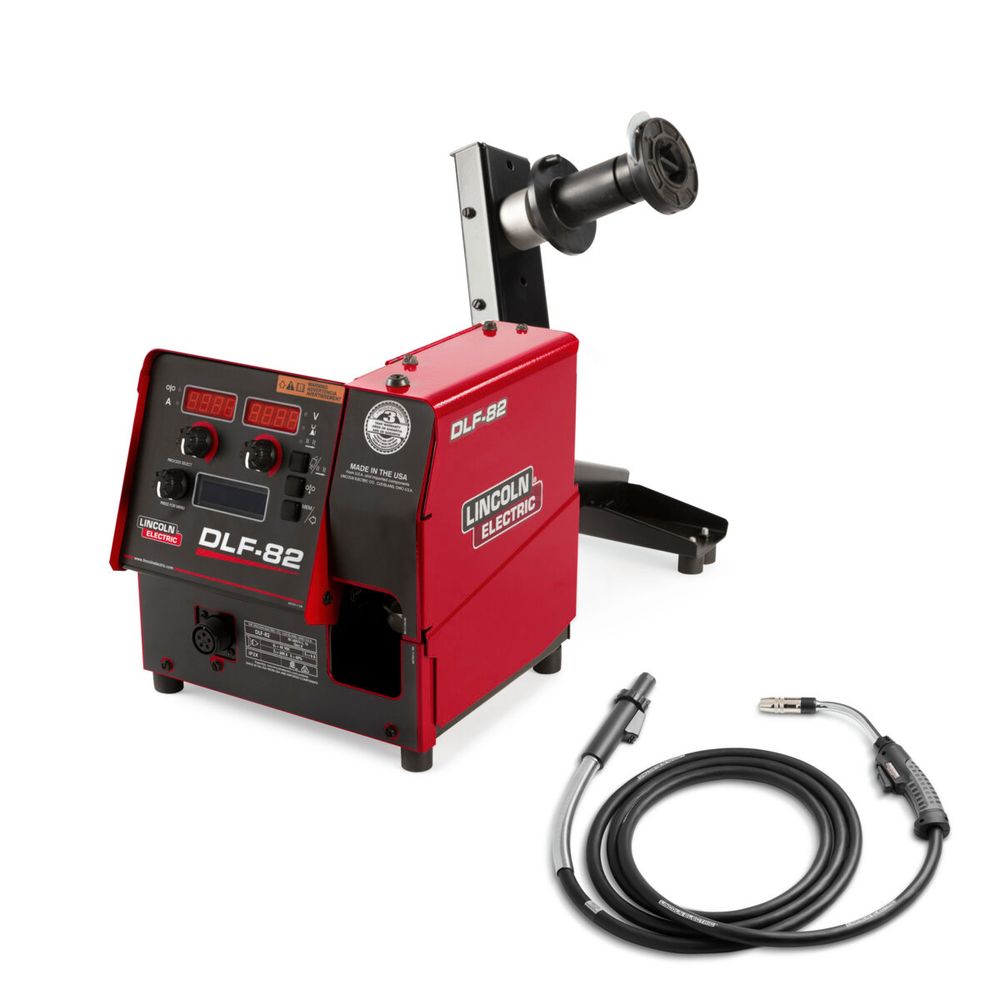

What’s Included
- Integrated 8-ft ArcLink control cable
- DLF-Feeder Wire Reel Stand | K5284-1
- Drive Roll Kit (Combination .035 in / .045 in Solid Wire) | KP1696-1
- Magnum® PRO Curve™ HDE™ 350 Welding Gun | K4532-2-10-45
Benefits of the DLF-82 Wire Feeder
- Simple System Configuration: Streamlined setup with included components for quick deployment.
- Pulsed MIG Support: Enhances puddle control and reduces spatter.
- Memory Storage: Up to four stored weld schedules for quick adjustments.
- MaxTrac Wire Drive: Ensures reliable and consistent wire feeding performance.
- Customizable Start and Crater Settings: Allows for fine-tuning of weld profiles at start and end.
Fast, Free Shipping & Easy Returns
At Welders Supply, we prioritize fast, reliable shipping and hassle-free returns. If you’re not fully satisfied with your purchase, you can return it within 14 days for an exchange, credit or refund. Please ensure all products are returned freight paid, in their original packaging, with all materials, manuals and accessories included. A restocking fee of up to 25% may apply based on product condition. Certain restrictions apply to custom orders, PPE and demo items. Call our customer service team at (844) 682-0205 for assistance.
Product Weights & Dimensions
| Dimensions (H x W x D) | 15.9 in x 12.0 in x 25.6 in (403 mm x 305 mm x 320 mm) |
| Net Weight | 43 lbs (19.5 kg) |
Machines
| Machines Processes | MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
| IEC Rating | 60974-10 |
| Max Rating | 600A@60% |
| Machines Communication Technology | ArcLink |
| Wire Feeder Supply Voltage | 40VDC |
| Amphenol Pins (type of connector) | 5 |
Wire and TIG Feeders
| Number of driven rolls | 2 rolls |
| Feeder type | Bench |
| Configuration | Single |
| Max spool diameter | 60lb |
| Communication Technology | ArcLink |
| UI type | Meters |
| Max Rated Output Capable | 600A |
| Max Wire Diameter (Cored) | 5/64 in (2 mm) |
| Max WFS | 800IPM |
| Feedhead Configuration | Single |
| Power Source to Feeder Communication Connector Type | 5-pin |
| Accessories Communication Connector Type | None |
| Gun Bushing | Tweco #2-#4 |
| Max Spool Size (lbs) | 60 |
| MIGPulse-WireFeeders | Yes |
| Wire Feeders Processes | MIG Pulsed MIG Flux Cored |
| More Information | Compatible with Flextec power sources |
| Safety Listing CSA | Yes |
Basic Specification
| Input Voltage | 40VDC |
| Rated Output | 600A@60% |
Application
| Typical Application | General Fabrication |
Warranty
| Warranty | 3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 26.00 Inches |
| Width: | 40.00 Inches |
| Length: | 24.00 Inches |
| Weight: | 75 Lb(s) 0 Oz |
