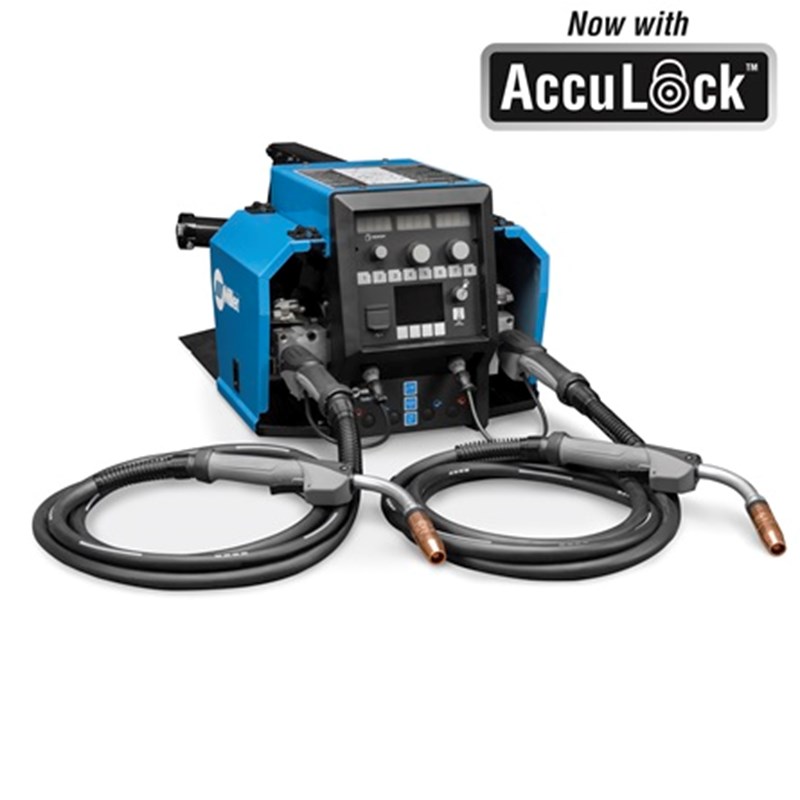

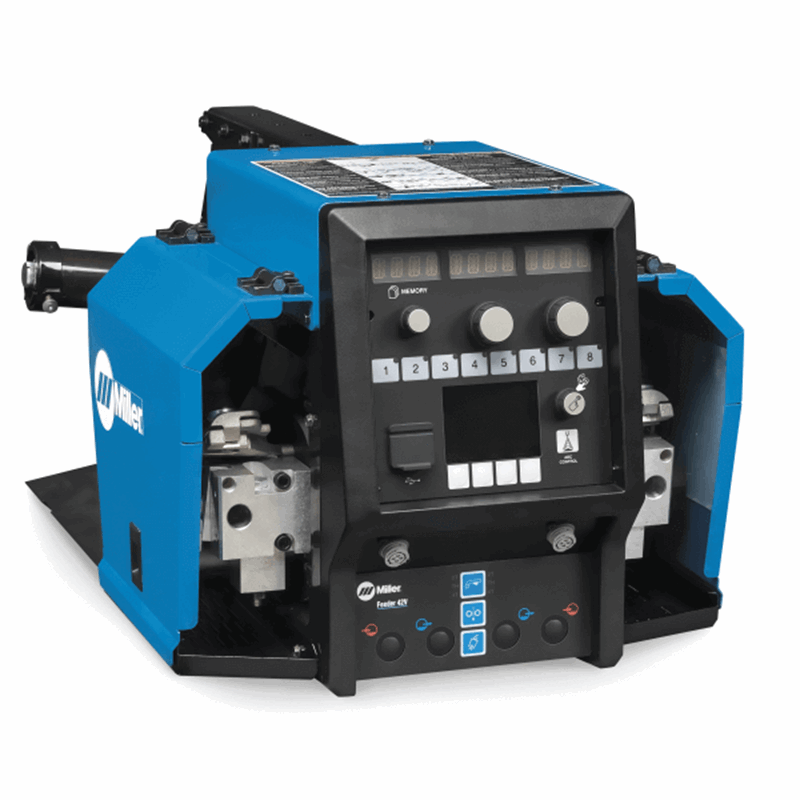

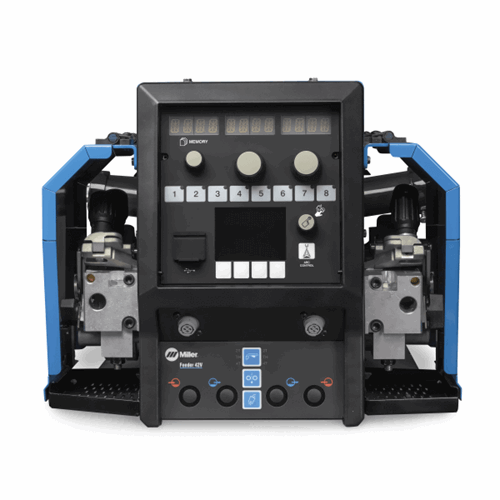

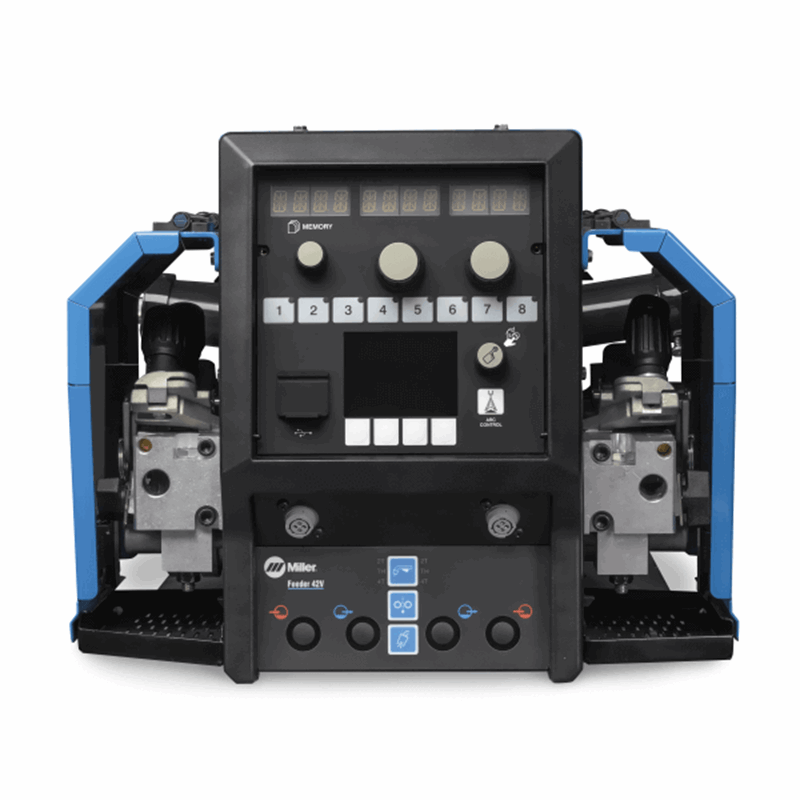

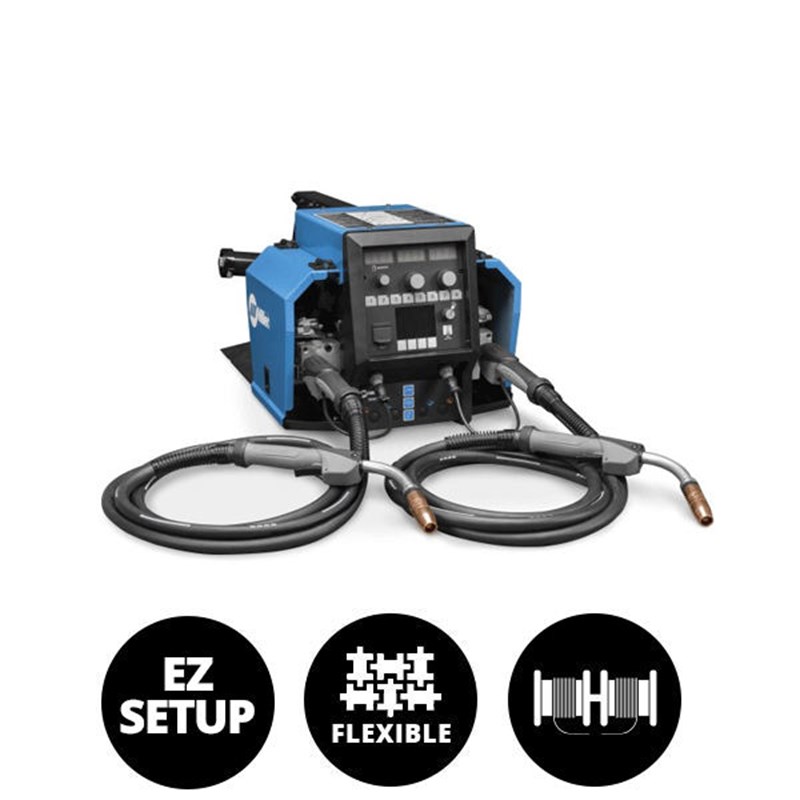

Miller Continuum™ Feeder (Dual) MIL951673001

Advanced, industrial wire feeder with Tru-Feed™ technology improves productivity through weld quality, ease of use and system flexibility. Designed for use with a Continuum power source.
AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!
Aligns gun perfectly in the drive-roll carrier — preventing the gun from being pulled loose and providing consistent wire feeding.
Provide more consistent wire feeding.
Provides faster response for the best arc starts with the least amount of spatter.
Common with other Miller industrial feeders (use existing, not new parts). Inlet guide installation is tool-less.
Feed wire in its truest and straightest form for better feedability, resulting in better welding performance.
Allows operator to rotate the drive, eliminating severe bends in the wire feed path. This extends gun-liner life and aids in feeding difficult wires.
Output Voltage Range: 10V - 44V
Input Power | Welding Power Source | Input Welding Circuit Rating | Wire Feed Speed | Wire Diameter Capacity | Maximum Spool Size Capacity | Dimensions | Net Weight |
50 VDC | Continuum 350 or 500 | 500 A at 100% duty cycle | 50-1,000 ipm (1.27 - 25.4 m/min.) | .035-5/64 in. (0.9-2 mm) |
18 in. (457 mm) 60 lb. (27 kg) |
Height: 13.81" Single W: 16.31" Dual W: 17"
|
Single 43 lb / 19.5 kg Dual 61.5 lb / 27.9 kg |
SHIPPING DIMENSIONS |
|
Height: | 26.00 Inches |
Width: | 25.00 Inches |
Length: | 30.00 Inches |
Weight: | 101 Lb(s) 8 Oz |
