Miller AlumaPower™ 350 MPa MIGRunner™ Package #951556
Part Number: 951556
Welding type:
MIG
Power supply:
220V Single Phase
220V 3 Phase
460V
Material type:
Documents
Videos
MIG Welding
Multi-Phase
220V
460V
3-Year Miller Warranty

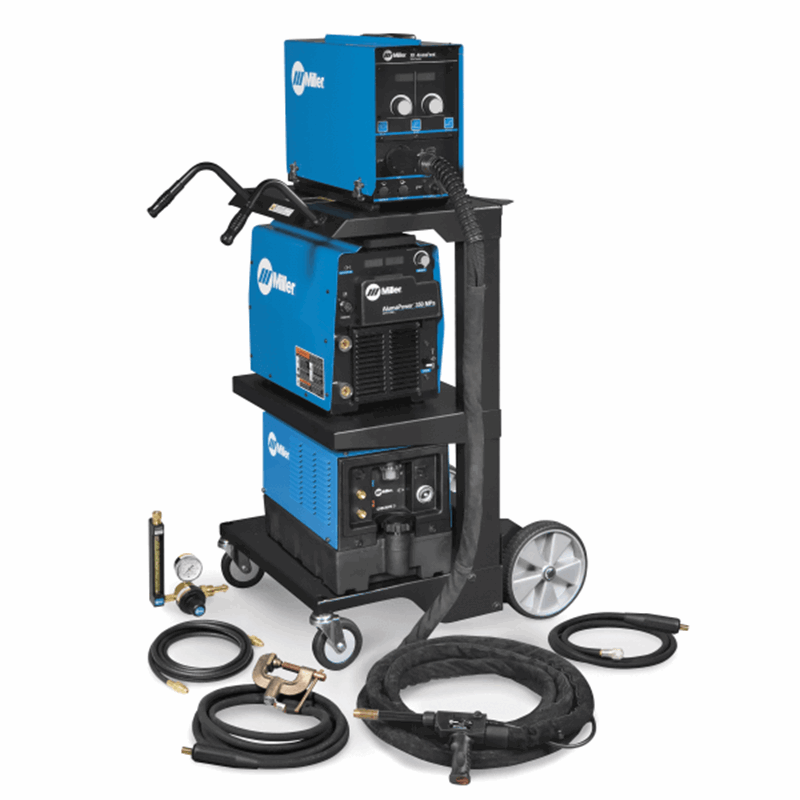

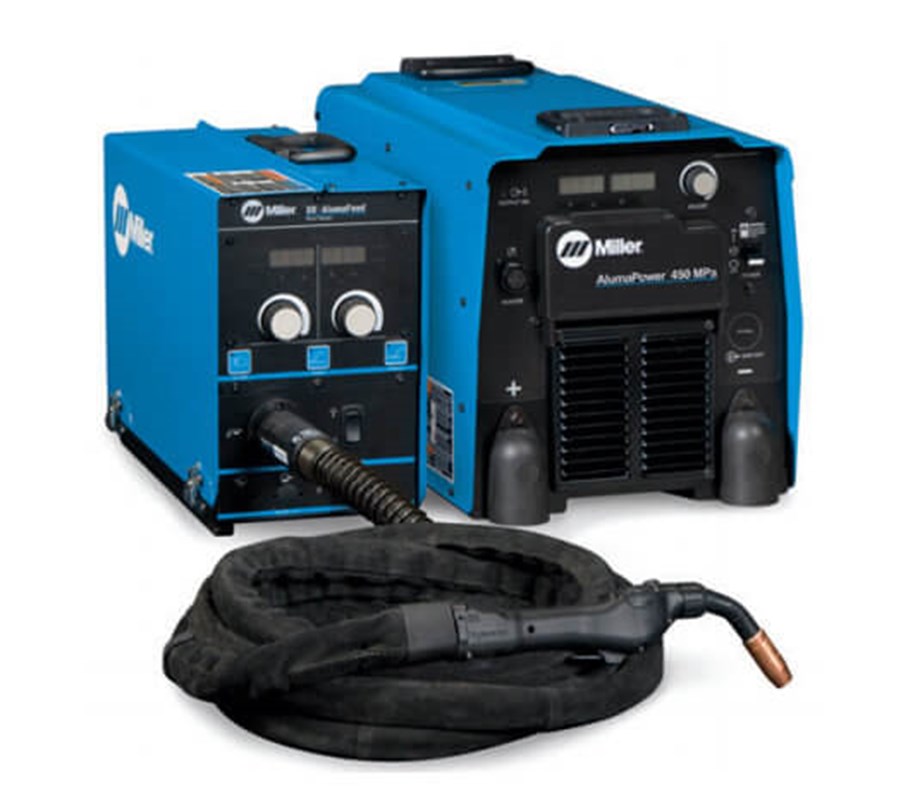

Miller AlumaPower™ 350 MPa, XR-AlumaFeed®, XR™-Pistol 30 ft. Water, MIGRunner™ Package
#951556
Dedicated aluminum system for the most advanced and optimized MIG and synergic Pulsed MIG welding.
What's Included:
- 4 gallons aluminum protecting coolant
- AlumaPower 350 Mpa
- Coolmate 3 water cooler
- Fast contact tips 3 each for .035 Al and 3/64 Al
- Gun and feeder drive rolls for .035-3/64 wires

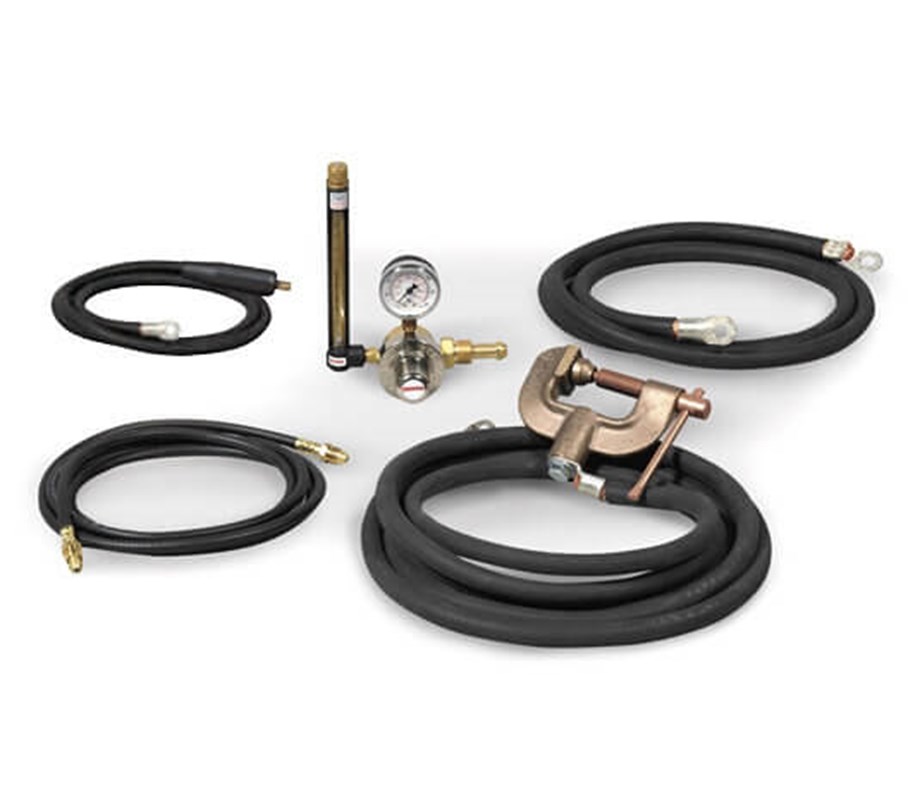

- Industrial 4/0 MIG kit with Dinse connectors
- MIGRunner Cart
- XR-AlumaFeed Feeder
- XR-W Pistol 30 ft.
View our full selection of Mig, Tig, Stick and Gas welders available online. Check out our safety equipment and plasma cutting machines for more great deals.
Other Versions of the Miller Dynasty® 400:
- 951151 - Miller AlumaPower Package with Air-Cooled Pistol and Cart
- 951147 - Miller AlumaPower Package with Air-Cooled Pistol
Related Packages:

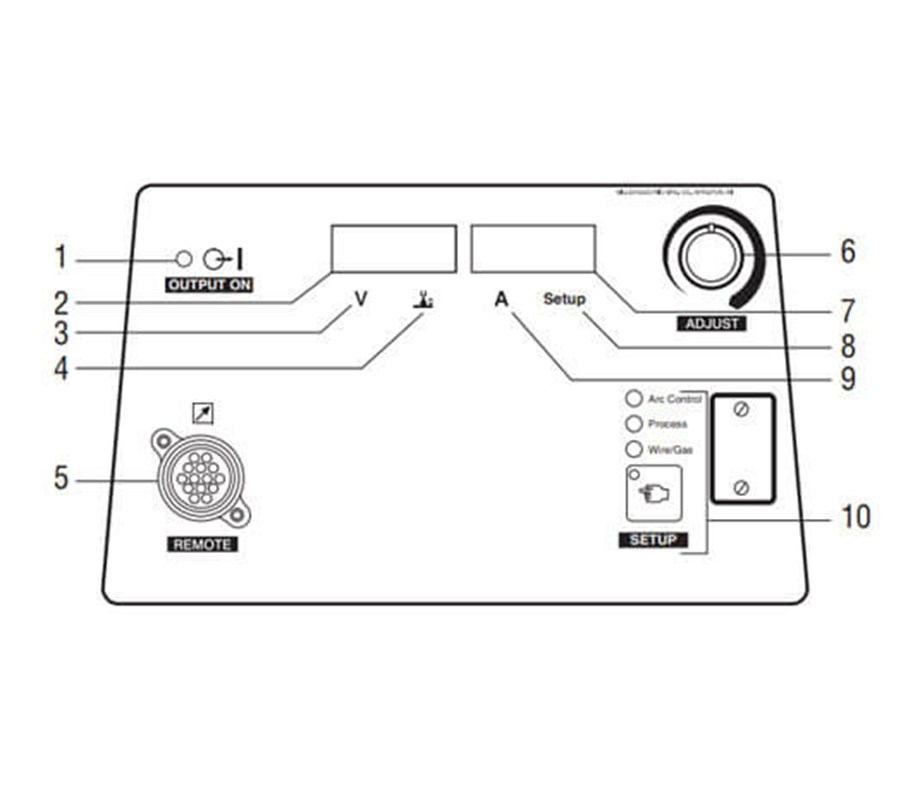

Miller AlumaPower™ 350 MPa MIGRunner™ #951556 Specs | |
|---|---|
| Input Voltage | 208–575 V |
| Input Phase | 3- or 1-phase |
| Input Hz | 50 / 60 Hz |
| Input Circuit Welding Rating | 400 A at 100% duty cycle |
| Rated Output | 3-phase: 350 A at 34 VDC, 60% duty cycle 1-phase: 300 A at 32 VDC, 60% duty cycle |
| Output Ranges | CC mode: 5–425 A CV mode: 10–38 V |
| Current Type | DC |
| Max Open Circuit Voltage | 75 VDC |
| Heavy Industrial Applications | Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing |
| Processes | Aluminum MIG (GMAW) Aluminum Pulsed MIG (GMAW-P) Aluminum Synergic Pulsed MIG (GMAW-P) |
| Width | 12.5 in. 318 mm) |
| Height | 17 in. (432 mm) |
| Length | 24 in. (610 mm) |
| Weight | 80 lb. (36.3 kg) |
| Portability | Handle(s) Running Gear / Cart (Standard) Running Gear / Cart (Optional) |
| Warranty | 3 Years - Miller's True Blue Warranty |

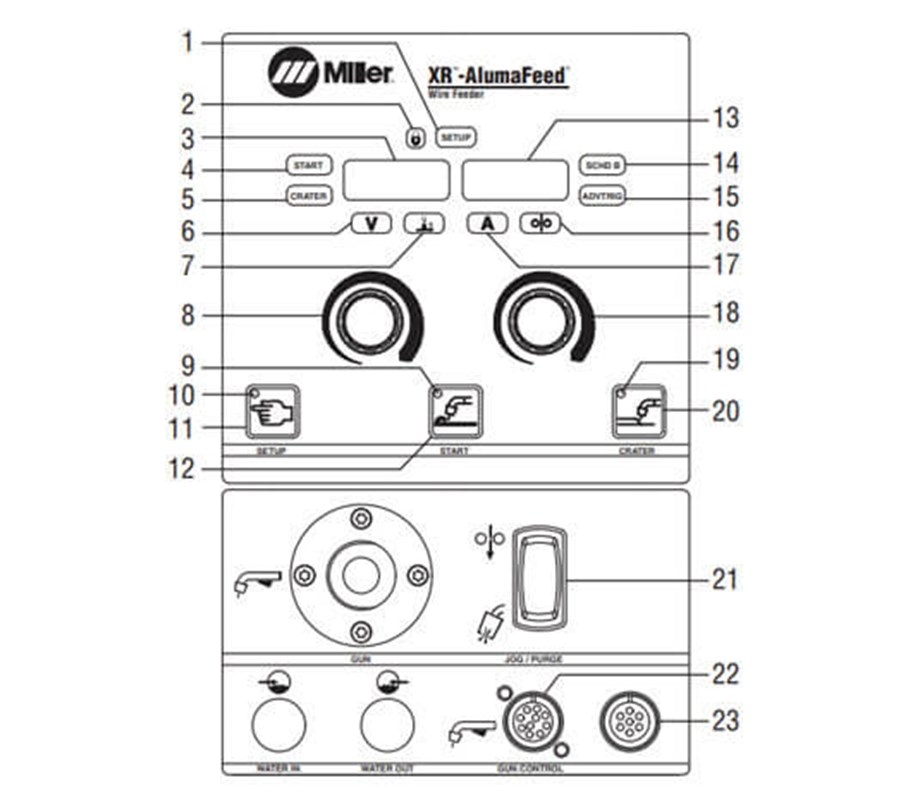

Miller XR-Alumafeed™ Specs | |
|---|---|
| Input Power | 24 VAC |
| Input Amperage | 5 A |
| Input Hz | 50 / 60 Hz |
| Input Circuit Welding Rating | 400 A at 38 VDC, 100% duty cycle System duty cycle is limited to gun rating |
| Power Source Compatability | CC/CV, DC |
| Welding Power Source Type | CC/CV |
| Wire Feed Speed | 50–900 ipm (1.3–22.9 m/min.) |
| Wire Type and Diameter Capacity | Aluminum: .035–.062 in. (0.9–1.6 mm) Solid Wire: .035–.045 in. (0.9–1.2 mm) |
| Maximum Spool Size | 12 in. (305 mm) |
| Width | 23 in. (584 mm)] |
| Height | 16 in. (406 mm) |
| Length | 21.25 in. (540 mm) |
| Weight | 42.5 lb. (19.3 kg) |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Warranty | 3 Years - Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 26.00 Inches |
| Width: | 32.00 Inches |
| Length: | 52.00 Inches |
| Weight: | 370 Lb(s) 0 Oz |
Consumables
Product Questions and Answers
Q - What is the maximum thickness of aluminum this machine is capable of welding?
A - It can weld up to 1" aluminum
Q - Is a spool gun included?
A - A spool gun is not included with this machine.
