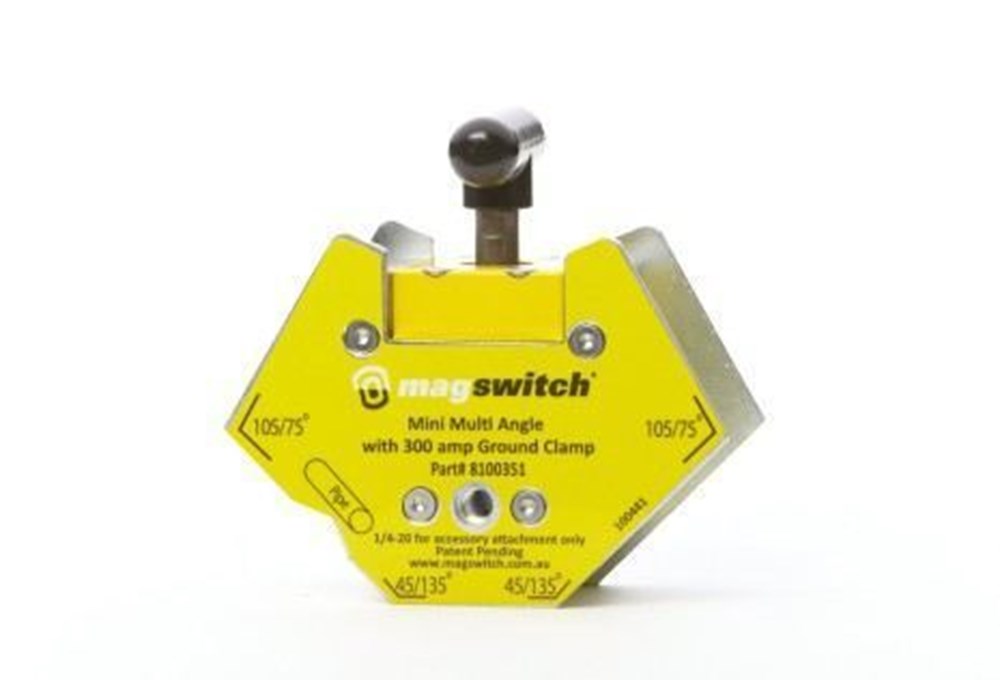

Magswitch Mini Multi Angle W/300 Amp Ground #8100351
Get the safety of grounding without having to attach tabs or create a structure to do so with an added bonus of getting the perfect angle at the same time with the Magswitch multipurpose Mini Angle with 300 Amp Ground (8100351).This magnet holds securely to rounded or flat metals and gives you the perfect, 45, 60, 90, and or 120° weld imaginable by way of it fitting into these hard to reach angles because of their small size as well as being completely adjustable without having to fight the magnetism with them being powered on or off with the simple turn of the knob. Allowing for the magnet to be placed exactly where and how you would like them to be. With the added bonus of being secure in the knowledge that you are now safe from shock while welding due to simply placing it as you need for the angle. For it protects you by grounding the metal it is attached to with connections of 3/8*16 and ¼*20, and as an added bonus to you these units are easily maintained and cleaned with the metal shards and debris falling away as soon as they are powered off.
Shop all welders supply quality clamps, hand tools or work benches.
Watch a video about this product:
Specifications: |
|
Magnet Strength | 150 lbs/67 kg |
Full Saturation Thickness | 11 g / 3.05 mm |
2:1 Shear Working Load | 6 lbs / 2.7 kg |
Net Weight | 1.1 lbs/0.5 kg |
Overall Height | 3.4 in/87 mm |
Magnetic Pole Footprint | 90.5 mm x 44 mm |
