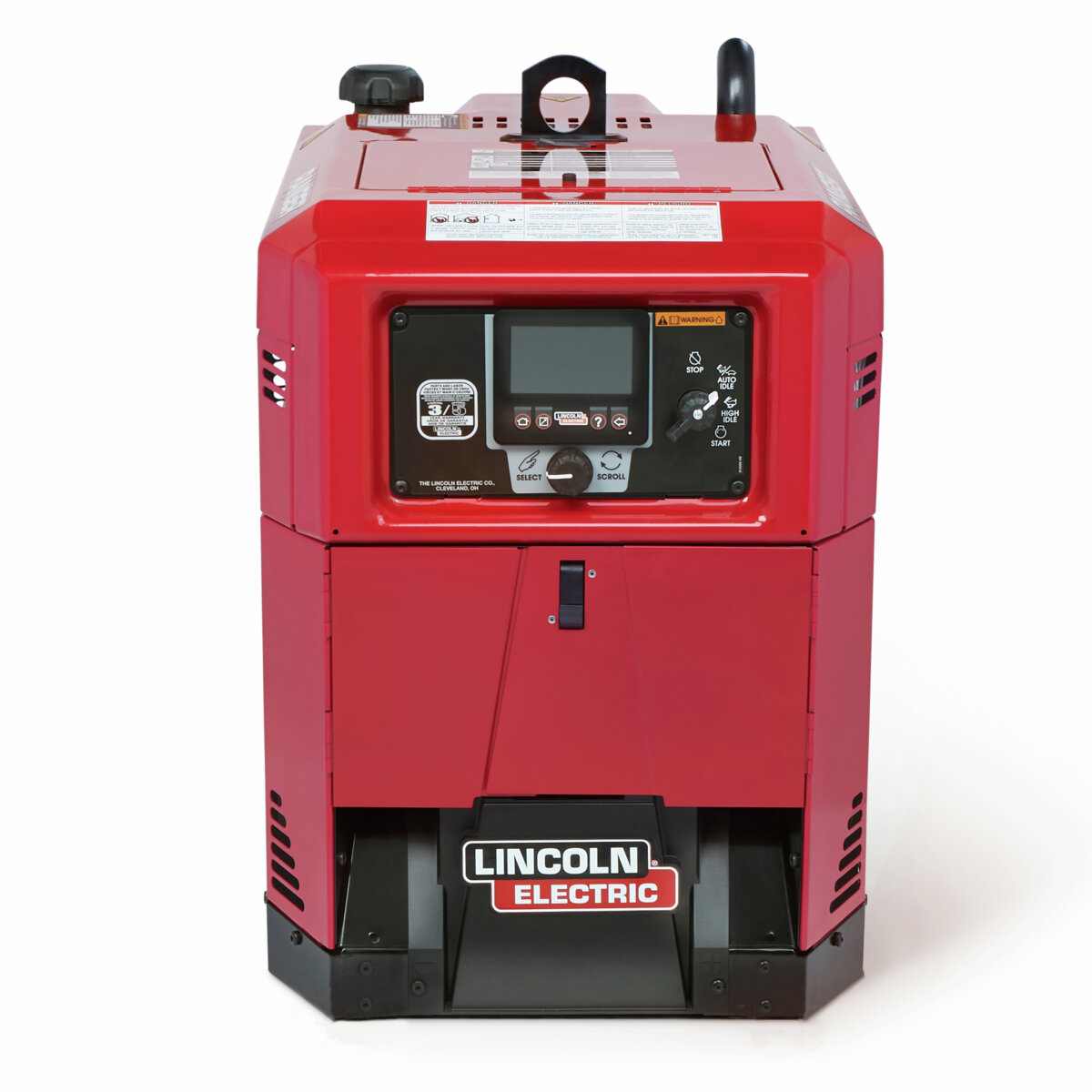

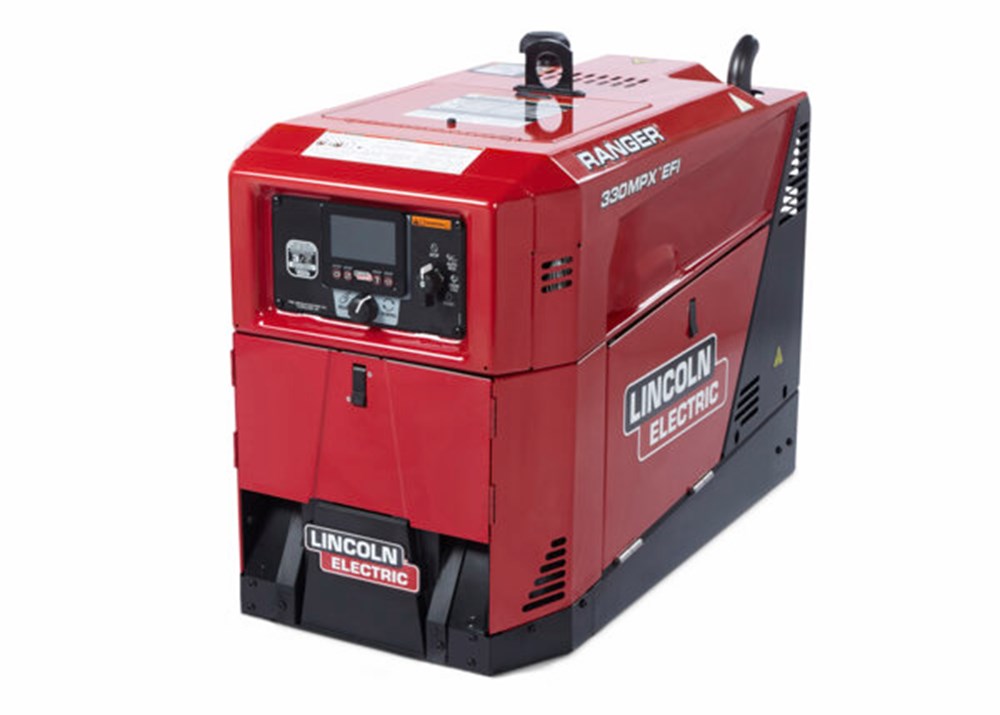

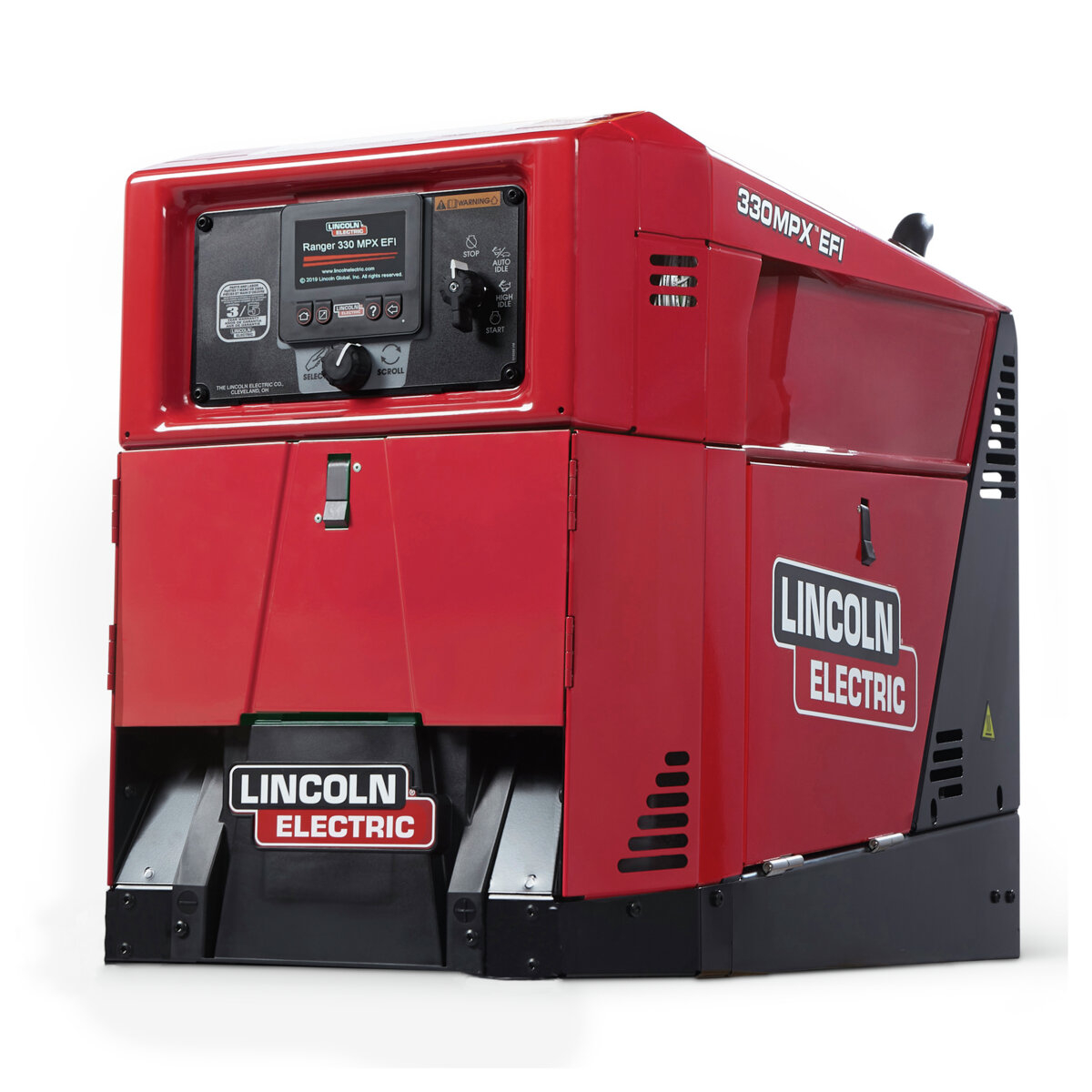

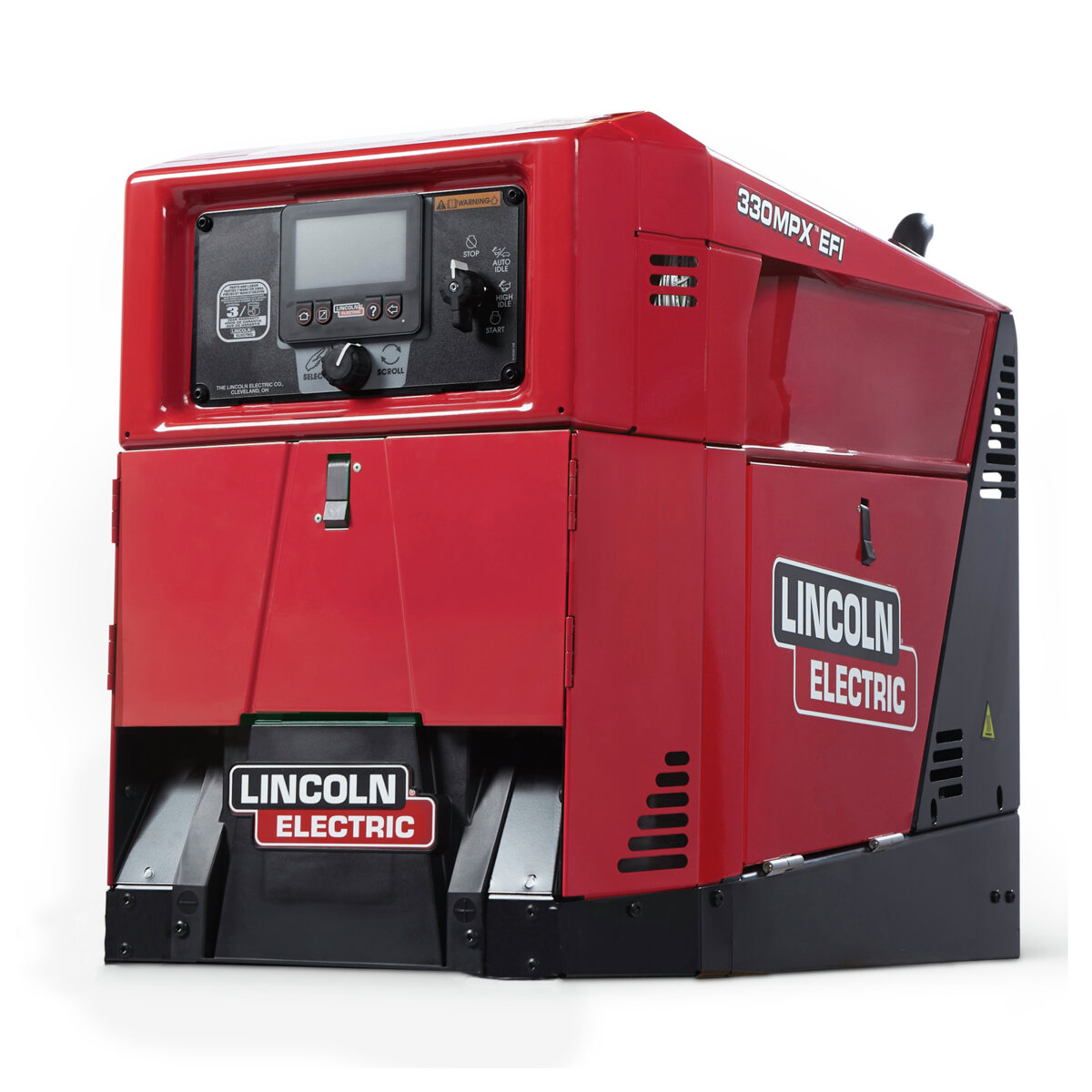

Lincoln Ranger® 330MPX™ EFI Engine Driven Welder (Kohler®) #K4779-1
Compact. Smart. Quality.
Built for the professional welder and designed by the experts at Lincoln Electric, the Ranger 330MPX EFI engine-driven welder is a multi-process welder and AC power generator. Running on a professional grade Kohler OHV command ECH740 engine, the Ranger 330MPX is a powerhouse welder and generator. It gives you 10,000 watts of continuous power and has a huge 11-gallon fuel tank. It can handle stick, gauging, TIG, MIG, and flux-cored SS/GS welding processes. Take advantage of the exclusive features on this machine for perfect welds every time. It is a heavy machine and not easily portable without a cart, making it perfect for use either at the shop or on the job site where you won’t need to move it. With the features and design advantages in place, this machine has applications in construction, structural welding/fabrication, field erection, and more.
Features of the Ranger® 330MPX™ EFI
- 25 HP EFI (Electronic Fuel Injection) Engine provides consistent operations on the jobsite
- Compact Size
- Low Decibel Rating
- Easy-to-use Digital User Interface
- Clean AC generator output to power up sensitive electronics
- Advanced technology to improve weld performance and productivity
SMALLER
The Ranger 330MPX EFI welder/generator has up to a 20 percent smaller footprint and is up to 25 percent lighter than other machines in its class. It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site.
SMARTER
The Ranger 330MPX EFI welder/generator's digital user interface offers a suite of advanced technology that improves weld performance and productivity.
QUIETER
The Ranger 330MPX EFI welder/generator is up to 60% quieter than other machines in its class to enhance safety and comfort in the workplace.
Performance Boosting Technology
- Quick Setup with Ready.Set.Weld®
- ArcFX™ Technology
- CrossLinc™ Technology
- The Chopper Technology®
High Quality Operation
- Clean AC generator with 10 kW of continuous power
- Plenty of power at 330A/28V for 100% duty cycle to weld 1/4 in. 7018 electrode
- The Magnum PRO 250 LX GT Direct Connect Spool Gun
- Arc gouging capabilities up to 3/16" carbon electrode
Shop all engine driven welders and welding safety equipment available online from Welders Supply.
Lincoln Ranger® 330MPX™ EFI #K4779-1 Specifications | |
---|---|
Engine |
Gasoline Kohler® OHV Command ECH740 25 HP 2 Cylinder Air-Cooled |
Single phase auxiliary output | 10,000 Watts Continuous, 120/240V, 60 Hz |
Fuel tank size | 11 gal (41.6 L) |
Welding processes | Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) |
Typical applications | Construction Construction & Field Erection General Fabrication Maintenance & Repair Repair Welding Structural Fabrication Structural Welding |
SHIPPING DIMENSIONS |
|
Height: | 26.00 Inches |
Width: | 20.00 Inches |
Length: | 36.00 Inches |
Weight: | 446 Lb(s) 0 Oz |
