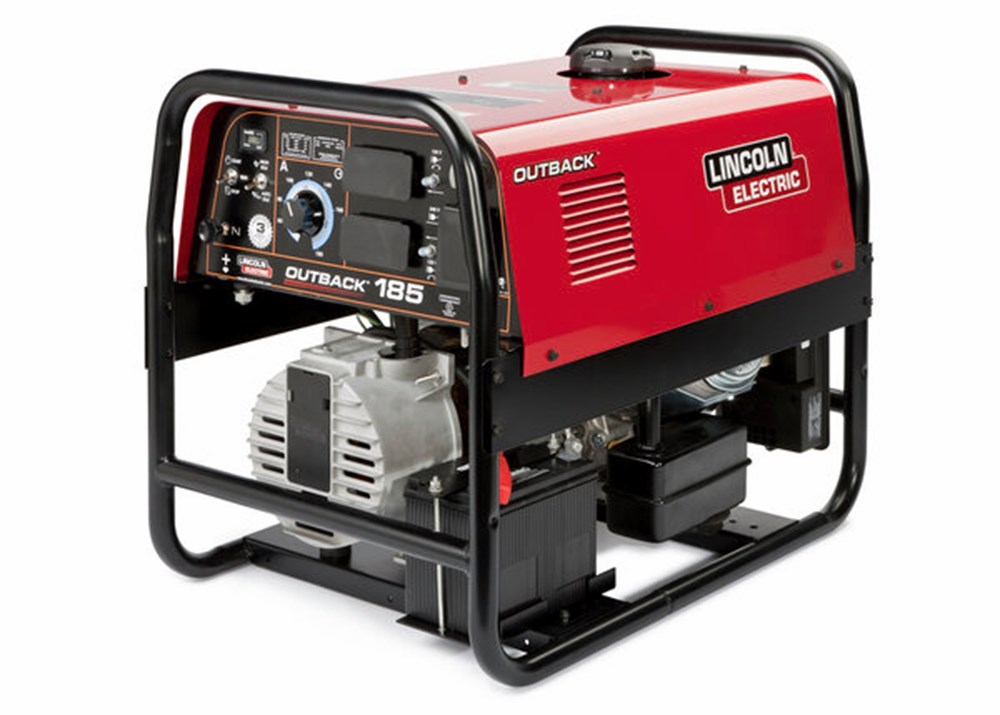

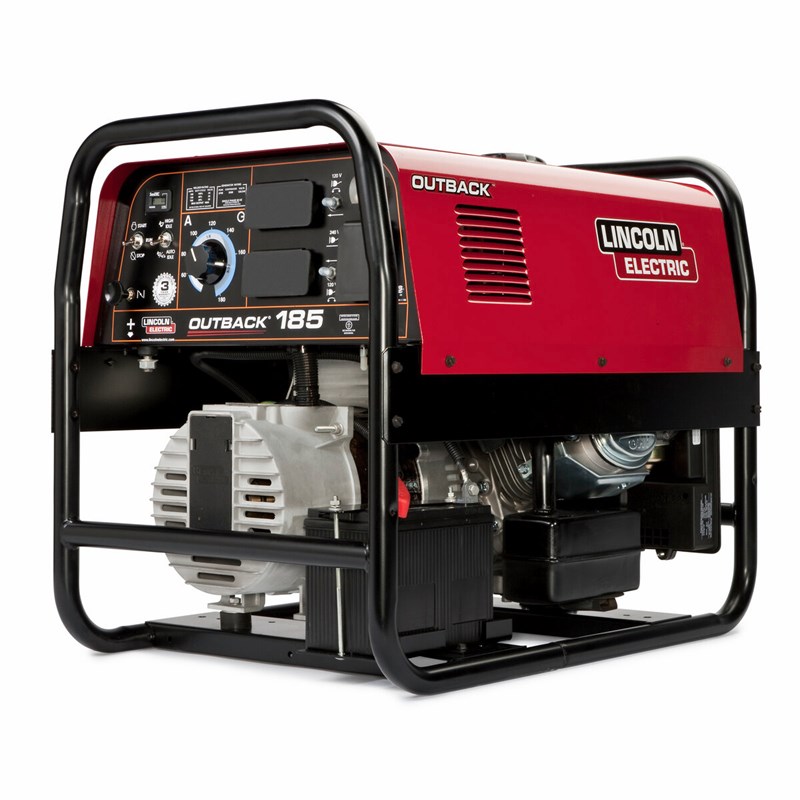

Lincoln Outback® 185 Engine Driven Welder (Kohler®), Engine Driven Welder #K2706-2
Rugged and Reliable Portable Welder
The Lincoln Electric Outback 185 Engine Driven Welder is a beast of a machine that gives you a portable DC stick welder and AC power generator that is great for the outdoors. Jam-packed with features and designed with the professional welder in mind, the Outback 185 gives you an advantage for tough projects. With a classic Lincoln Electric design you get features like the Low-Lift grab bars on both ends of the machine, meaning you won’t break a sweat lifting it on and off of truck beds.
Take your Stick welding to the next level with the Outback 185. The compact design features all the engine controls on the front making it just as easy to start as it is to weld. The huge 6.8-gallon fuel tank gives you extended run times and allows you to generate power for a variety of applications. Take on more tasks with the ability to plug in a Power MIG 140C/180C for wire welding. This machine is perfect for work in general fabrication as well as maintenance and repair and has you covered for all your DC welding and AC power generation needs.
Features of the Outback® 185
- Low-Lift™ Grab Bars More leverage for lifting unit on and off truck beds.
- Extra protection against product damage. Best in class feature!

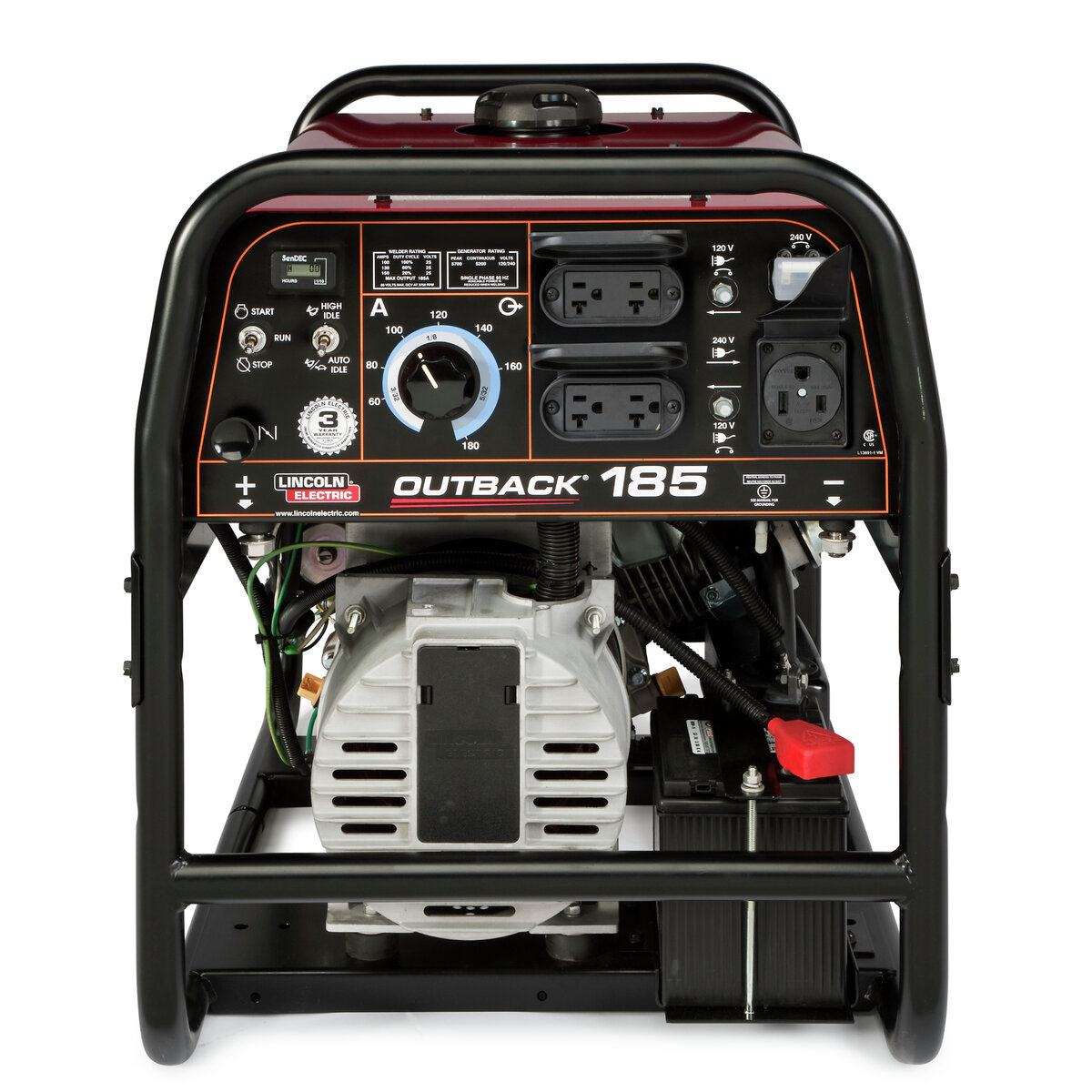

- All Engine Controls on Front Control Panel Easy access for starting, especially when mounted on truck beds.
- Front panel includes electric start switch and engine choke control. Best in class feature!
- 1-1/4 in. (32 mm) Diameter Rugged Tube Frame Great for all-around sturdy protection.Best in class feature!
- 6.8 Gallon (25.7 Liter) Fuel Tank Less frequent re-fueling, for extended run times.
- Large fuel fill opening for easy re-fueling too!<br/lili> Best in class feature!
- Weld with up to 5/32 in. (4 mm) Stick Electrode Up to 185 amps of DC output for many applications.
- 5,700 Watts Peak AC Generator Power (5,200 Watts Continuous).
- Many uses! Grinder, work lights, pump, motor starting, or emergency power.
- Plug in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding.
- Plug in a Lincoln Electric Tomahawk® 375 Air to cut metal.
Shop all engine driven welders and welding safety equipment available online from Welders Supply.
Lincoln Outback® 185 #K2706-2 Specifications | |
---|---|
Engine |

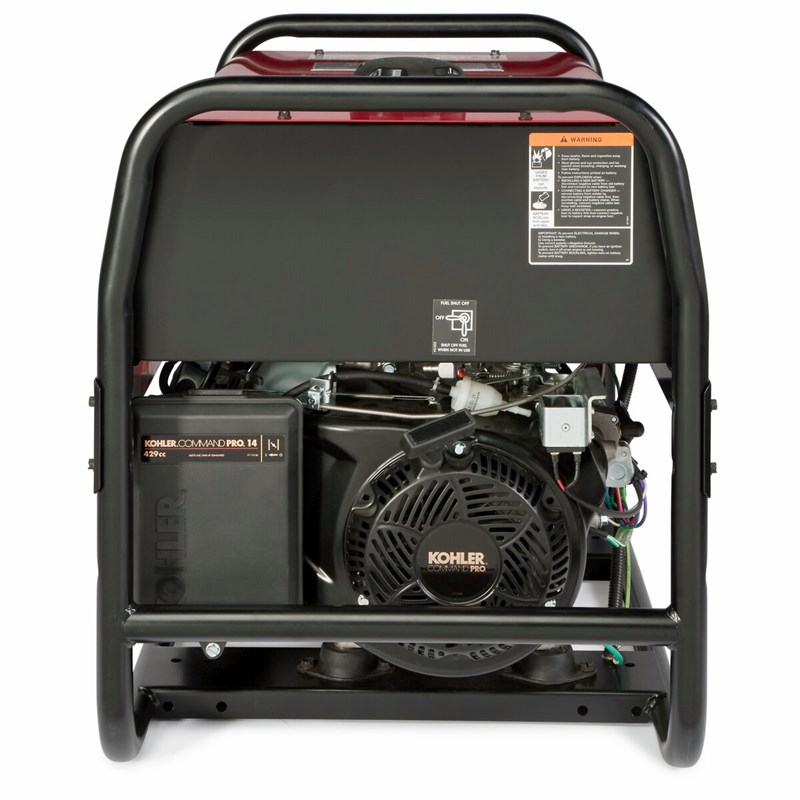

Gasoline Kohler® CH440 14 HP 1 Cylinder Air Cooled |
Single phase auxiliary output |
5,200 Watts Continuous, 120/240V, 60 Hz |
Fuel tank size | 6.8 gal (25.7 L) |
Welding processes | Stick (SMAW) |
Typical applications | General Fabrication Maintenance & Repair Repair Welding |
SHIPPING DIMENSIONS |
|
Height: | 25.60 Inches |
Width: | 21.80 Inches |
Length: | 31.50 Inches |
Weight: | 295 Lb(s) 0 Oz |
