ESAB HandyArc 1/8 Stick Welder with Accessories

ESAB HandyArc 1/8 Stick Welder (120/240 V, 1PH) #ESA0700734012

Name: ESAB HandyArc 1/8 Stick Welder (120/240 V, 1PH) #ESA0700734012
Brand: ESAB
SKU: ESA0700734012

Part Number: 700734012

$195.00 $226.46*

SAVE $31.46

Features
Specs
Documents
Consumables
FAQS

ESAB HandyArc ⅛ Stick Welding Machine (120/240 V, 1PH) #ESA0700734012

ESAB's Most Affordable Stick Welder

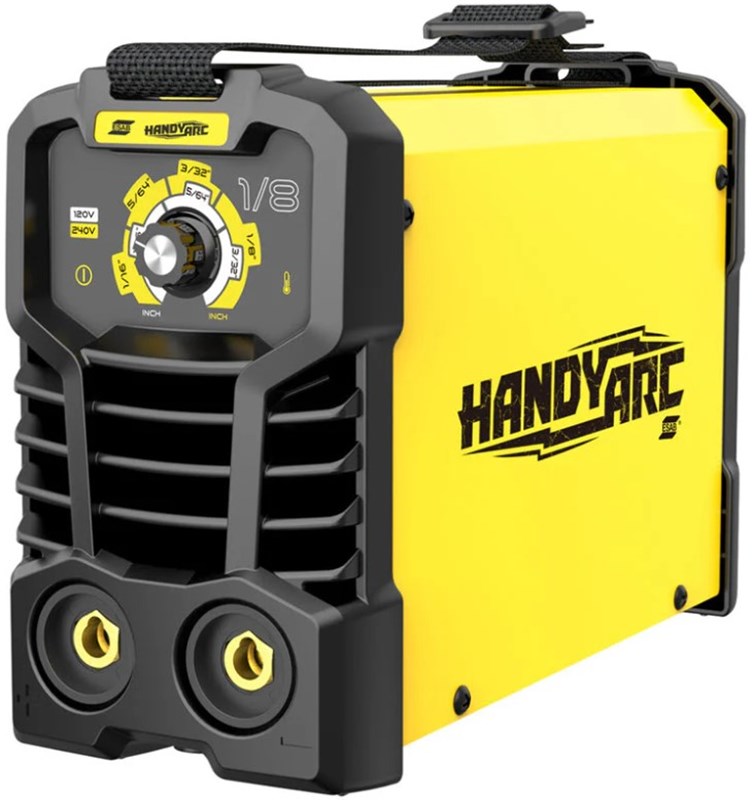

The new ESAB HandyArc 1/8 Stick Welder delivers portable, energy-efficient performance in a compact design. Featuring dual-voltage capability (120/240V), the HandyArc 1/8 adapts to various power sources for added versatility. A rugged housing enhances durability, while the included shoulder strap makes transport easy for welders on the go.

Highlights

Energy Efficiency: The high-efficiency inverter reduces energy consumption for cost-effective operation.
User-Friendly Design: Simple controls and an intuitive interface make it easy to use, even for beginners.
Superior Welding Performance: Delivers excellent arc starts and supports 6013-type electrodes for versatility.
Quality Accessories: Includes durable welding components for reliable performance.
Affordable Reliability: A cost-effective solution backed by ESAB’s trusted durability.

Industries

Hobbyists
Repair & Maintenance
Training Schools

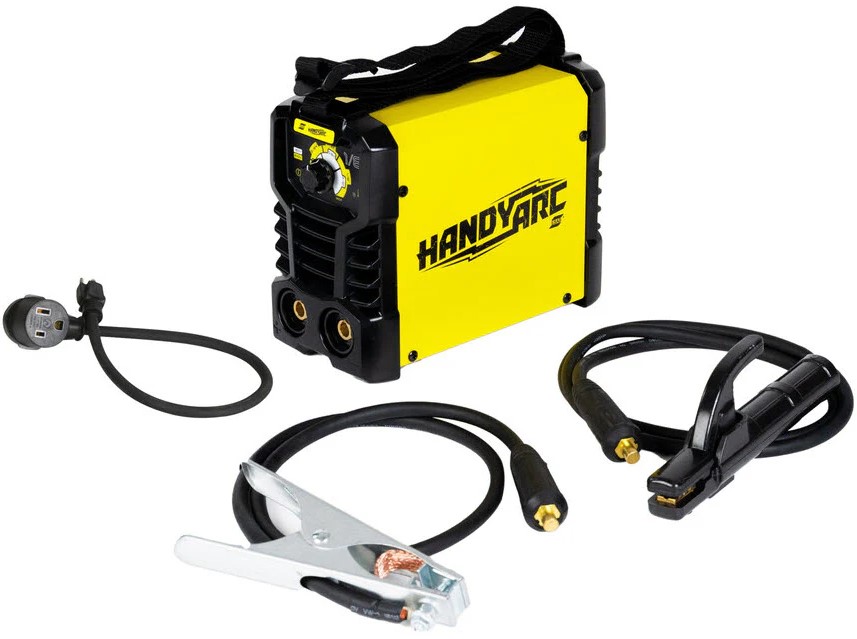

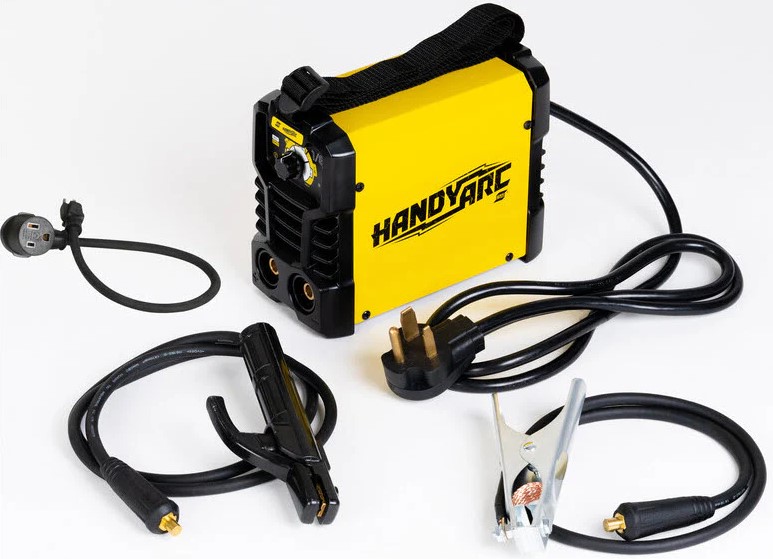

What’s Included

HandyArc 1/8 Stick Welder Power Source
Shoulder Strap
Electrode Holder, HandyArc 1/8, 16mm^², 1.5 m (5 ft)
Ground Clamp, HandyArc 1/8, 16mm^², 1 m (3.3 ft)
230V to 120V Power Adaptor

Benefits of the HandyArc 1/8 Stick Welder

Energy-efficient Inverter minimizes power consumption without compromising performance.
Versatile power options with dual-voltage capability (120/240V) for flexible use.
A lightweight build makes the HandyArc 1/8 easy to carry and store.
Rugged construction withstands demanding environments for long-term reliability.

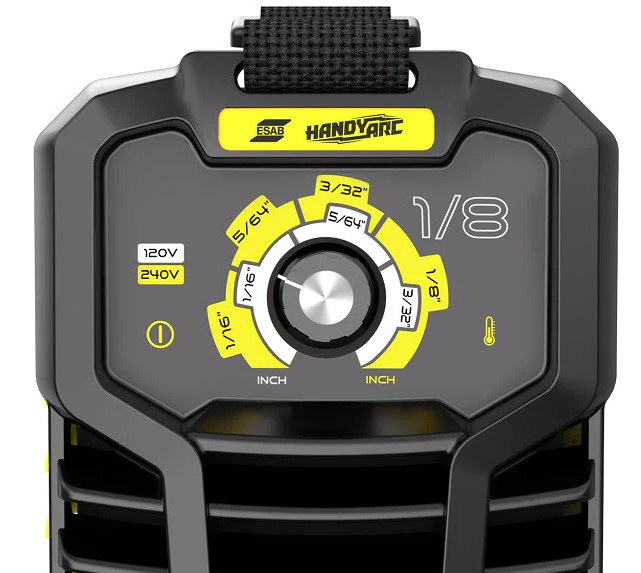

Straightforward controls provide a smooth welding experience for all skill levels.
The portable design includes a shoulder strap for added convenience.

Fast, Free Shipping & Easy Returns

Your in-stock items ship the same or next day from our five distribution hubs in WI and IL via UPS Ground. Need special shipping? Just call 1-844-682-0205 for accommodations, including our use of your shipping accounts. Enjoy hassle-free 14-day returns on new, sealed products with a pre-approval. Count on exceptional service backed by industry-leading shipping and return policies. Experience the advantage on your next order!

Check out our selection of stick welders from ESAB and other great brands.

Specifications - ESAB HandyArc 1/8 Stick Welder
Model	HandyArc 1/8
Mains Voltage	120/240 VAC ± 10%, 1 Φ, 50/60 Hz
Fuse Slow	15 A
Rated kVA	4.5 kVA (120 VAC) 8.0 kVA (240 VAC)
Welding Output SMAW	120 VAC: 70 A / 22.8 V at 20% 41 A / 21.7 V at 60% 32 A / 21.3 V at 100% 240 VAC: 160 A / 28.4 V at 15% 80 A / 23.2 V at 60% 82 A / 22.5 V at 100%
Setting Range SMAW	15 - 70 A (120 VAC), 15 - 180 A (240 VAC)
Efficiency at maximum current	83%
Open Circuit VDC High	80.5 VDC (120 V), 80.5 VDC (240 V)
Enclosure Class	IP21S
Operating Temperature	-10 to +40 °C (+14 to +104 °F)
Supply Plug	NEMA 6-50P, NEMA 5-15P adaptor
