Miller Syncrowave 250DX Package AC/DC Tig/Stick Water Cooled package #951117
Part Number: 951117
Welding type:
TIG
Power supply:
220V Single Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
MIG Welding
Stick Welding
TIG Welding
Single Phase
220V
460V
3-Year Power Warranty
Miller Syncrowave 250DX TIGRunner Welder #951117
**DISCONTINUED - Replaced by #907782**
The Miller Syncrowave 250DX Welder is a proven TIG welder for the most demanding applications, including precision metal fabrication, light and heavy manufacturing, aerospace and shipbuilding.

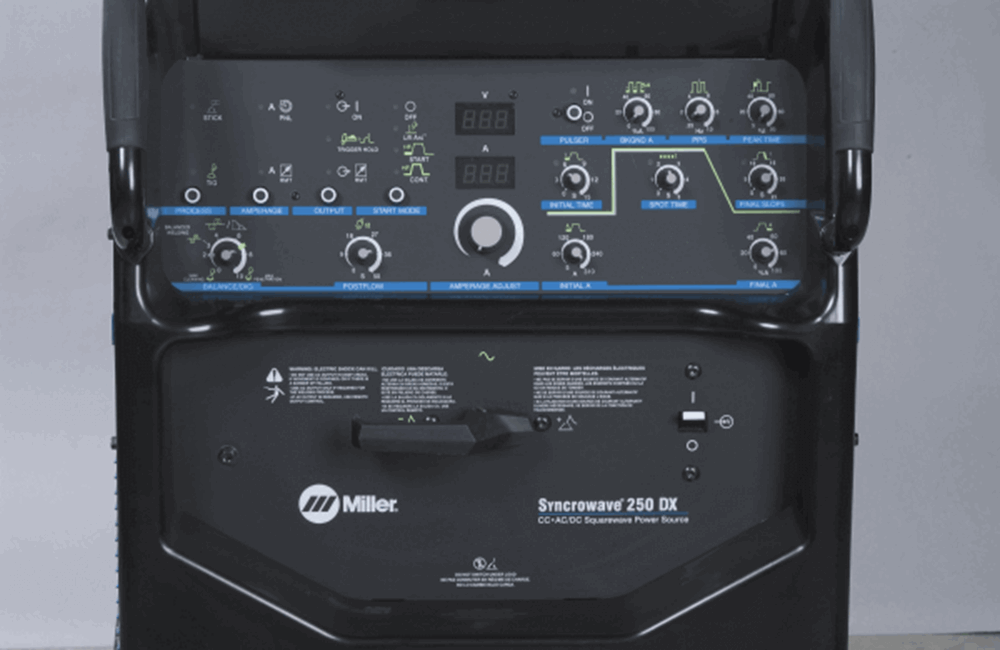

The 250DX features Squarewave technology for arc stability when welding aluminum, effectively eliminating arc rectification and preventing tungsten erosion. Miller's Syncro Start allows the choice of Soft, Standard or Hot TIG starts, depending on your application, lead length and tungsten size. This welder also features last procedure recall. This simplifies changing your Syncrowave back and forth between aluminum TIG to stainless TIG or Stick welding. To ensure greater accuracy and repeatability of your welding procedures, the amperage, voltage and preset values are digitally displayed. And for good arc strikes with no sticking, the 250 DX has Miller's Adaptive Hot Start.
Processes
- TIG (GTAW)
- Pulsed TIG (GTAW-P)(optional)
- Stick (SMAW)
Industrial Applications
- Precision Metal Fabrication
- Maintenance and Repair
- Light and Heavy Manufacturing
- Fabrication
- Aerospace
- Shipbuilding
- Tube and Pipe
- Automotive
- Vocational

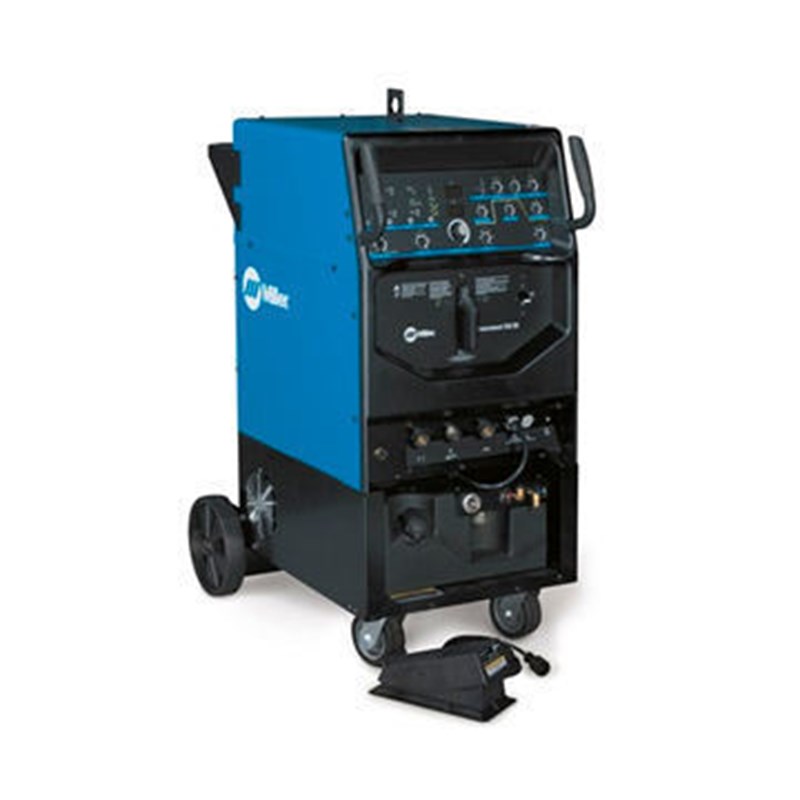

Syncrowave 250 DX Complete INCLUDES:

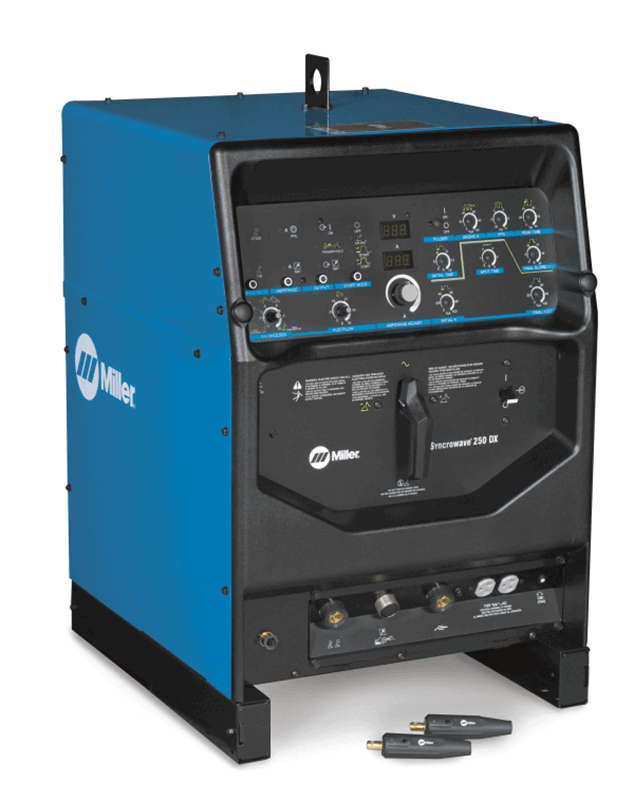

- Syncrowave 250 DX power source
- (2) Dinse 50 mm connectors
- No. 37 Running Gear
- CoolmateTM 3.5 Cooler
- Coolant (4 gallons)

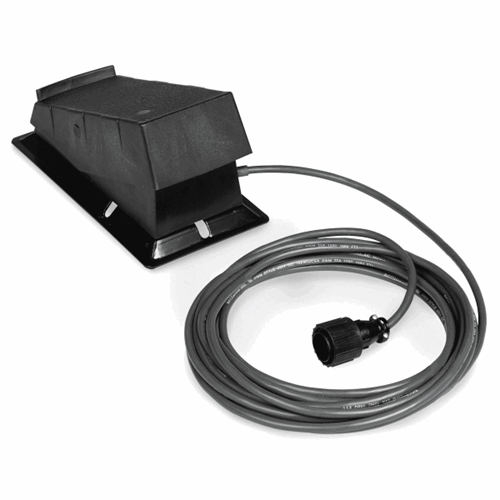

- RFCS-14 remote foot control
- 25 ft (7.6 m) Weldcraft® WP20
water-cooled torch - Torch accesory kit with tungsten
- Sheilding Cups
- Collets-1/16, 3/32, 1/8
- Collet Bodies-1/16, 3/32, 1/8
- 2% Cerium Tungsten-1/16, 3/32, 1/8
- 15 ft (4.6 m) work lead w/clamp
- Gas hose
- Regulator/flowmeter
- Cable cover
For the best prices on Miller welders, TIG welding machines, and welding safety equipment, shop Welders Supply.
Other Versions of the Miller Syncrowave 250DX:
Miller Syncrowave 250DX #951117 Specifications: | |
|---|---|
| Input Voltage Options | 230/460/575 V |
| Input Hz Range | 50 / 60 Hz |
| Input Phase | 1-phase |
| Current Type | AC / DC |

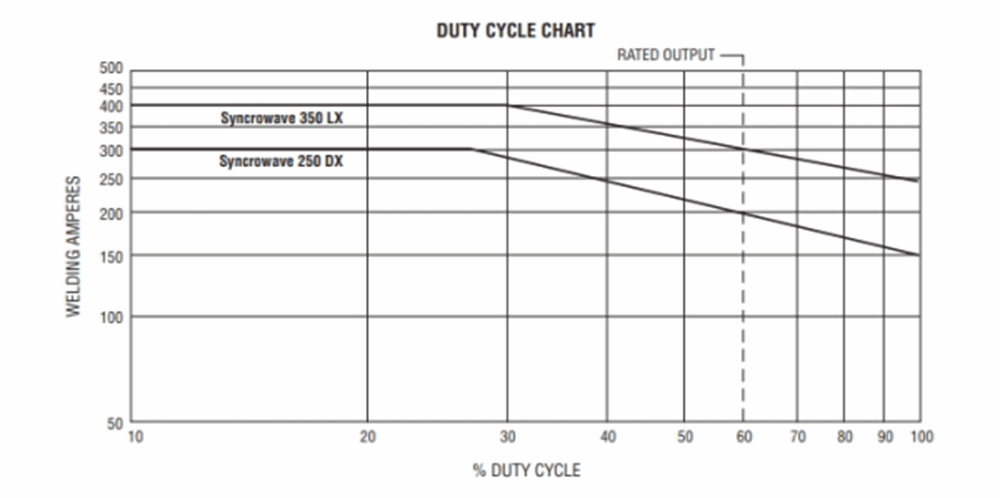

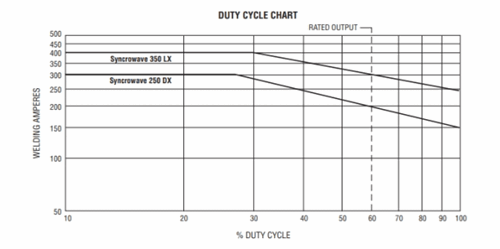

| Rated Output | 250 A at 30 VAC, 40% Duty Cycle, 60 Hz 225 A at 29 VAC, 40% Duty Cycle, 50 Hz |
| Weld Output | CC |
| Amperage Range | 3–310 A |
| Maximum Open Current Voltage | 80 VDC |
| Material Thickness | Steel: 0.012 in. (0.3 mm) - 1/2 in. (12.7 mm) Aluminum: 0.015 in. (0.4 mm) - 3/8 in. (9.5 mm) |
| Weldable Metals | Aluminum Steel Stainless Steel |
| Processes | Stick (SMAW) TIG (GTAW) TIG AC (GTAW-AC) TIG DC (GTAW-DC) Pulsed TIG (GTAW-P, optional) Air Carbon Arc (CAC-A) |
| Light Industrial Applications | Precision Metal Fabrication Maintenance and Repair Aerospace Tube and Pipe Racing / Customizing / Restoring Construction DIY / Home Hobbyist Farm and Ranch Infrastructure Manufacturing Metal Art / Sculptures Boat / Yacht High Purity Processing |
| Net Width | 28.5 in. (724 mm) |
| Net Height | 46 in. (1168 mm) |
| Net Length | 40.5 in. (1029 mm) |
| Net Weight | 478 lb. (217 kg) |
| Portability | Lift Eye (Standard) Running Gear / Cart (Standard) |
| Warranty | 3 years - Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 29.00 Inches |
| Width: | 41.00 Inches |
| Length: | 51.00 Inches |
| Weight: | 583 Lb(s) 0 Oz |
Accessories
Consumables
1 reviews found
Customer Reviews Write a Review
Robert C.
Outstanding service and support
Reviewed on 9/1/2020
This is my first time purchasing from Welders supply, and not the last.
Katelyn was very helpful and fast to get answers to my questions.
Great customer service, and great prices
Product Questions and Answers
Q - Does the Power Factor Correction Kit reduce amperage?
A - Yes, it will reduce primary amperage by about 25% when running 230 V.
Q - Will this stick weld?
A - Yes.
How to make TIG connections:
- Connect gas hose.
Connect gas hose from gas supply to gas in fitting.
- Output selector switch.
Switch is shown in DCEN for TIG HF Impulse welding. For TIG AC, place switch in AC position.
- Weld Output Terminal.
Connect work lead to work weld output terminal.
- Remote 14 receptacle.
Connect desired remote control to Remote 14 receptacle.
- Connect TIG torch.
Connect TIG torch to electrode weld output terminal.
- Connect gas hose.
Connect torch gas hose to gas out fitting.
