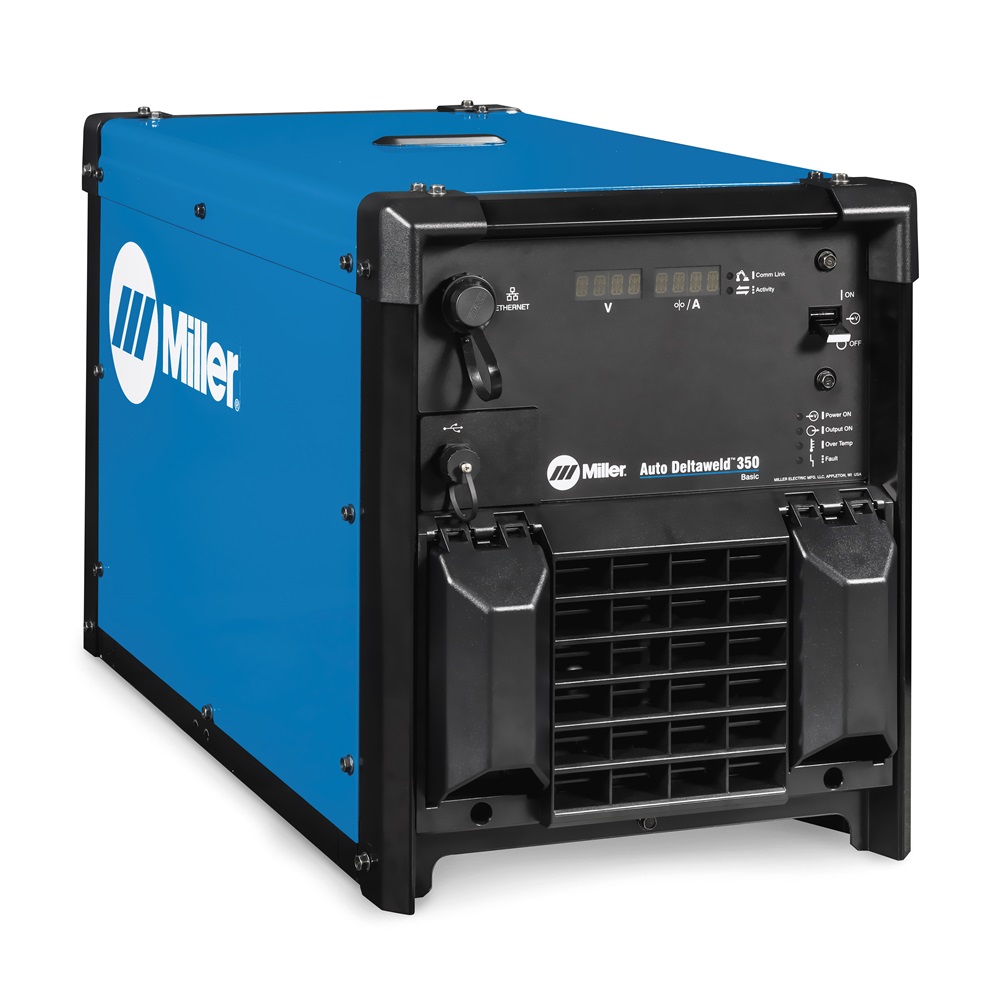

Miller Auto Deltaweld™ 350 Automated MIG Welding System #907862

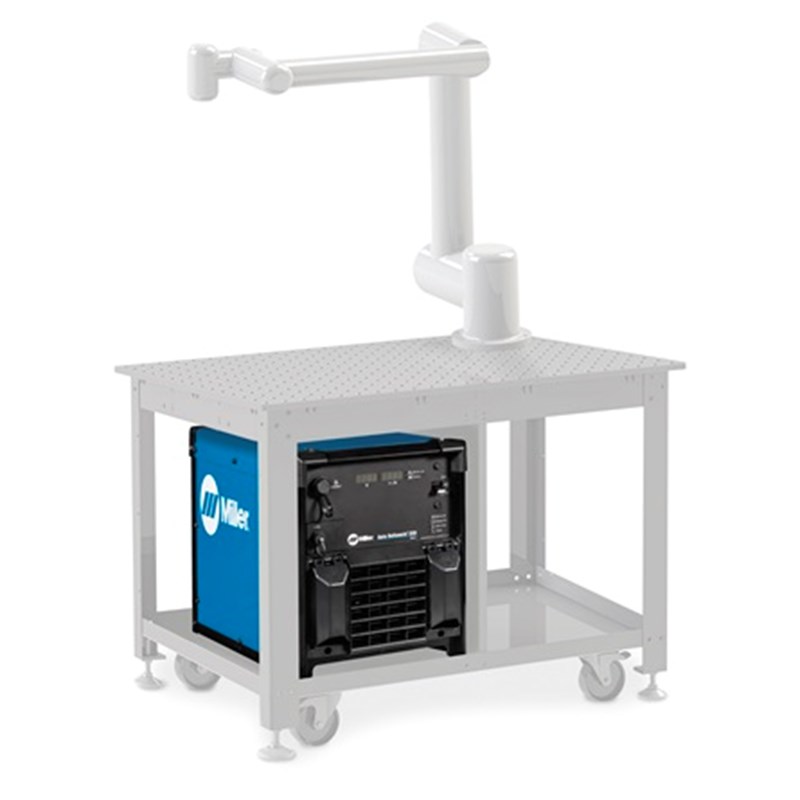

Designed for cobot integrators, Auto Deltaweld is your direct path to incorporate Miller welding technology into to your offerings.
Applications:
- Heavy industrial manufacturing
- General fabrication
- Structural steel fabrication
- Transportation
- Sheet metal fabrication
- Light-gauge tube and sheet
Features of the Auto Deltaweld™ 350
- Easy to Integrate - New SubArc power sources integrate with standard Modbus connections
- Easy to Use - Programming and operation driven to cobot pendant for a single-point user interface

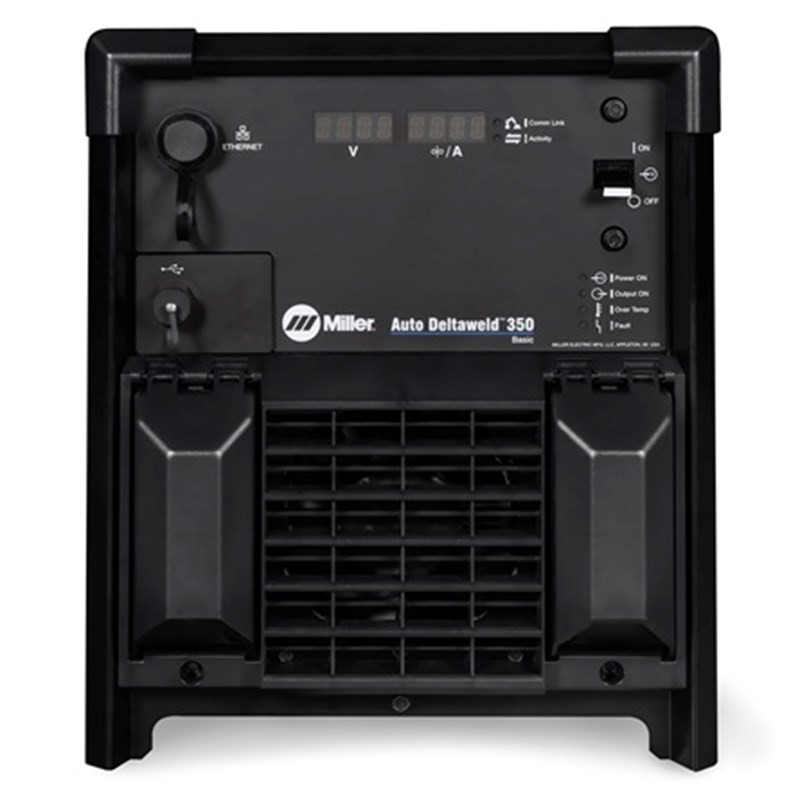

- Ethernet Receptacle - Allows webpage display and access for weld set up, troubleshooting, and power supply configuration.
- Fan-On-Demand™ - Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
- ArcConnect - Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
- Wind Tunnel Technology - Internal air flow that protects electrical components and PC boards from dirt, dust, debris, greatly improving reliability.
- Accu-Pulse - Offers a more forgiving arc and compensates for variations in operator technique, providing a wider operating window.
Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.
Specifications - Auto Deltaweld™ 350 Basic #907862 | |
---|---|
Brand | Miller Electric |
Model | Auto Deltaweld™ 350 Basic |
SKU | 907862 |
Processes | MIG (GMAW) Flux-cored (FCAW) Metal-cored (GMAW-C) Accu-Pulse® MIG (GMAW-P) |
Current Type | DC |
Input Power | 208/230/460 V, three-phase, 60 Hz 230 V, single-phase, 60 Hz |
Rated Output | 300 A at 29 VDC, 100% duty cycle 350 A at 31.5 VDC, 60% duty cycle 425 A at 35.25 VDC, 30% duty cycle 225 A at 25.25 VDC, 100% duty cycle 250 A at 26.5 VDC, 60% duty cycle |
Net Height | 18.54 in |
Net Length | 29.15 in |
Net Width | 15.35 in |
Net Weight | 115 lbs |
Weldable Metals | Aluminum Mild Steel Most Metals Stainless Steel Steel |
Warranty | Miller's True Blue Warranty |
Browse all Miller welding machines.
SHIPPING DIMENSIONS |
|
Height: | 18.54 Inches |
Width: | 15.35 Inches |
Length: | 29.15 Inches |
Weight: | 115 Lb(s) 0 Oz |
