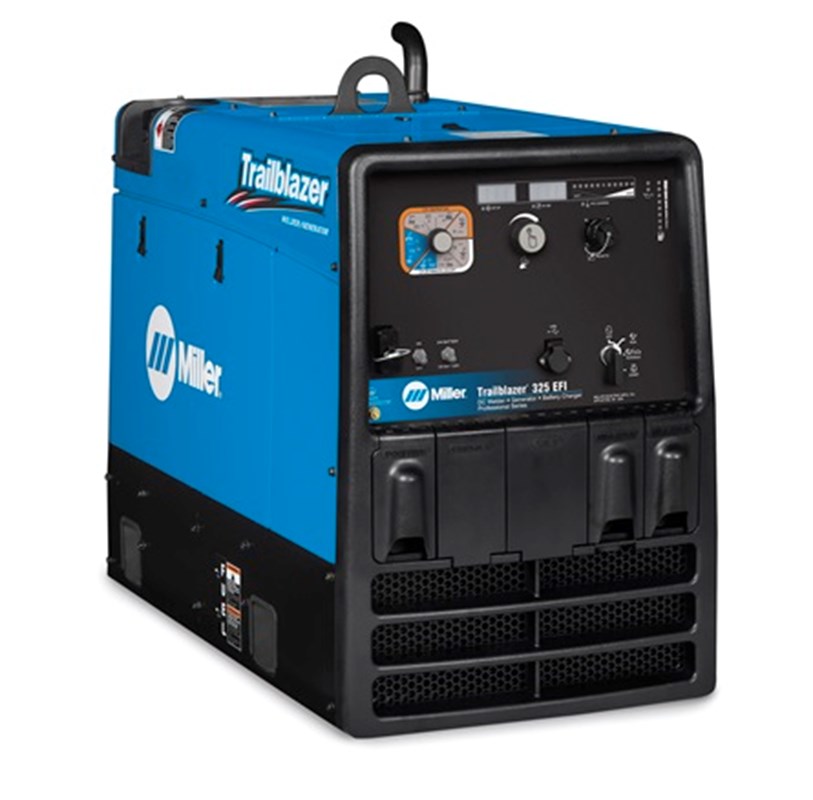

Trailblazer® 325 (Kohler) EFI w/ Battery Charge/Jump Start & Excel Power (No ArcReach®) 907798004
Part Number: 907798004
UPC: 715959678445
Welding type:
MIG
TIG
Stick
Material type:
Mild Steel
Stainless Steel
Documents
Videos
Kohler Gas Engine
MIG Welding
Stick Welding
TIG Welding
10% Lighter than Competition
12,000W Accu-Rated™ Power
3-Year Miller Warranty
Trailblazer® 325 (Kohler) EFI w/ Battery Charge/Jump Start & Excel Power (No ArcReach®) #907798004
Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.
Multiprocess Welder For Sale Online
This Miller Trailblazer delivers the smoothest, most stable arc in the industry. No other compact machine in the 300-amp class delivers more welding power with better fuel efficiency. But that's not all you'll receive...
- Unbeatable arc performance. Get the job done faster & save money with wide amperage output and better welding deposition rates.
- Auto-Speed™ Technology. Miller machines exclusively offer the benefit of matching engine speed to load.
- Electronic fuel injection (EFI). Improved fuel efficiency means higher productivity and profitability.
- Excel™ power. Miller machines offer the exclusive ability to power at idle.
- Cleaner and Stronger Generator Power. This Trailblazer welder, combined with a 25-horsepower engine, offers up to 12,000 watts of clean, usable, Accu-Rated™ power.
- Fewer refueling trips. Spend more time welding and less time refueling - this machine delivers maximum runtime.
- Maximum cost savings. Spend less money on fuel and enjoy more profit.
- Safer, more product job sites. A quieter job site is a more productive job site. No more shouting over loud machines!
- Portable & compact. Trailblazer welders are 17% smaller and 10% lighter than competitive machines.
Other Versions of the Miller Trailblazer 325:
- 907754003 - Miller Trailblazer 325 (Kohler) EFI w/ CHG/JMP & EXL PWR
- 907799001 - Miller Trailblazer® 325 Diesel, GFCI
- 907797 - Miller Trailblazer® 325 (Kohler)
- 907797001 - Miller Trailblazer® 325 (Kohler), GFCI
- 907797002 - Miller Trailblazer® 325 (KOHLER) w/ Electric Fuel Pump
- 907797003 - Miller Trailblazer® 325 (Kohler) w/ Wireless Interface Control
- 907798 - Miller Trailblazer® 325 (Kohler) EFI
- 907798001 - Miller Trailblazer® 325 (Kohler) EFI w/ Wireless Interface Control
- 907798005 - Miller Trailblazer® 325 (Kohler) EFI w/Battery Charge/Jump Start, Excel Power & Wireless Interface Control
- 907798002 - Miller Trailblazer® 325 (Kohler) EFI w/ Excel Power
- 907798004 - Trailblazer® 325 (Kohler) EFI w/ Battery Charge/Jump Start & Excel Power (No ArcReach)
- 907798003 - Miller Trailblazer® 325 EFI w/GFCI, Excel Power & Wireless Interface Control
PROCESSES
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Flux Cored (FCAW)
- MIG (GMAW)
- Stick (SMAW)
- TIG DC (GTAW-DC)
- Plasma (PAC)
| Title | Trailblazer® 325 (Kohler) EFI w/Battery Charge/Jump Start & Excel Power (No ArcReach®) |
|---|---|
| Industries Interests | Fabrication Maintenance Repair Structural steel work Sheet metal Pipe |
| Engine Brand | Kohler |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | 2400 RPM 2800 RPM 3200 RPM 3600 RPM |
| Fuel Tank Size | 12 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 23 hp |
| Single Phase Generator Continuous Power | 10500 W |
| Single Phase Generator Peak Power | 12000 W |
| Rated Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Weld Output | CC / CV |
| Net Width | 20 in |
| Net Height | 28 in |
| Net Length | 40.5 in |
| Net Weight | 508 lbs |
| Warranty |
3 Years |
SHIPPING DIMENSIONS |
|
| Height: | 20.00 Inches |
| Width: | 28.00 Inches |
| Length: | 41.00 Inches |
| Weight: | 515 Lb(s) 0 Oz |
Accessories
Consumables
Manufacturer Reviews
Since 1994, just bought my last Trailblazer. Number 9, Would sell the others before they got too worked over from the salt environment I used them in. Never had a serious issue out of them all, except only a charging problem on #6 and main board on #8. Gonna soon retire for good and keep old #9 for the house generator during hurricanes, can't best it…
Product Questions and Answers
Have a question about this product? Submit your question using the form below
