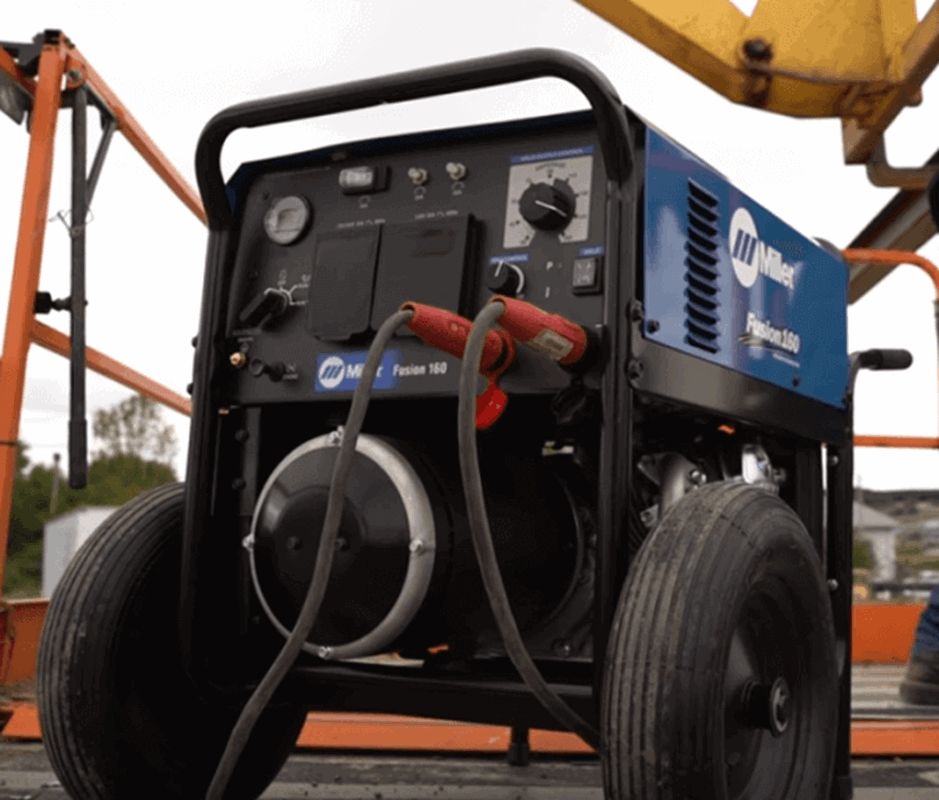

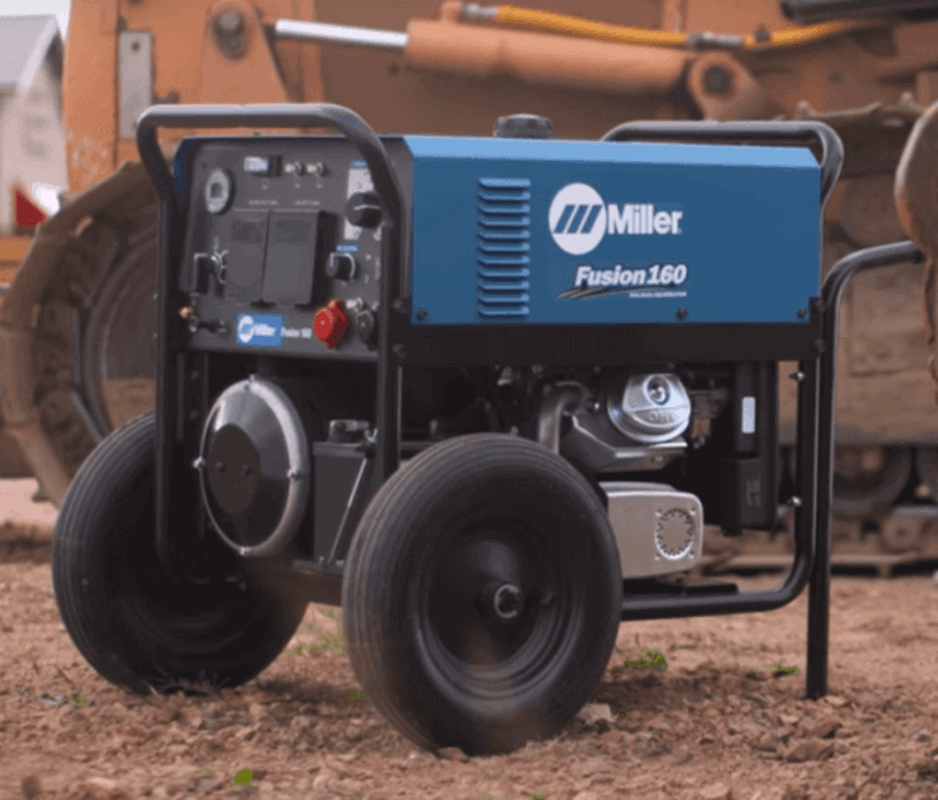

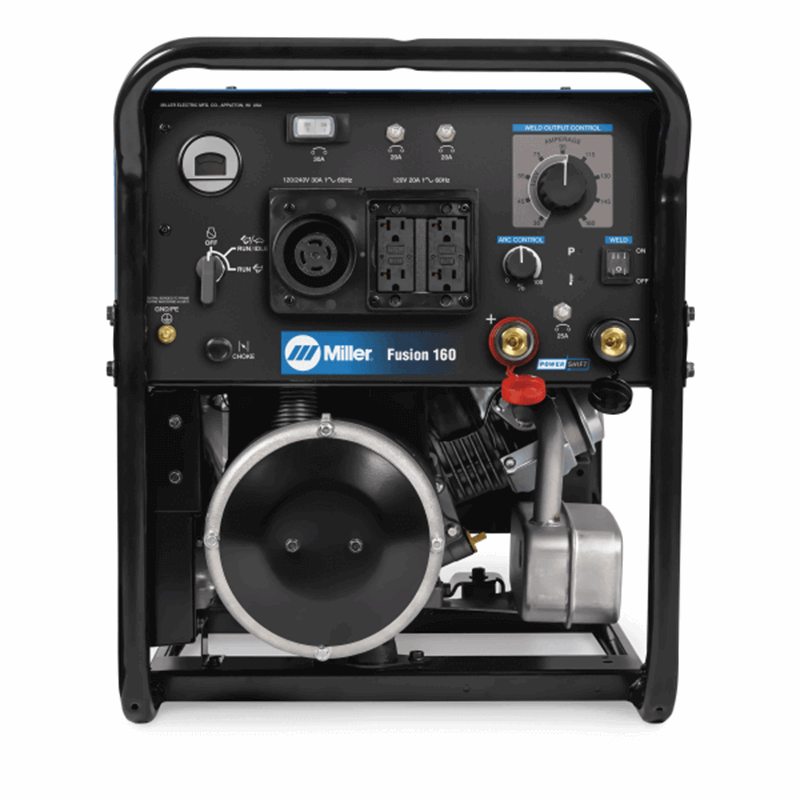

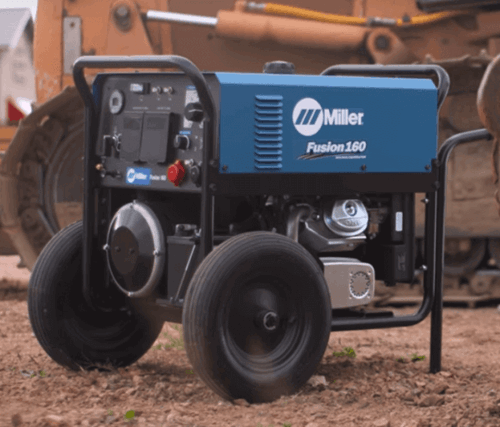

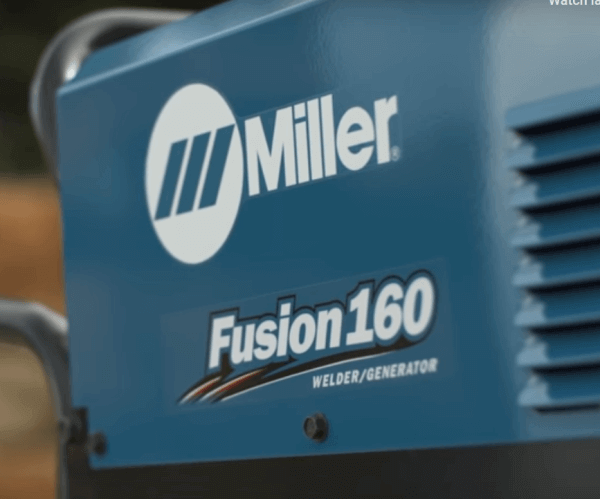

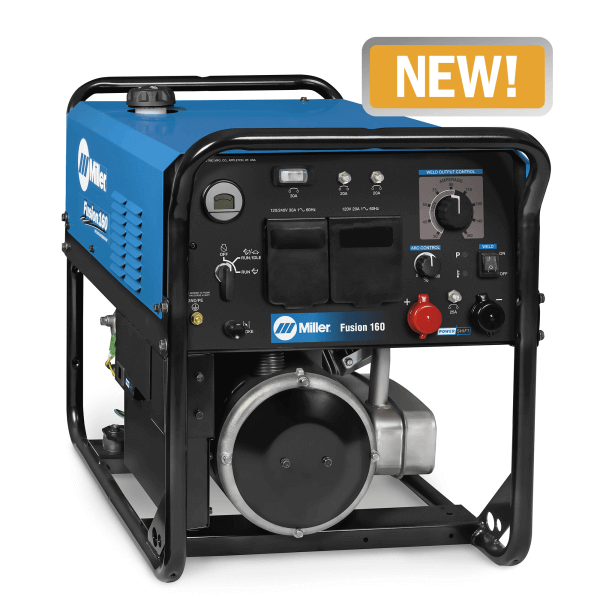

Miller Fusion 160 (Recoil Start) #907720

The all New Fusion 160 delivers a smooth, stable arc from either engine power or 120/240-volt utility power, providing a unique combination of versatility and productivity in a lightweight package.

Easier to transport

The Fusion 160 welder/generator weighs 222 pounds. That’s up to 70 pounds less than similar machines, so moving the Fusion 160 is easier and faster. Less time is spent waiting and more work can get done.

Work-anywhere convenience

PowerShift technology provides weld capabilities using either the Fusion 160 engine or 120/240-volt utility power. You’ll have the confidence of knowing that you can weld virtually anywhere - outdoors and indoors - with just one machine.

Less rework

The Fusion 160 uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed, so it’s easier to produce clean welds that meet specifications and avoid the time and expense of rework.

VP

The multi-voltage plug (MVP) make it easy to connect the welder to either 120- or 240-volt power.

PROCESSES

Stick (SMAW)

GENERAL SPECIFICATIONS

Title	Fusion 160 Recoil Start
Industries Interests	Construction Farm and Ranch Maintenance and Repair - Field Operations
Engine Brand	Kohler
Engine Idle Speed	2400 RPM
Engine Weld Speed	3600 RPM
Fuel Tank Size	6.25
Fuel Type	Gasoline
Horsepower	13.4 hp
Weldable Metals	Steel Stainless Steel
Rated Output	CC/DC Stick 160 A at 26.4 V, 20% duty cycle 110 A at 24.4 V, 100% duty cycle
Single Phase Generator Continuous Power	6200 W
Single Phase Generator Peak Power	6500 W
Input Voltage	110/115/120 V 220/230/240 V
Input Phase	1-Phase
Input Hz	60 Hz
Current Type	DC
Max Open Circuit Voltage	58 VDC
Amperage Range	30 - 160
Net Width	20.09 in
Net Height	24.75 in
Net Length	31.25 in
Net Weight	222 lbs
Warranty	Engine Warranties Miller's True Blue Warranty
Weld Output	CC
