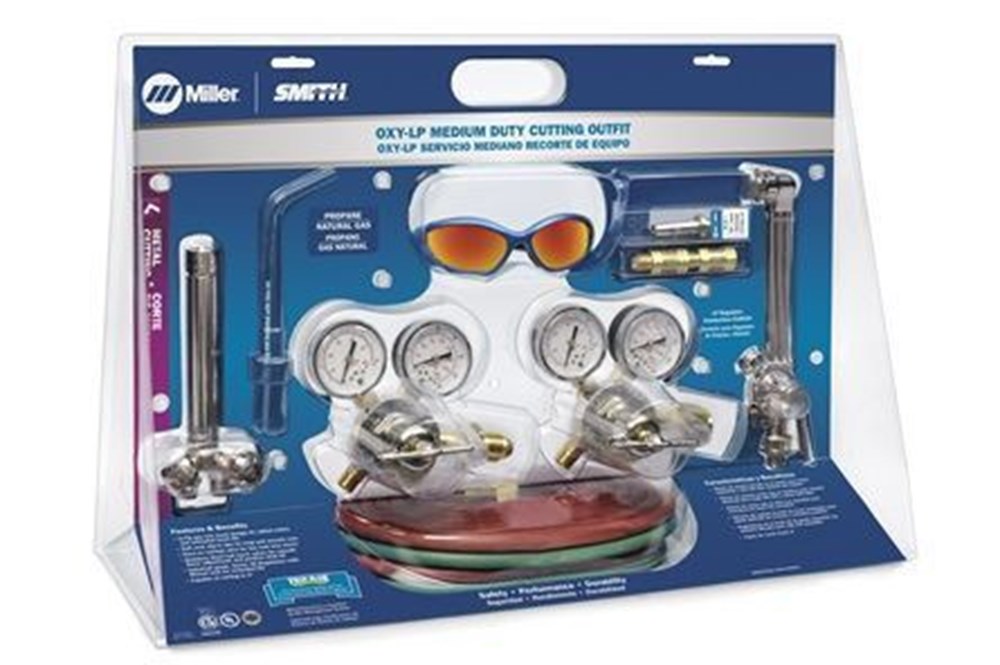

Miller Toughcut™ propane outfit w/acc, CGA510 #MB54A-510LP

Miller Toughcut™ Propane Outfit w/acc, CGA510 #MB54A-510LP

Versatile Toughcut outfits include many features found on more expensive outfits. The Toughcut series is perfect for a multitude of applications such as farm, ranch, hobby, automotive, refrigeration, light fabrication, and repair. Outfits feature rugged, reliable Series 30™ medium-duty regulators, accessories and can cuts up to 6” with optional tips, and optional features. Such as; Graf-Tite® soft seats Resilient Graf-Tite® seat material protects tip seating areas from nicking to maintain positive seating. Requires less replacement than metal-to-metal seat designs. Compressible soft seats are practically indestructible and withstand extremely high temperatures, resulting in longer tip life. In-tip mix: Each tip is a precision engineered mixer for combining preheat oxygen and fuel gas to attain maximum efficiency. Adds resistance to flashback, Slip-in tip design: just hand tighten After the first tightening with a wrench, only hand tightening is required to seat the tip, saving time when changing tips. Quick and easy tip changes encourage use of right tip for the job, and Removable high-pressure seat: Allows cleaning from back of tip.

Cutting Attachment:

Slip-in cutting tips Save time when changing tips: no wrench needed. Resilient Graf-Tite® seat material protects tip from nicking and maintains positive seating. Requires less replacement than metal-to-metal seat designs.

Three-tube construction: Gases are kept separated, eliminating mixing tube burnout. Our thick-wall, high-capacity stainless steel tubes provide high gas flow and superior strength.

Ease-on oxygen cutting valve: Allows smooth piercing and keyhole free starts and restarts.

Triple o-ring seal: Provides positive gas seal, and allows rotation.

Torch Handles:

Internal threads: Threads are protected from damage if the torch is dropped, eliminating costly torch repair, replacement or downtime.

Double-tube handle: Tube-within-a-tube design provides strength while reducing weight. Internal tube is silver brazed for extra protection, strength and leak resistance.

Adjustable valve resistance: Special PTFE packing provides a gas-tight seal while allowing the “drag” to be adjusted to the individual preference.

Stainless steel ball-style valves: Corrosion-resistant balls and brass seating surfaces provide gall resistance and positive, chatter-free seating.

Replaceable hose connections: Hose connections are easily replaced if damaged.

Processes:

• Oxy-Fuel Cutting
• Welding & Heating

Applications:

• Aerospace
• Auto / Cycle (Racing, Customizing, Restoring)
• Construction
• DIY / Home Hobbyist
• Farm and Ranch
• Heavy Equipment Manufacturing
• Infrastructure
• Manufacturing
• Metal Art / Sculptures
• Railcar
• Shipbuilding
• Boat / Yacht
• High Purity Processing

View our full line of affordable, quality welding and cutting outfits and cutting torch kits available online

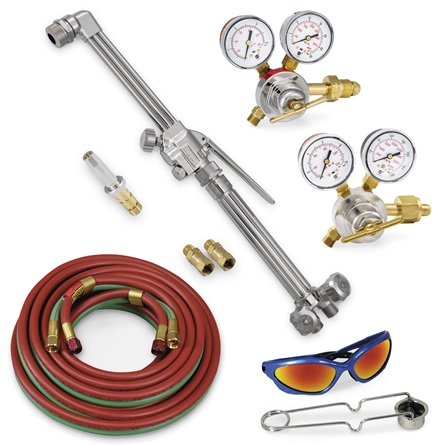

Includes:

• Torch handle (CW5A)
• Cutting Attachment (CC509P)
• Oxygen Regulator (30-100-540)
• LPG Regulator (30-50-510)

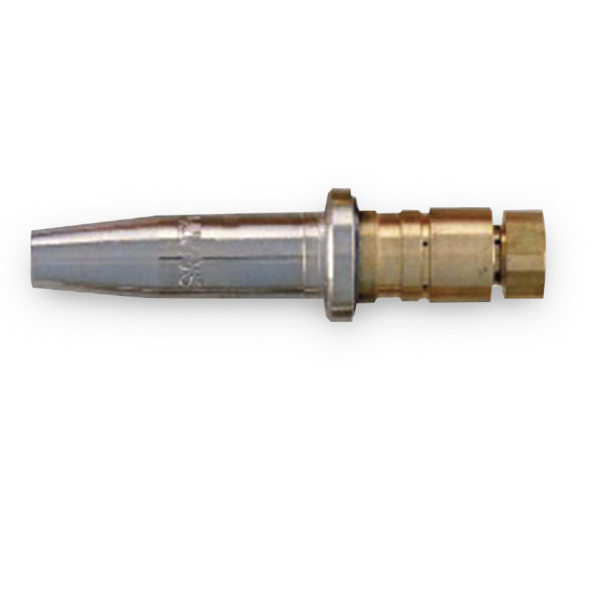

• Cutting Tip (MC40-1)
• 20-ft 1/4" Twin Hose (TRL1131)
• Friction Lighter (N113ANB)
• Safety Glasses (78000)
• Regulator Mount Check Valves (H698)
• Operations Manual
