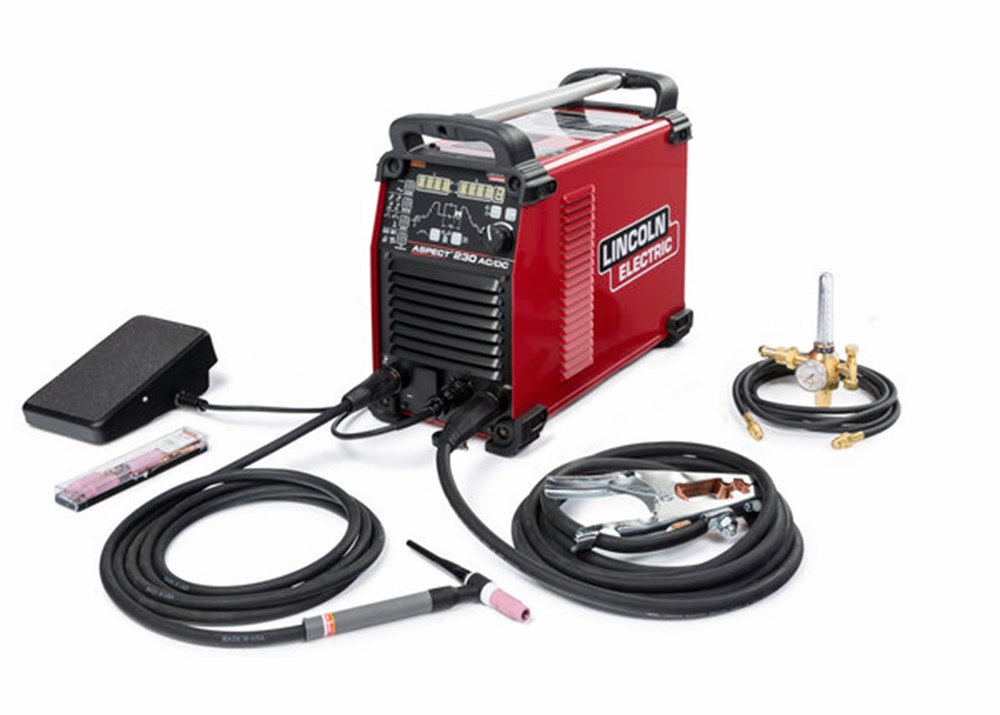

Lincoln Aspect® 230 AC/DC Air Cooled One-Pak #K4341-1
The Aspect 230 TIG welder is an inverter based arc welding power source optimized for AC/DC TIG and Stick welding. A 1 professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc You need. All of the features You want can be easily customized to Your application and saved in the available memory settings. TIG weld like a champion with the new Aspect 230 AC/DC machine.
Tackle More Work
With up to 230 Amps of maximum output You can TIG weld up to 1/4
Weld on the Go
Portable, lightweight, and easy to transport
Peace of Mind
Save critical weld set up information in up to -9- memory locations
Activate Intellistart technology to automatically provide for softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials. Optional AC Auto Balance technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.
Aspect® 230 Features
- Exceptional arc response and stability
- Highly Customizable TIG Machine
- PowerConnect(R) technology 120-460V input power
What's Included
- 10 ft. (3m) input power cord
- Aspect 230 AC/DC Foot Pedal
- Expendables Kit for PTW-18 and PTA-26 Air Cooled TIG Torch 200A PTA-26 Flex Head (25ft) Gas Regulator
- Ground Clamp w/15 ft Cable Torch Twist Mate Connector ASM
- Aspect® 230 AC/DC | K4340-1
- Foot Amptrol™ - 25 ft. (7.6m) (6 pin) | K870
- Parts Kit for PTA-26 and PTW-18 TIG Torches | KP509
- TIG Torch Adapter Kit for PTA-26 Torches | K1622-3
- Weld Cable Package - Work Lead - TM & GC500 Ground Clamp (2/0, 350A, 60%) - 15 ft (15.3 m) | K1803-3
- PTA-26F TIG Torch Torch (25 ft 1pc) | K1783-10
- Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit | 3100211
Shop all TIG welding machines and TIG welding helmets available online from Welders Supply.
Lincoln Aspect® 230 AC/DC One-Pak #K4341-1 Specifications | |
---|---|
Input power |
120-460V 120V: 21A 208/230/460V: 11A/10A/5A 50/60 Hz 1-Phase, 3-Phase |
Output range | 120V: 2-150A TIG 208/230/460V: 2-230A |
Rated output | 120V: 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V 208/230/460: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V |
Welding processes |
AC/DC TIG AC/DC stick |
Typical applications | Automotive Brewery Distillery Maintenance & Repair Marine Applications Marine Fabrication & Repair Repair Welding Shipbuilding |
SHIPPING DIMENSIONS |
|
Height: | 16.50 Inches |
Width: | 9.70 Inches |
Length: | 19.90 Inches |
Weight: | 78 Lb(s) 10 Oz |
