Miller Spectrum 875 Plasma Cutter, 60A 208/230 1PH 25ft Torch #907583002

Part Numbers: 907583002
UPCs: 715959600644
6 Reviews
Rebate Forms:
$700 MFR Rebate - Miller Build with Blue

Included with your purchase: ()

Miller Spectrum 875 Plasma Cutter, 60A 208/230 1PH 25ft Torch #907583002
Miller Spectrum 875 Plasma Cutter, 60A 2...
Miller Classic Series Welding Helmet with ClearLight™ Lens Technology, VS Black #287803
FREE!
Miller Classic Series Welding Helmet wit...
Welders Supply cup holder
FREE!
Welders Supply Magnetic Cup Holder
Black Stallion Split Cowhide Gloves
FREE!
Black Stallion Split Cowhide Stick Glove...
Choose Options
American Welder T-Shirt - Back
FREE!
Welders Supply T-Shirt & Stickers
$4,185.00 + Free Shipping $4,185.00*
SAVE $0.00
$4,185.00 + Free Shipping $4,185.00*
SAVE $0.00

Call 844-682-0205 or CHAT for more options

Plasma torch:

Mechanized

Mechanized

Power supply:

220V Single Phase

220V Single Phase

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

  •  Single Phase
  •  220V
  •  Torch Included (XT60 Long-Body)
  •  3-Year Warranty
  •  Lightweight

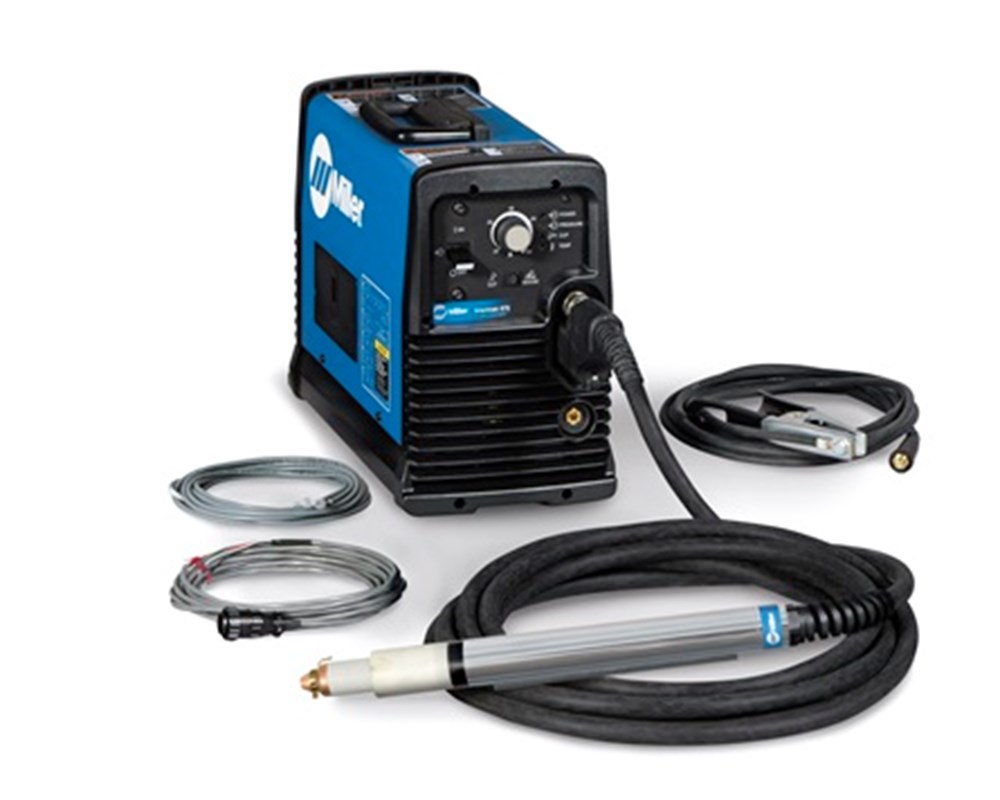

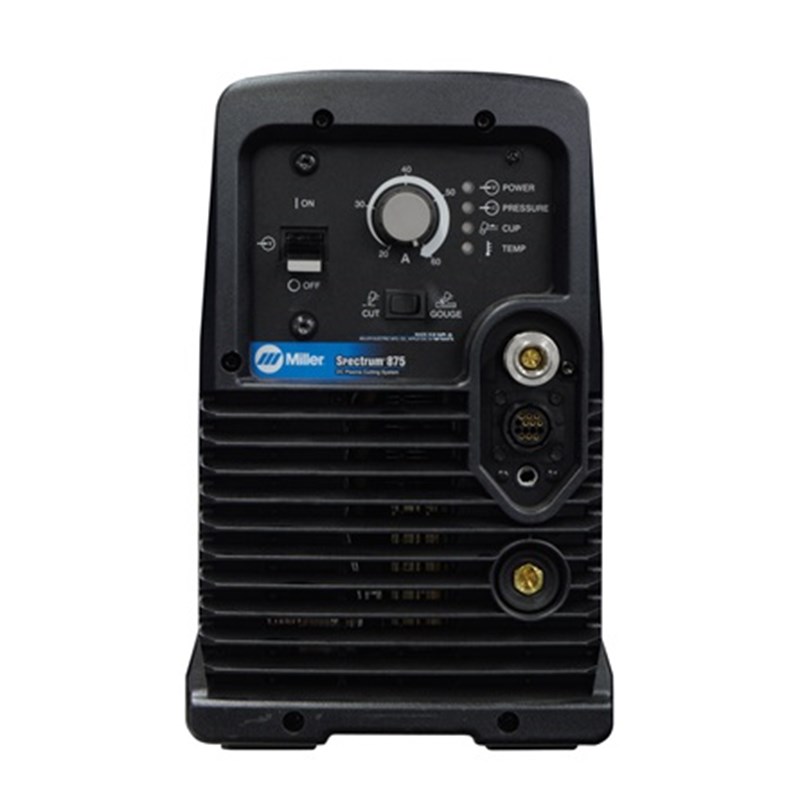

Spectrum 875 Plasma Cutter with XT60 Long-Body Torch with 25-ft. Cable 907583002

Compact, 51 lb, 230/208V 1 PH unit provides plenty of power for 7/8 in. mild steel cutting.

What's Included

  • Spectrum 875
  • XT60M long-body machine torch with 25-ft. (7.6 m) cable. Includes a set of 60 A consumables.
  • Heavy-duty work clamp and flexible cable with quick connect
  • 10-ft. (3 m) power cord
  • Extra consumables

Features & Benefits

Rated Cutting Capacity - The rated cutting capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.

Automatic Air Regulation - For end user convenience, the unit has no pressure gauge or manual regulator knob. The unit automatically adjusts the air pressure to the torch for optimum cutting and gouging. No adjustments necessary.

Ultra-Quick Connect™ Torch - The fastest plasma torch and work cable connection and removal in the industry.

CNC/Automation Cutting Capable - Factory-ready CNC/Automation models are available in long or short body torches as well as retrofit kits to convert handheld machines to be capable of CNC/Automation cutting.

Wind Tunnel Technology™ and Fan-On-Demand™ - Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components. Fan-On-Demand cooling system operates only when needed. In dirty or dusty environments, this feature reduces the amount of airborne dust/dirt pulled through the unit.

Can Be Powered by Miller Engine Drive/Generator - Generator power at or above 10 kW (e.g. Bobcat™) or equivalent competitive equipment required.

Ultra-Quick Connect™ Work Cable & Clamp - Work cable and clamp make for fast and easy setup and storage. The new ultra flexible Quick Connect work lead comes with a smaller heavy-duty clamp.

Auto-Refire™ Technology - Provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.

Shop all our Plasma Cutting MachinesPlasma Cutting Accessories, and Plasma Cutting Consumable Parts online at Welders Supply.

How to Get Your Rebate

Miller Build with Blue rebate claim instructions

Title  Spectrum 875 Plasma Cutter with XT60 Long-Body Torch with 25-ft. Cable
Industries Interests Racing / Customizing / Restoring
Construction
DIY / Home Hobbyist
Heavy Equipment Manufacturing
Infrastructure
Manufacturing
Shipbuilding
Boat / Yacht
High Purity Processing
Capability Gouging  —
Rated Output at 104 Degrees Fahrenheit 208 V: 60 A at 140 VDC, 40% duty cycle; 230 VDC: 60 A at 140 VDC, 50% duty cycle
Material Thickness
Mild Steel 7/8 in. (22.2 mm)
Aluminum 5/8 in. (15.9 mm)
Stainless Steel 7/8 in. (22.2 mm)
Recommended Generator Power  11000
Input Hz 50/60 Hz
Input Amperage 42 A
Metal Type {9190276B-EE44-47D3-9D9A-F3CEE1894DC2}
{35A950E3-2302-440C-9387-45563C82DAFF}
{B04BEE54-0575-4BF3-9040-C83E2EA5D629}
Stainless Steel Travel Speed - IPM 15 IPM
Aluminum Travel Speed - IPM 15 IPM
Mild Steel Travel Speed - IPM 15 IPM
Net Width
8.75 in
Net Height 13.5 in
Net Length 18.75 in
Net Weight 51 lbs
Warranty 3 Years
Miller's True Blue Warranty

SHIPPING DIMENSIONS

Height: 13.50 Inches
Width: 8.75 Inches
Length: 18.75 Inches
Weight: 51 Lb(s) 0 Oz

Manufacturer Reviews

Terry
Excellent products
CptNoah
I've had this plasma cutter now for a little more than a month and before I even plugged it in, right out of the box I put three coats of wax on it. Call me crazy but all of my machines are well cared for and my customers notice it. Anyway, back to the spectrum 875: I was extremely skeptical that this tiny 50lb unit, filled with circuit boards and a couple capacitors would cut anything heavier than some flashing. I was surprised when it sliced right through some 1" mild steel plate! I'm not sure what my travel speed was but I surely wasn't taking my time! I like how the torch hose and ground lead are detachable. The power cord should have been designed that way. I also like that the fan doesn't run all the time, just while you're cutting. It did come with a few consumables but not the tip needed for gouging. What's up with that? Would have been nice if Miller included a hose cover but they didn't so that's another trip to the welding supply store. When cutting, the drag shield blocks your view and I'm not impressed with the dainty feel of the trigger nor the safety lever that's built into it. Overall I'm satisfied with the purchase and would recommend it to anyone looking to get a plasma cutter.
Mohawk
Was looking to buy a plasma cutter for some time and finally decided on the Spectrum 875. This unit is probably larger than I'll ever need but when that one job comes along, I'll have the tool to get it done. This machine works very nice and easy to use. It makes short work on cutting any metal I've come across. When using a guide (Strait edge, etc...# this unit cuts very clean with little to no slag at all. When you get the hang of the speed of travel along with the right amount of power the cut is very, very clean. I now use the plasma cutter more than my metal band saw #both horizontal and vertical). Wish I would have purchased one years ago. Thanks for an outstanding piece of equipment. John
rhstampfli
The torch head is very stiff and is molded in the side position to where you cannot hold it very steady down on the metal when trying to cut a piece with a circular or straight line template. When you are free handing a cut you want a limber cable and torch head. Don't get me wrong the power source is well recommended but the torch assembly has to go.My rating is low due to this part of the package. If it wasn't for this i would have kept the machine.Blue is the color of all our machines except our plasma machine. I hope Miller redesigns the torch assembly.
SPY3143
THIS PLASMA WORKS TO IT SPECKS AND BEYOND IT WORKING SPECKS.....A VERY GREAT MACHINE AND VERY EASY TO USE
Richard
Hard to review as I just used it for the first time today. Went through 1/4" steel like butter. I am going to try and do free hand signs which I already know is going to take a lot of practice. My hands aren't as steady as they used to be. As of now I have to give the machine an A plus. Can't see anything it won't do that it says it will. Also very easy to set up. The one important thing I did was set up a professionally installed air compressor and air system so the machine could be evaluated accurately. I'm looking forward to many hours of practice and hopefully some nice results.
