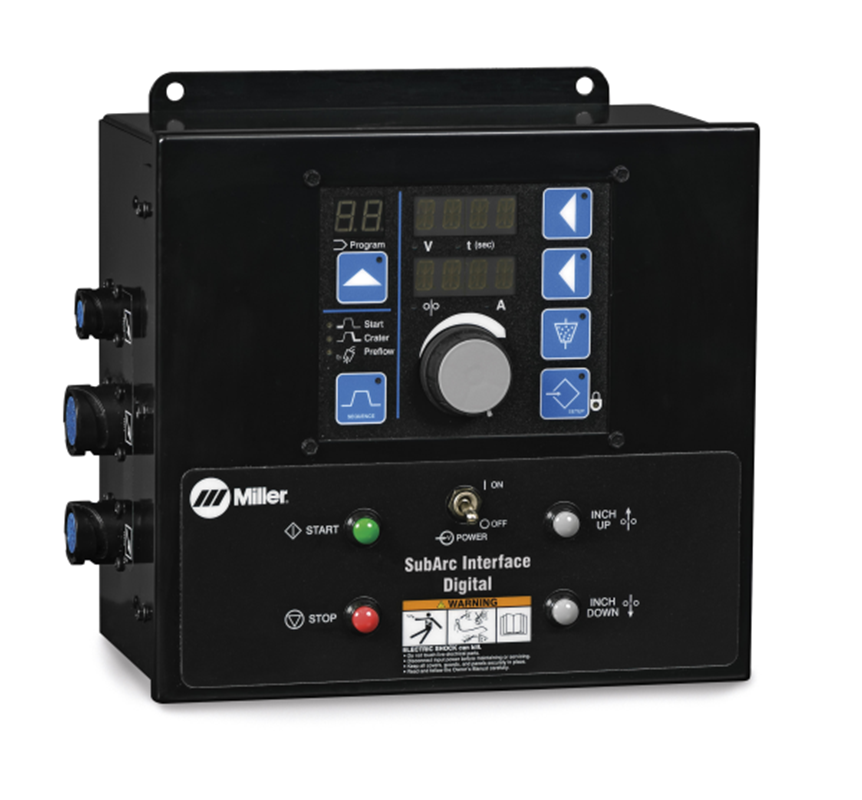

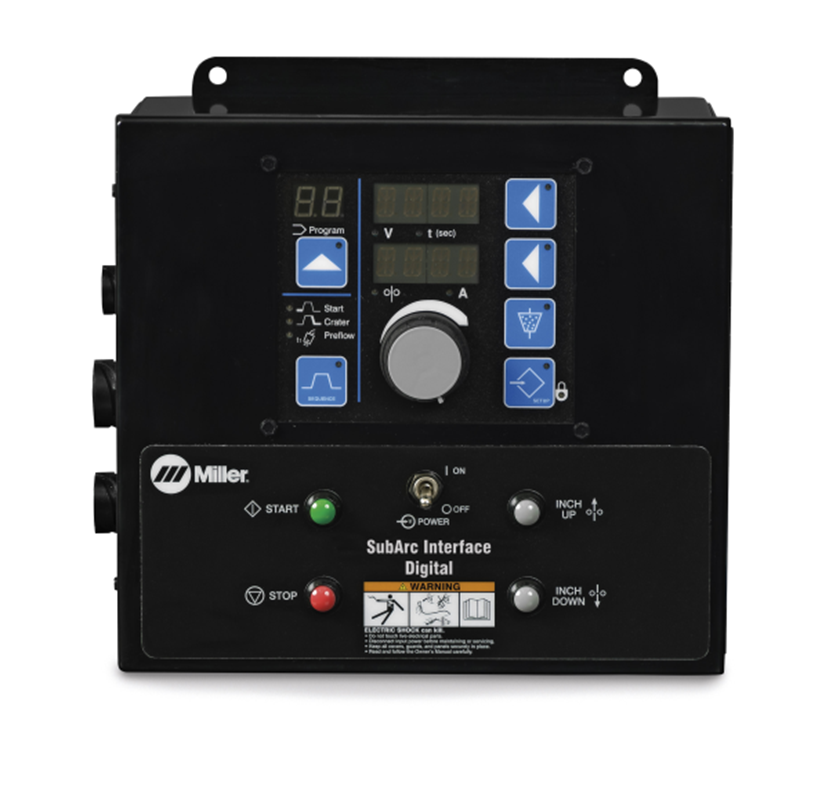

Miller SubArc Interface Digital for DC, CC/CV Power Sources #300936

Miller SubArc Interface Digital 300936

SubArc Digital interfaces offer reliability, flexibility, and performance with their ability to interface with DC, CC/CV power sources having remote contactor and output control capabilities.

Features:

Internal terminal strip.

• Internal terminal strip is able to integrate with positioners, side beams, turning rolls and other peripheral equipment.

SubArc Interface Digital

• A full feature control box with Digital read out and memory functions for 15 work points / programs.

Adjustable Parameters

• Start and crater parameters are individual adjustable. Learn More

CV+C Weld Mode

• CV+C mode allows operator to preset voltage and amperage rather than wire feed speed. Learn More

Adjustable AC Balance

• Adjustable AC Balance or welding polarity, standard set for two DC modes and 12 best-practice AC balance settings when used with SubArc AC/DC Digital power sources.

SubArc Digital Series

• Suitable for SubArc DC and AC/DC Digital Series power sources.

Easier setup and operation

• The SubArc Digital Series Interface controls recognize the power source and wire drive connected, and automatically configure the system for proper operat

View our large selection of welding machine accessories for the greatest values online.

Processes:

• Electroslag (ESW)
• Submerged Arc (SAW)

Applications:

• Railcar
• Shipbuilding
• Heavy Fabrication
• Pipe Manufacturing
• Pressure Vessel

Input Power: 3-Phase

Rated Output:

DC 650/800: 650 A at 44 V, 100% duty cycle

DC 1000/1250: 1,000 A at 44 V 100% duty cycle

AC/DC: 1,000 A at 44 V 100% duty cycle

Height: 30 in. (762 mm)

Width: 23 in. (584 mm)

Length: 38 in. (965 mm)

Weight: 593 lbs (269 kg)

Warranty: 3 Years, Miller True Blue Warranty

• Miller SubArc Interface Digital 300936 specs
