Miller Dynasty® 800 Wireless Foot Control Complete #951875

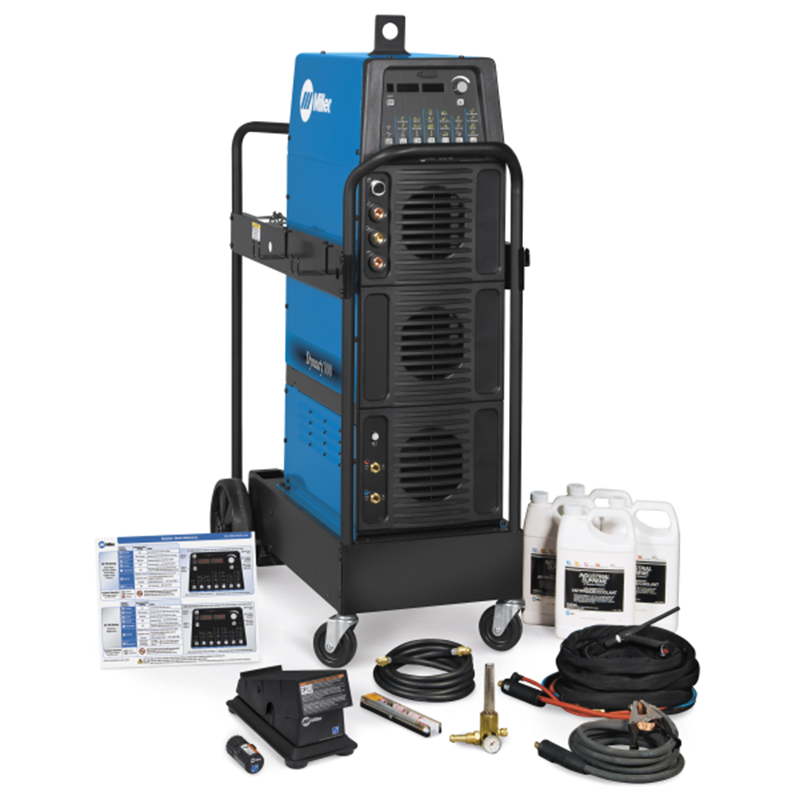

What's included
- Dynasty® 800
- Coolmate™ 3.5
- Weldcraft™ W-400 torch kit and accessories (300186)
- Quick Reference Guide
- Runner Cart
- Coolant (4 one-gallon bottles of 043810)
- Wireless Foot Control System (301580)
Product Features:
- Upgradeable and Expandable - Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
- Meter Calibration - Allows meters to be calibrated for certification.
- AC and DC TIG Features - AC TIG Features Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode. Extended AC balance (30–99%) controls the amount of oxide cleaning (amperage time in EN) which is essential for high quality welds on aluminum. AC frequency (20–400 hz) controls the width of the arc cone and the force of the arc. DC TIG Features Exceptionally smooth and precise arc for welding exotic materials. High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.
- Program memory - Program memory features 9 independent program memories that maintain/save your parameters.
- Cooler-On-Demand™ - Feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.
- Blue Lightning™ - High Frequency Arc Starter - For more consistent non-contact starts and greater reliability compared to traditional HF arc starters.
- AC Waveforms - Advance Squarewave provides a fast freezing puddle, deep penetration, and fast travel speeds. Soft Squarewave is used for a soft buttery arc with maximum puddle control and good wetting action. Sine wave is for customers that like a traditional arc. It is quiet with good wetting. Triangular wave reduces the heat input and is good on thin aluminum. It provides fast travel speeds.
- Stick Features - Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
- Cooler Power Supply (CPS) - An integrated 120-volt dedicated-use receptacle to power the Coolmate™ 3.5. The power switch on the Dynasty also activates the receptacle to help prevent torch failure.
- Auto-Line Power Management Technology - Allows for any input voltage hookup (208 - 575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
Check out all of our welding machines including Mig Welders, Tig Welders, and Stick Welders.
Miller Dynasty® 800 Wireless Foot Control Complete #951875 Specifications | |
---|---|
Material Thickness | Aluminum 0.020 in. (0.5 mm) - 1 in. (25.4 mm) Steel 0.020 in. (0.5 mm) - 1 in. (25.4 mm) |
Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
Input Voltage | 208 V 220/230/240 V 380/400 V 460/480 V 575 V |
Input Phase | 1- and 3-Phase |
Input Hz | 50/60 Hz |
Current Type | AC / DC |
Max Open Circuit Voltage | 75 VDC |
Amperage Min | 5 A |
Amperage Max | 800 A |
Weld Output | CC |
Warranty | 3 Years - Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 34.50 Inches |
Width: | 13.75 Inches |
Length: | 22.00 Inches |
Weight: | 198 Lb(s) 0 Oz |
