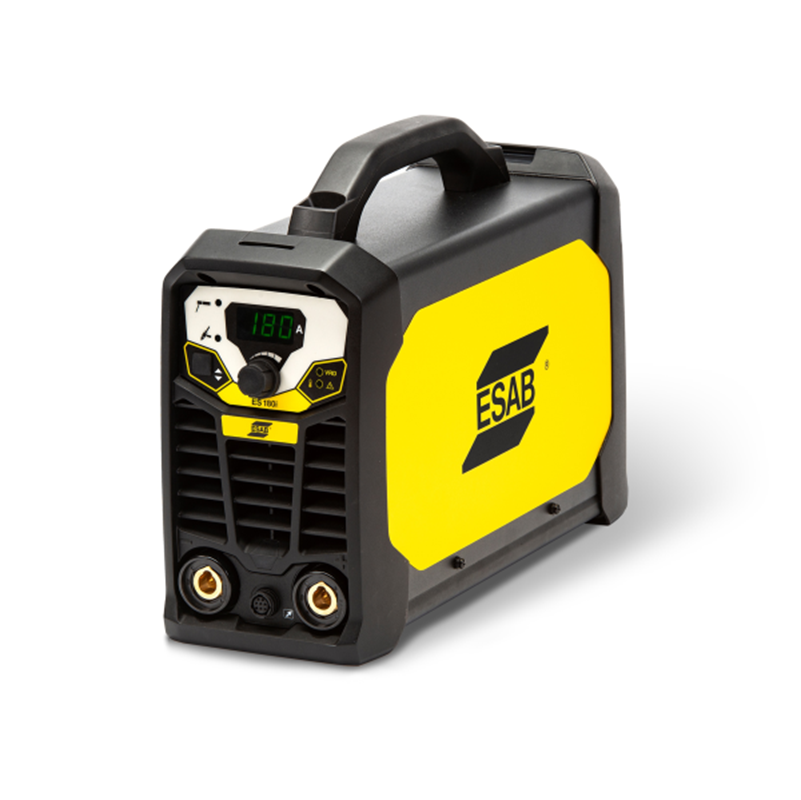

ESAB Rogue ES180i Pro #0700500070

The Rogue ES is a robust and durable power source for the professional welder. The machine provides state-of-the-art welding performance and reliability through use of the latest high performance power electronics and Digital control; ensuring a precise consistent arc.

The Rogue ES provides a smooth DC (Direct Current) welding power which allows you to weld a variety of metals, such as alloyed and non alloyed steel, stainless steel, and cast iron. The Arc Force and Hot Start settings are adjustable and help the user find exactly the right arc for the job. Being digital the Micro-processor precisely controls all functions and provides Best-in Class welding performance across the amperage range of the machine. The Rogue ES 180i PRO can be used with electrodes up to 4.0 mm (5/32 in.) and Rogue ES130i PRO can tackle up to 3.2 mm (1/8 in.).

The Rogue ES can easily perform TIG -welding using a “Live TIG” start. Equip the power source with the optional TIG-Torch, which has a built-in gas valve and a regulator, and a bottle of gas and you are ready to weld mild steel or stainless steel, with or without filler material.

Features:

Dual voltage input supply –flexibility to use any place on single phase plug
Superior Arc characteristics –smooth and stable performance (including special mode for stick 6010)
Generator Compliant –suitable for use with generators. (7kW recommended)
Easy to Use –set the welding current and weld with excellent results
Practical Design –makes the power source easy to carry which enables use at almost any work site
Robust Design –IP23S designed for fabrication shop or site application
PFC ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 300 feet (12 AWG size)
Optional analogue remote control (Optional hand remote control MMA4)

Industry:

Repair and Maintenance
Civil Construction
Agricultural Equipment
Industrial and General Fabrication

For more great values, view our large selection of Mig, Tig, and Stick welders.

Rouge ES 180i PRO

Features
Primary Voltage 1 ph	120 -230 VAC +/- 15%, 50/60 Hz
Maximum Output	180 A
Rated kVA	6 kVA
Energy Save Mode	50 W
Open Circuit Voltage	78 V DC
Stick (SMAW) Welding Output (230 V) at 25% Duty Cycle at 60% Duty Cycle at 100% Duty Cycle	180 A / 27.2 V 116 A / 24.6V 90 A / 23.6 V
Stick (SMAW) Welding Output (120 V) at 25% Duty Cycle at 60% Duty Cycle at 100% Duty Cycle	110 A / 24.4 V 70 A / 22.8 V 55 A / 22.2 V
TIG (GTAW) Welding Output (230 V) at 25% Duty Cycle at 60% Duty Cycle at 100% Duty Cycle	180 A / 17.2 V 116 A / 14.6 V 90 A / 13.6 V
TIG (GTAW) Welding Output (120 V) at 25% Duty Cycle at 60% Duty Cycle at 100% Duty Cycle	140 A / 15.6 V 90 A / 23.6 V 70 A / 12.8 V
Current Range	10 - 180 on 230 VAC 10 - 140 on 120 VAC, depending on process
Operating Temperature	-10 to 40°C (+14 to +104°F)
Enclosure Class	IP23S
Dimensions	403 x 153 x 264 mm (15.8 x 6 x 10.4 in)
Weight	8.25 kg (18.2 lbs)
