REPLACED BY #296765

Miller Digital Elite Auto Darkening Welding Helmet #257213

Miller Digital Elite Auto Darkening Welding Helmet-Black #281000

Part Number: 281000

This Item Has Been Discontinued and has been replaced by Digital Elite™ Welding Helmet w/ ClearLight 4x, Black (QR) #296765 - Level up today!

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

TIG Rated
Superior Flame Resistance
3-Year Miller Warranty

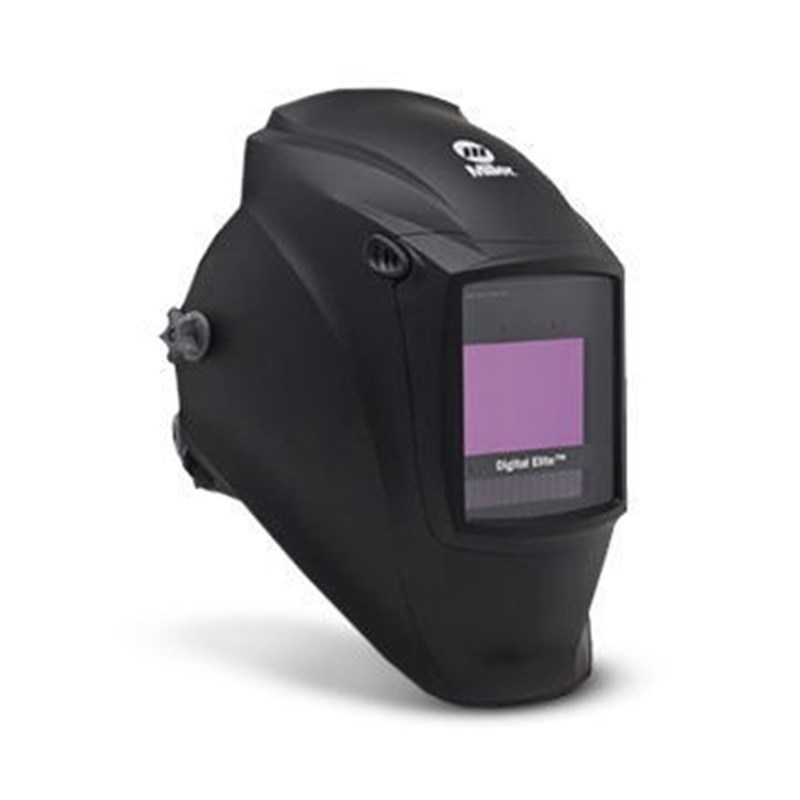

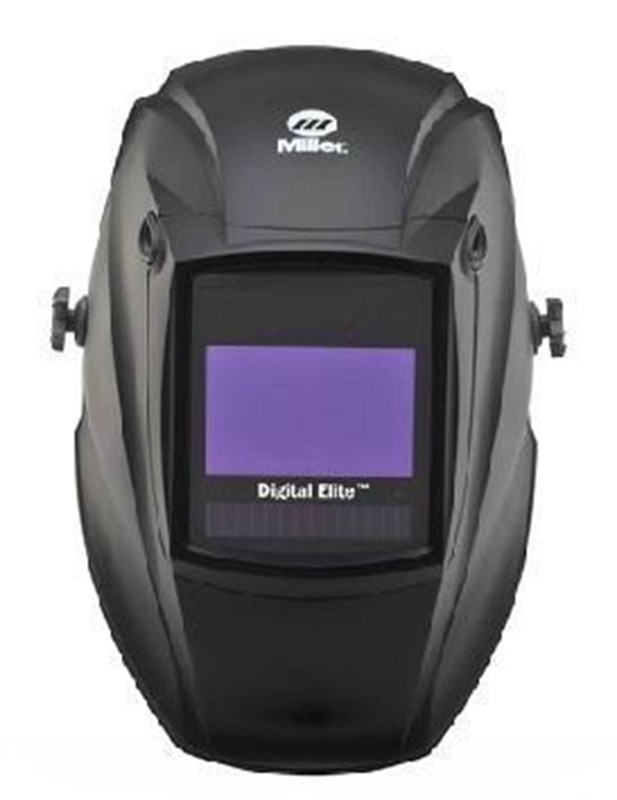

Miller Digital Elite Auto Darkening Welding Helmet #281000

Miller Digital Elite Welding Helmets feature four modes and four arc sensors for intense welding applications. Choose from the weld, cut, grind, and x-mode depending on the application.

This helmet has a 5 amps TIG rating for superior flame resistance. Use the excellent sensitivity and delay controls for your most precise welding jobs. Professional welders love this line for starter welding and arcs. The Miller Digital Elite Welding Helmets also offer additional adjustable settings for the ultimate comfort. Use an extra adjustable headband to get your most secure and comfortable fit.

All Miller Classic Series Digital Elite Welding Helmets come with a three-year warranty. Order yours today at an unbeatable price.

Features:

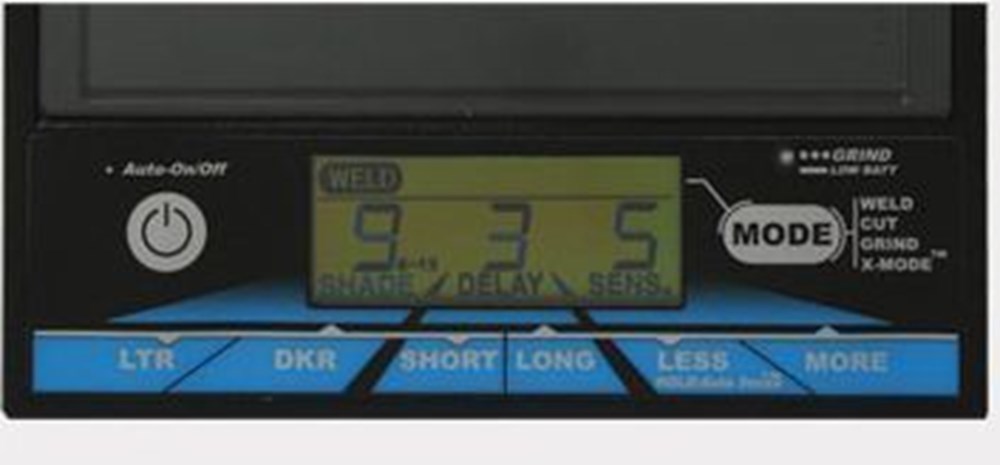

NEW Improved Digital Controls allow user to easily adjust mode and settings

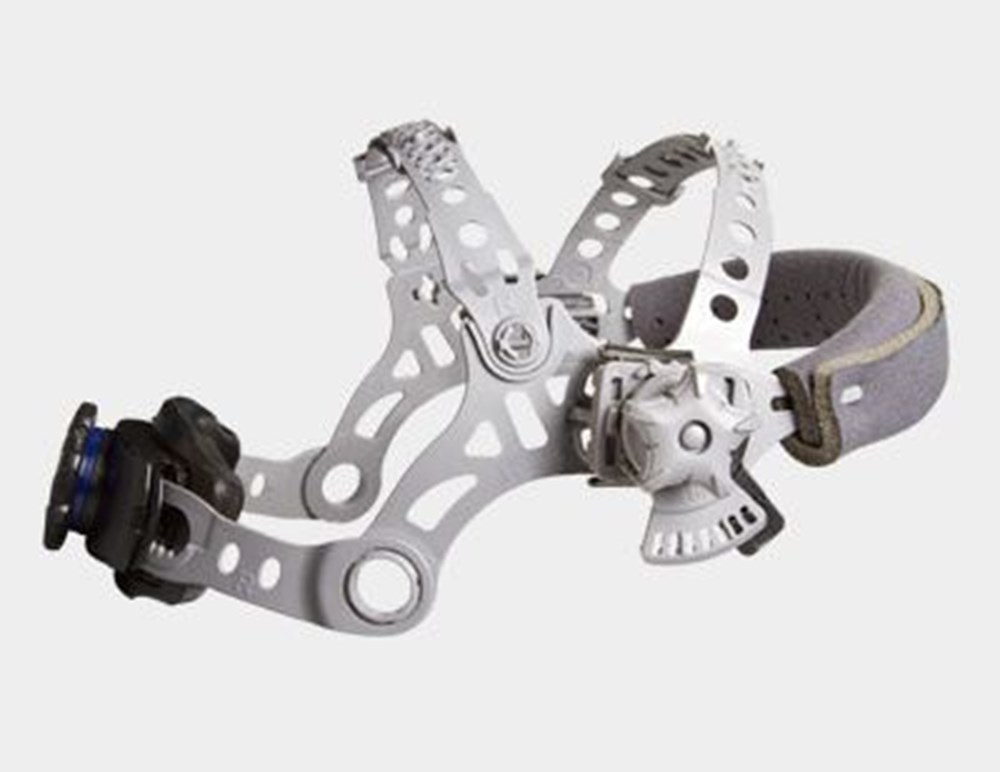

NEW Redesigned headgear with additional adjustability settings for better fit & comfort
NEW 3 Year Warranty
9.22 sq. in. viewing area
Four Arc Sensors for superior lens response
Four Operating Modes – Weld, Cut, Grind and X-Mode
Auto-On/Off power control triggers lens at the strike of an arc
Viewing Area – 9.22 sq in. 3.85 x 2.38 sq. in (97 x 60 mm)

Four Arc Sensors – 1/ 20,000 sec. lens speed
Sensitivity and Delay Control - .10 – 1.0 sec
TIG Rating - 5 amps and below
Lithium batteries (2) – with solar assist; up to 3,000 hours
Weight- 18 oz (482g)
Meets ANSI Z87.-2003 (High Impact) standard
Includes 5 outside cover lenses, 2 inside cover lenses and Helmet bag

Four Operating Modes:

Weld Mode - #8-13
Cut Mode - #5-8
Grind Mode – Light State #3.5
X-Mode – Can be used in Shades #8-13

Electromagnetic Arc Sensing eliminates: Sunlight interference - Outdoors, Low-Amperage Lens Opening - TIG, Lens Openings - Pipe/Curves, Obstructed Sensors - Hidden/Cavity Welds

Be sure to add these great accessories to your order!

View our complete selection of Autodarkening welding helmets or our helmet accessories other great safety equipment for sale online today.

Other Digital Elite Helmets:

Miller Digital Elite Welding Helmet #281000 Specifications
Viewing Area	9.22 sq. in. (59.48 sq. cm)
Operating Modes	Weld, cut, grind and X-Mode™
Shades	Cut: #5 - 8 (Cat #5 - 9) Weld: #8 - 13 (Cat #9 - 13)
Sensors	4
TIG Rating	5 amps and below
Switching Speed	1/20,000 sec.
Weight	18 oz. (510 g)
