Miller Trailblazer® 325 (KOHLER) w/ Electric Fuel Pump #907797002
Part Number: 907797002
UPC: 715959678414
Welding type:
MIG
TIG
Stick
Engine Driven
Material type:
Mild Steel
Stainless Steel
Aluminum
Fuel Type:
Documents
Videos
Kohler Gas Engine
Single Phase Generator
MIG Welding
Stick Welding
TIG Welding
3-Year Miller Warranty

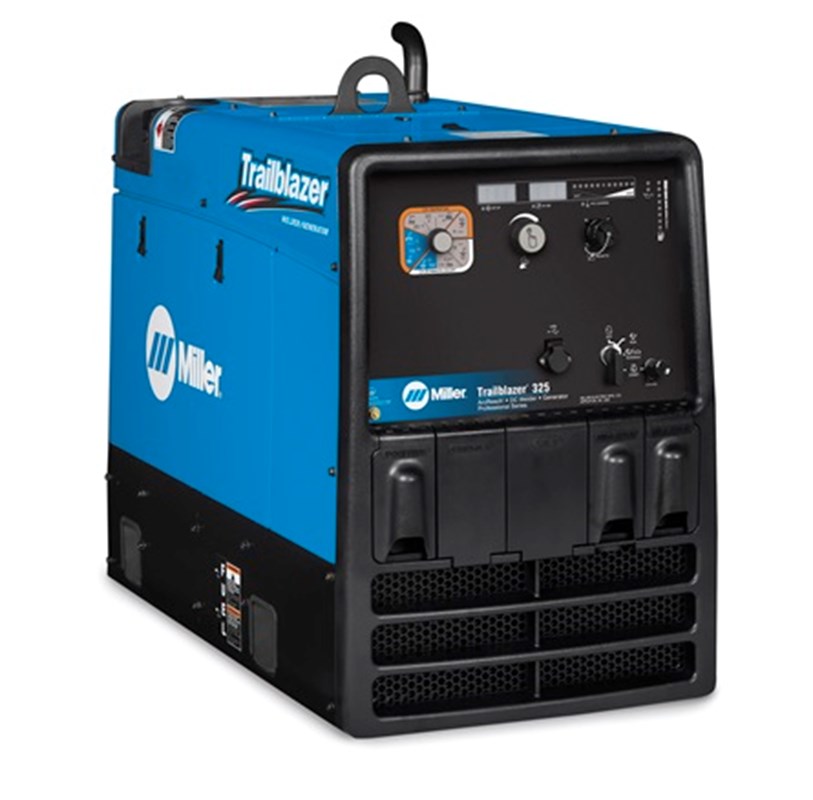

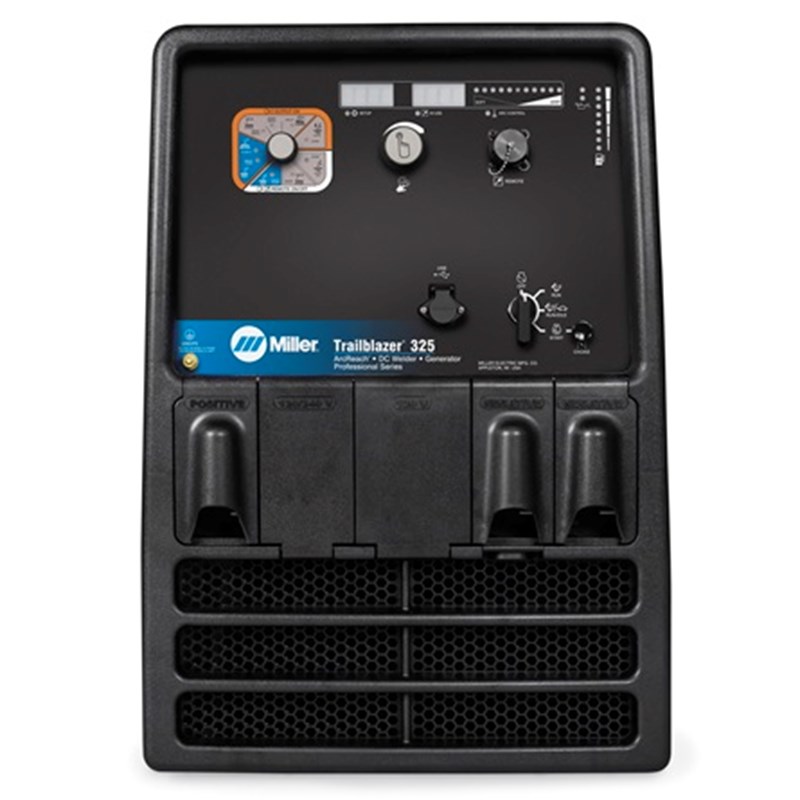

Miller Trailblazer® 325 (KOHLER) w/ Electric Fuel Pump #907797002
Trailblazer® welder/generators deliver unbeatable arc performance providing the smoothest, most stable arc in the industry. The Trailblazer exclusive Auto-Speed™ technology delivers superior runtimes, increased fuel efficiency, and improved welder/generator performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.
Trailblazer 325 Features:
- Unmatched arc performance
- Clean and powerful generator power
- Minimized refueling trips
- Auto-Speed Technology
- ArchReach® Technology
Other Versions of the Miller Trailblazer 325:
- 907754003 - Miller Trailblazer 325 (Kohler) EFI w/ CHG/JMP & EXL PWR
- 907799001 - Miller Trailblazer® 325 Diesel, GFCI
- 907797 - Miller Trailblazer® 325 (Kohler)
- 907797001 - Miller Trailblazer® 325 (Kohler), GFCI
- 907797002 - Miller Trailblazer® 325 (KOHLER) w/ Electric Fuel Pump
- 907797003 - Miller Trailblazer® 325 (Kohler) w/ Wireless Interface Control
- 907798 - Miller Trailblazer® 325 (Kohler) EFI
- 907798001 - Miller Trailblazer® 325 (Kohler) EFI w/ Wireless Interface Control
- 907798005 - Miller Trailblazer® 325 (Kohler) EFI w/Battery Charge/Jump Start, Excel Power & Wireless Interface Control
- 907798002 - Miller Trailblazer® 325 (Kohler) EFI w/ Excel Power
- 907798004 - Trailblazer® 325 (Kohler) EFI w/ Battery Charge/Jump Start & Excel Power (No ArcReach)
- 907798003 - Miller Trailblazer® 325 EFI w/GFCI, Excel Power & Wireless Interface Control
PROCESSES
- Air Carbon Arc Cutting & Gouging (CAC-A)
- Flux Cored (FCAW)
- MIG (GMAW)
- Stick (SMAW)
- TIG DC (GTAW-DC)
- Plasma (PAC)
| Title |
Trailblazer® 325 (Kohler) w/Electric Fuel Pump |
|---|---|
| Industries Interests | Fabrication Maintenance Repair Structural steel work Sheet metal Pipe |
| Engine Brand | Kohler |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | 2400 RPM 2800 RPM 3200 RPM 3600 RPM |
| Fuel Tank Size | 12 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 23.5 hp |
| Single Phase Generator Continuous Power | 10500 W |
| Single Phase Generator Peak Power | 12000 W |
| Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Net Width | 20 in |
| Net Height | 28 in |
| Net Length | 40.5 in |
| Net Weight | 488 lbs |
| Warranty |
3 Years |
| Weld Output | CC / CV |
SHIPPING DIMENSIONS |
|
| Height: | 20.00 Inches |
| Width: | 28.00 Inches |
| Length: | 41.00 Inches |
| Weight: | 500 Lb(s) 0 Oz |
Accessories
Consumables
Manufacturer Reviews
We are a structural steel contractor. This machine runs everything we need from stick to flux core wire. Truly love the EFI function as it uses approximately 2 gallons of gas in an 8 hour day. Only idles up under heavy welding conditions. Great Buy!
