REPLACED BY #W1009400

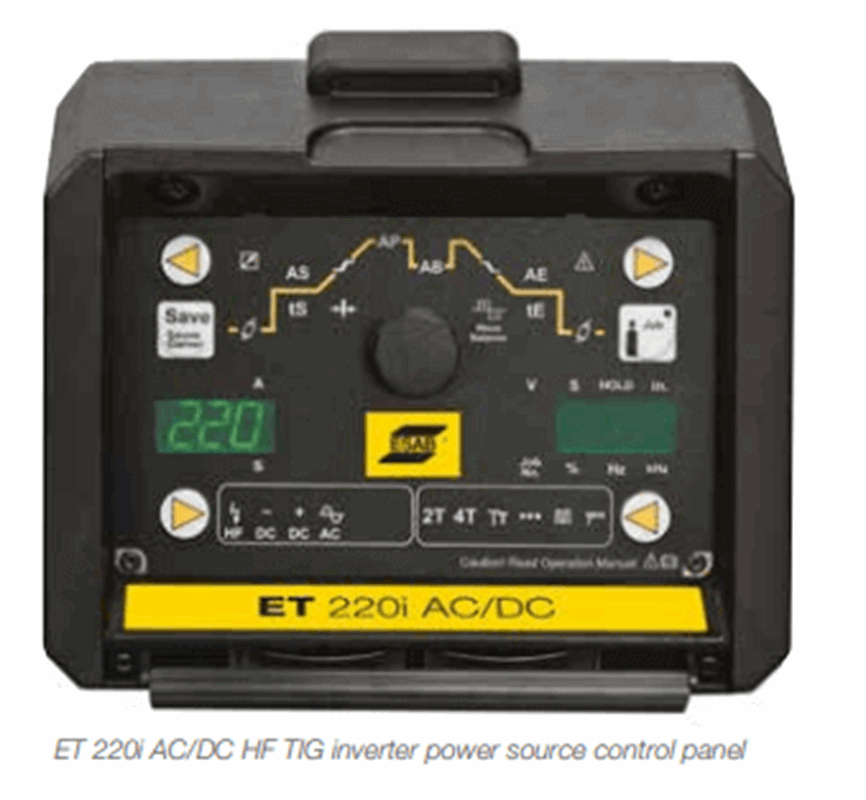

Professional grade ESAB ET 220i AC/DC Control Panel extremely durable

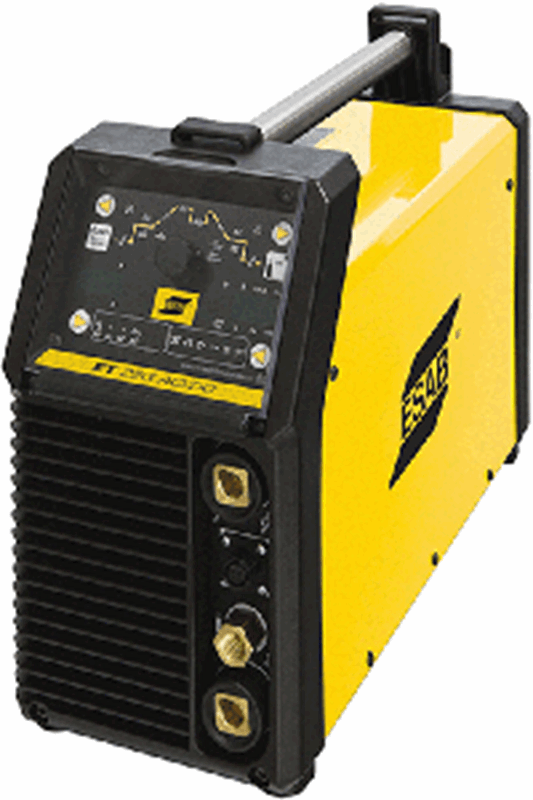

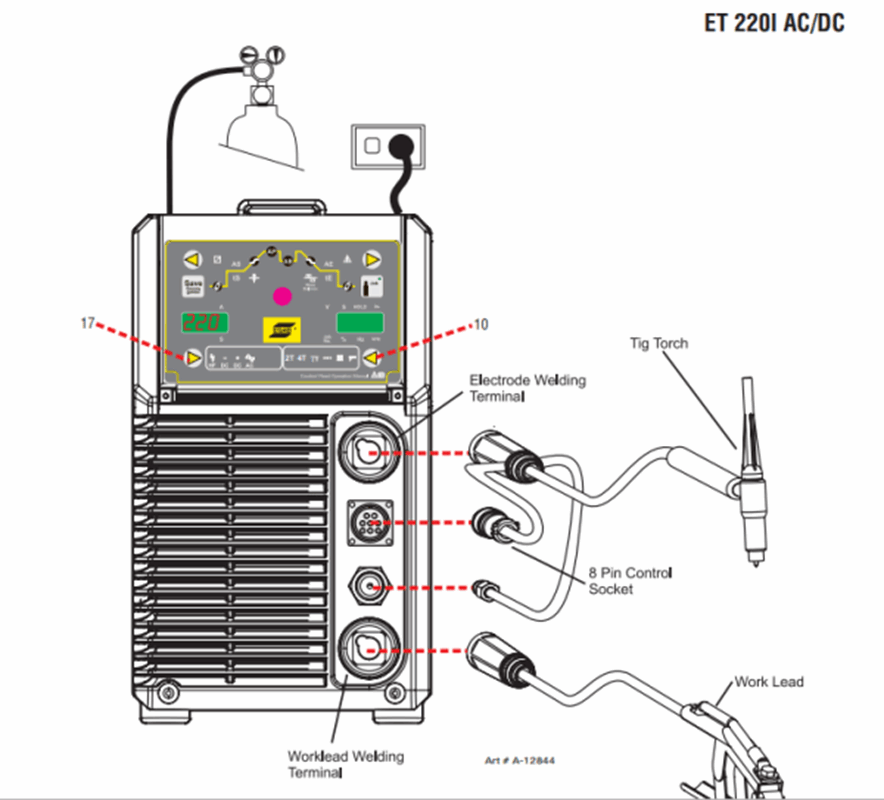

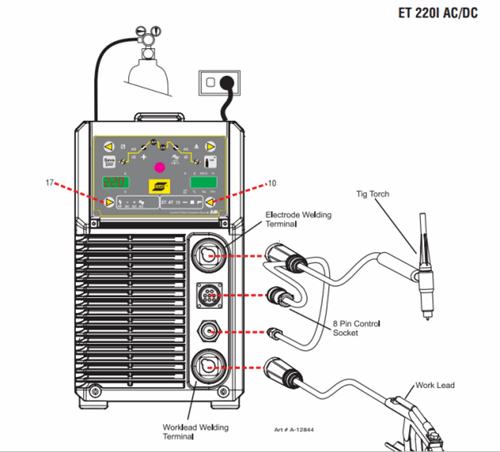

ET 220i AC/DC HT TIG Inverter Power Source System

ESAB ET 220i AC/DC HF #W1009300

Name: ET 220i AC/DC HF TIG Welder (208-460V 1/3PH) #W1009300
Brand: ESAB
SKU: W1009300

Part Number: W1009300

UPC: 822635026909

This Item Has Been Discontinued and has been replaced by ET 301i AC/DC TIG/Stick Welder (230-460V 1/3PH) #W1009400 - Level up today!

Features
Specs
Documents
Accessories
Consumables
FAQS

Multi-Process
Multi-Voltage
Three Phase
Lightweight and Portable
Single Phase

ESAB ET 220i AC/DC HF #W1009300

The ET 220i AC/DC is a high output, full digital control, AC/DC, Stick/Liftarc TIG/HF TIG, inverter power supply with expanded input voltage capabilities for maximum flexibility.

This unit is specially designed for precision TIG and Stick welding of all weldable materials. Superior, true square wave output combined with advanced balance and cleaning features to deliver unbeatable welding performance with extended tungsten life on aluminum and magnesium alloys without the need for continuous high frequency. The ESAB ET 220i is a versatile machine with high applicability across a variety of industries: ship/barge building, automotive, industrial and general fabrication, pipe construction, repair, and maintenance. This small, lightweight system can go virtually anywhere in the shop or out on the job site--its size and convenient carrying handle make it easy to take to hard-to-reach spots where most other machines can't go.

Features:

High-frequency start, Liftarc TIG start, automatic downslope, pulse, repeat (latch) function, memory function, and automatic gas management
Embedded microprocessor with digital controls
HF TIG and Liftarc TIG start with rapid pulse output
Tiptronic memory functions
Robust aluminum metal case

View our large selection of MIG, TIG, and Stick welders available at the best prices online.

Power source weight without power cable, lb. (kg)	29.5 (13.4)
Power source dimensions, L x W x H, in. (mm)	18 x 7.25 x 13 (483 x 185 x 326)
Standards	CSA E60974-1, ANSI/IEC 60974-1
Number of phases	1/3
Supply voltage, VAC – 1/3 ph	208-230/460 +/-15%
Supply frequency, Hz	50/60
Welding current range (Stick), A – 1 ph	10 – 150
Welding current range (Stick), A – 3 ph	10 – 170
Welding current range (TIG), A – 1 ph	5 – 200
Welding current range (TIG), A – 3 ph	5 – 220
Effective input current (I1eff), A (V) – 1 ph	37.3 (208) 33.7 (230)
Effective input current (I1eff), A (V) – 3 ph	16.8 (208) 15.2 (230) 8.2 (460)
Maximum input current (I1max), A (V) – 1 ph	37.3 (208) 33.7 (230) 18.1 (460)
Maximum input current (I1max), A (V) – 3 ph	24.5 (208) 22.1 (230) 11.9 (460)
Generator requirement, kW (kVA @ PF)	13 (16 @ 0.8)
Stick (SMAW), A @ V (phase)	150 @ 40% 26 (1) 170 @ 40% 26.8 (3)
Welding output 40ºC (104ºF), 10 min. A @ V (phase)	140 @ 60% 25.6 (1/3)
TIG (GTAW), A @ V (phase)	200 @ 45% 18.8 (1) 220 @ 40% 18.8 (3)
Welding output 40ºC (104ºF), 10 min. A @ V (phase)	180 @ 60% 17.2 (1) 160 @ 100% 16.4 (3)
Open circuit voltage, (VRD active), V	<113

SHIPPING DIMENSIONS
Height:	13.00 Inches
Width:	7.25 Inches
Length:	18.00 Inches
Weight:	29 Lb(s) 8 Oz

Accessories

Thermal Arc Foot Control For Fabricator 181i ...

$306.95

View

Thermal Arc Tig Torch and Accessories #W4013600

Thermal Arc Tig Torch & Accessories for Fabri...

$340.70

View

Consumables

Product Questions and Answers

Q - Is it certified for outdoor use? A - Yes, it's an IP23S approved design.

Q - What TIG torch do I need for this machine? A - The suggested torch is the ESAB 26 TIG Torch, which comes with a 12.5 ft lead and a starter consumables kit. The part number is W4013600.
