Miller Deltaweld® 452 Stationary Pkg 951237
Part Number: 951237
Welding type:
MIG
Power supply:
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
Multiprocess Welding
Three Phase Input
CENTERFIRE Contact Tips
Bernard BTB MIG Gun
3-Year Miller Warranty

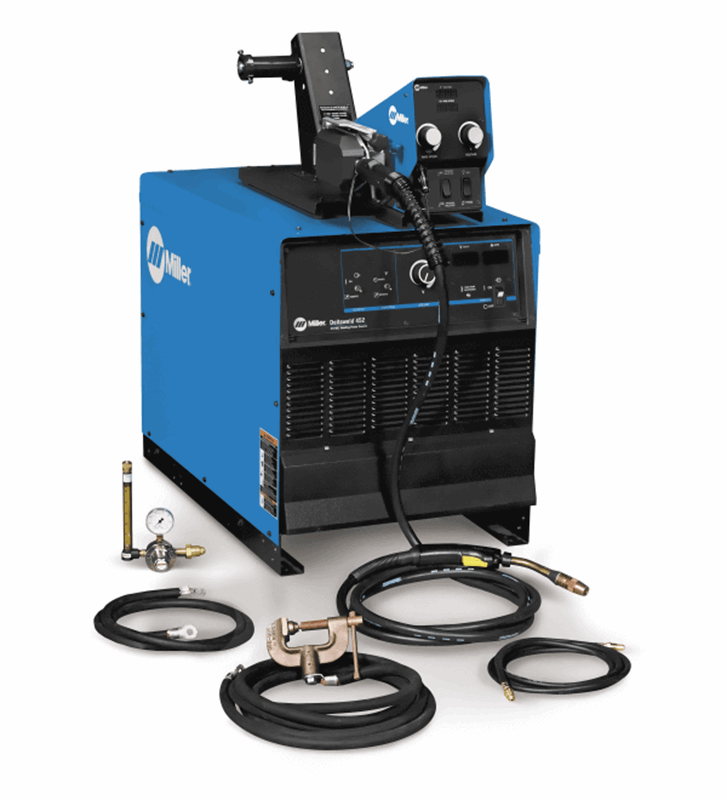

Miller Deltaweld® 452 200-208/230/460 V Stationary Pkg 951237 (THIS ITEM HAS BEEN DISCONTINUED)
Industry-standard for industrial MIG welding. Designed for manufacturing operations, with a 100 percent duty cycle for extended arc-on time.

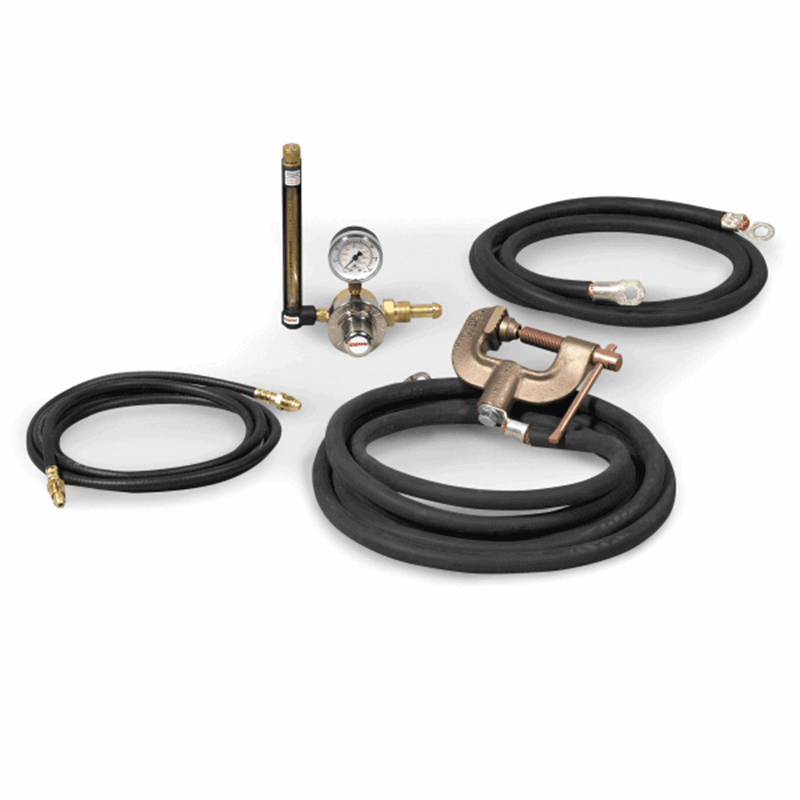

What's Included:
- .035 - .045 reversible dual V drive rolls
- 15ft 4/0 work cable with 600A C-Clamp
- 3ft gas hose
- 6ft 4/0 wire feeder to power source weld cable

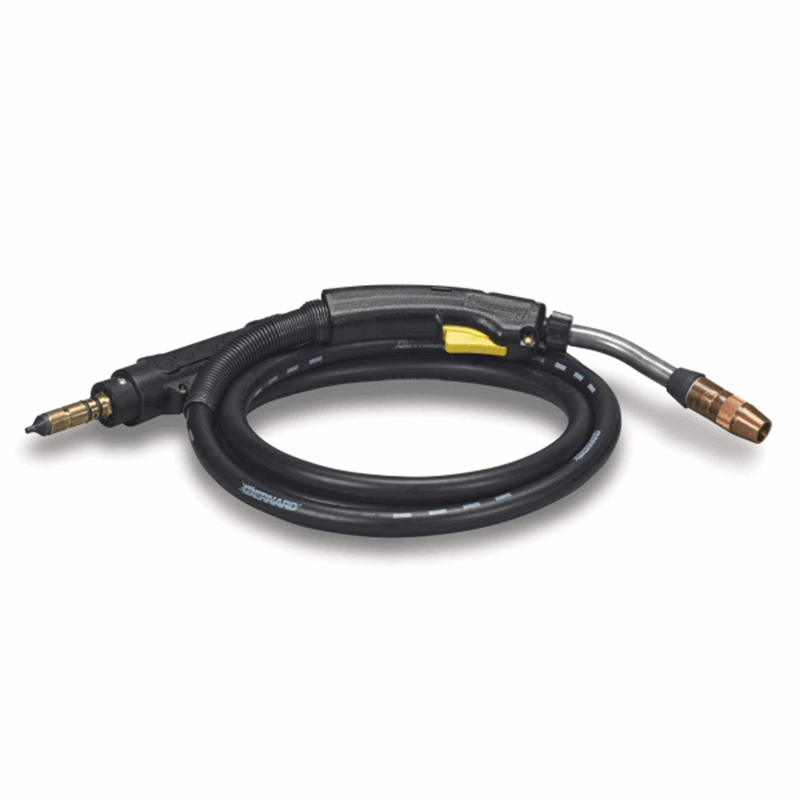

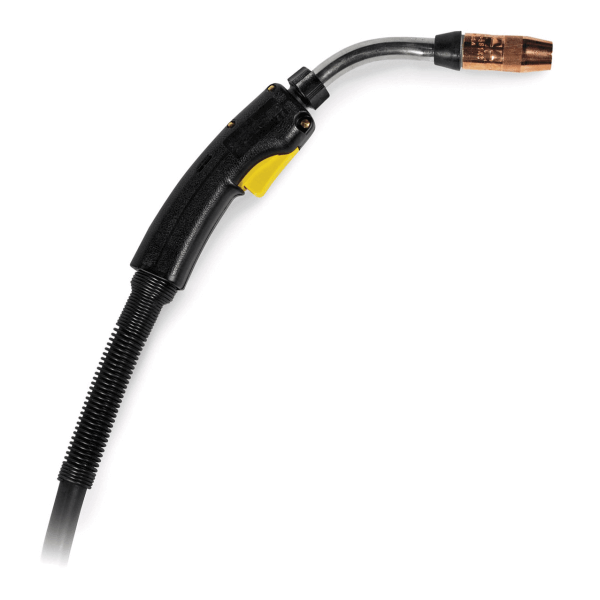

- Bernard™ BTB Gun 400 AMP, 15FT
- Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)

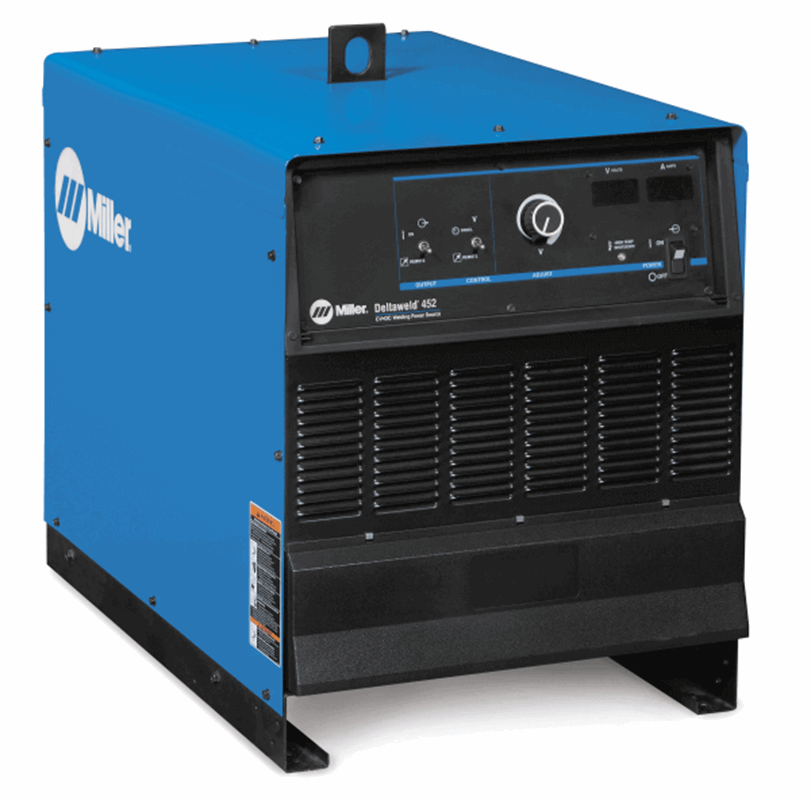

- Deltaweld 452 200-208/230/460 V
- Regulator/flowmeter

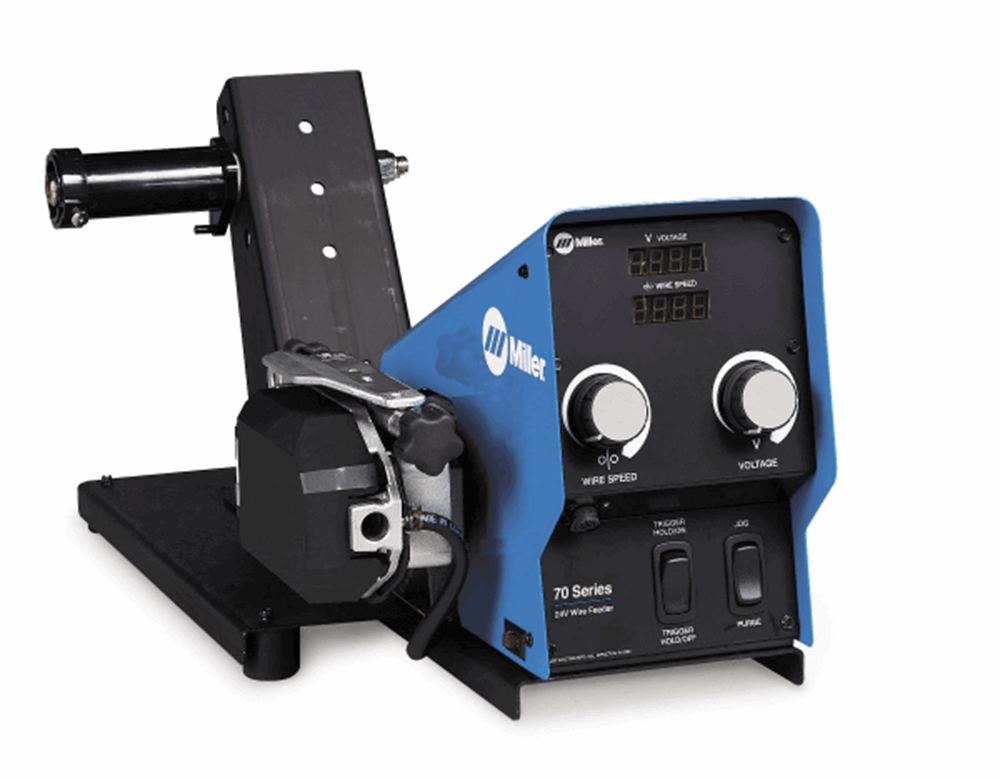

- S-74D Feeder
Features:
- Line Voltage Compensation
- Fan-On-Demand™
- Easy to Read Digital Meters
- 14-pin Receptacle
- 115-VAC Power
- Thermal Overload Protection
See our line of quality welding equipment or view our full selection of quality welding machines and welding helmets.
Other Versions of the Miller Deltaweld® 452:
Miller Deltaweld® 452 Processes
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Flux Cored (FCAW)
- MIG (GMAW)
Miller Deltaweld® 452 Specifications: |
|
| Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Manufacturing Railcar Boat / Yacht Shipbuilding |
| Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Input Voltage | 208 V 220/230/240 V 460/480 V |
| Input Phase | 3-Phase |
| Input Hz | 60 Hz |
| Rated Output | 450 A @ 38 V 100% Duty Cycle |
| Max Open Circuit Voltage | 48 VDC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
| Net Height | 30 in |
| Net Length | 38 in |
| Net Weight | 384 lbs |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Net Width | 23 in |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 33.00 Inches |
| Width: | 40.00 Inches |
| Length: | 46.00 Inches |
| Weight: | 508 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - What is the wire diameter capacity?
A - .023 to 5/64" (.6 to 2 mm)
Q - Can this be used for TIG welding aluminum?
A - No, it cannot TIG weld aluminum.
How to connect input power:
- See rating label.
Check rating label on unit and check input voltage available at site.
- Select conductor size and length using Section 2-10.
Conductors must comply with national, state, and local electrical codes. If applicable, use lugs of proper amperage capacity and correct hole size.
- Strain Relief.
Route conductors through strain relief.
- Grounding machine.
Connect green or green/yellow grounding conductor to machine grounding terminal first. Then connect input conductors to line terminals.
