Miller Deltaweld® 302 MIGRunner Pkg 951234
Part Number: 951234
Welding type:
MIG
Power supply:
220V 3 Phase
460V
Material type:
Mild Steel
Stainless Steel
Documents
Videos
MIG Welding
3-Phase Input
3-Year Power Warranty
Power Efficient

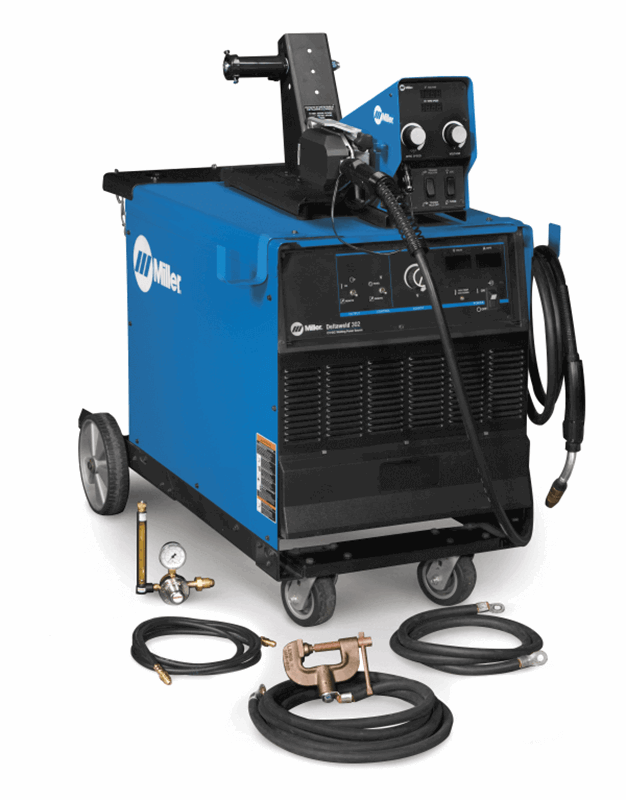

Miller Deltaweld® 302 200-208/230/460 V MIGRunner Pkg 951234
Industry standard for industrial MIG welding. Designed for manufacturing operations, with a 100 percent duty cycle for extended arc-on time.
What's Included:
- .035 - .045 reversible dual V drive rolls

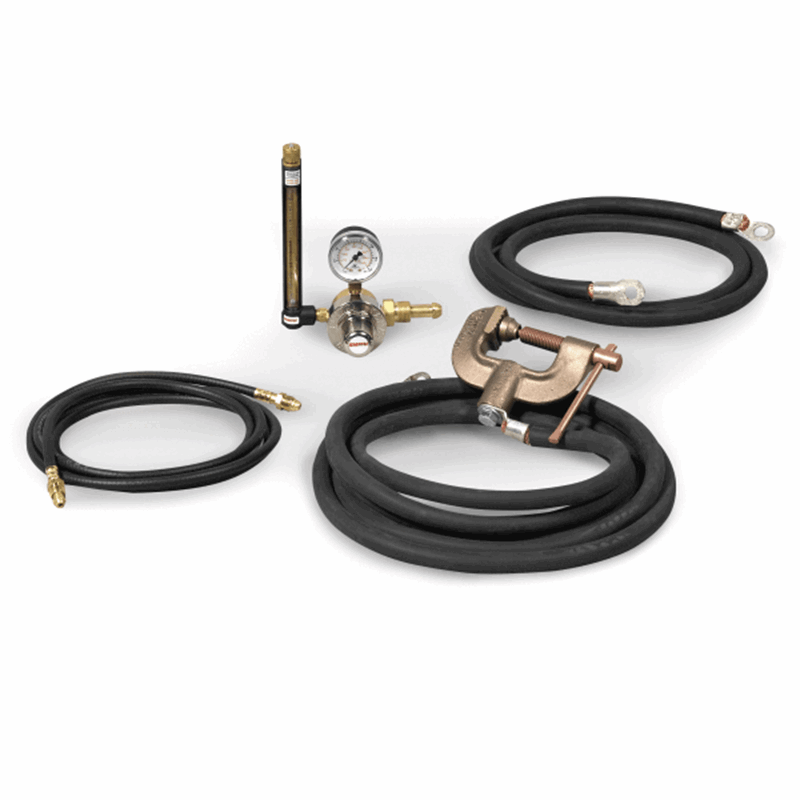

- 15ft 4/0 work cable with 600A C-Clamp
- 3ft gas hose
- 6ft 4/0 wire feeder to power source weld cable

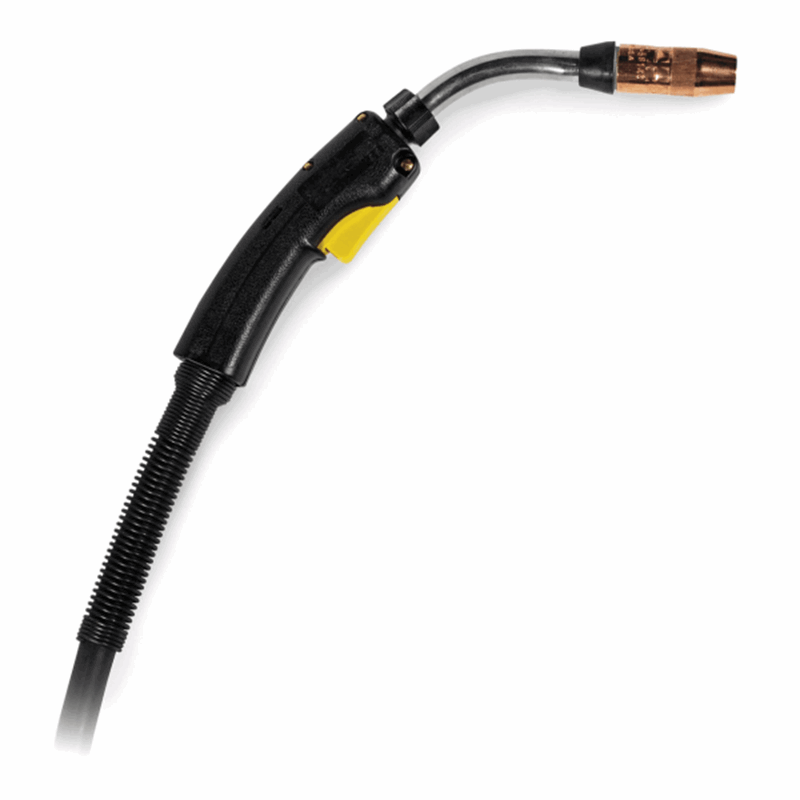

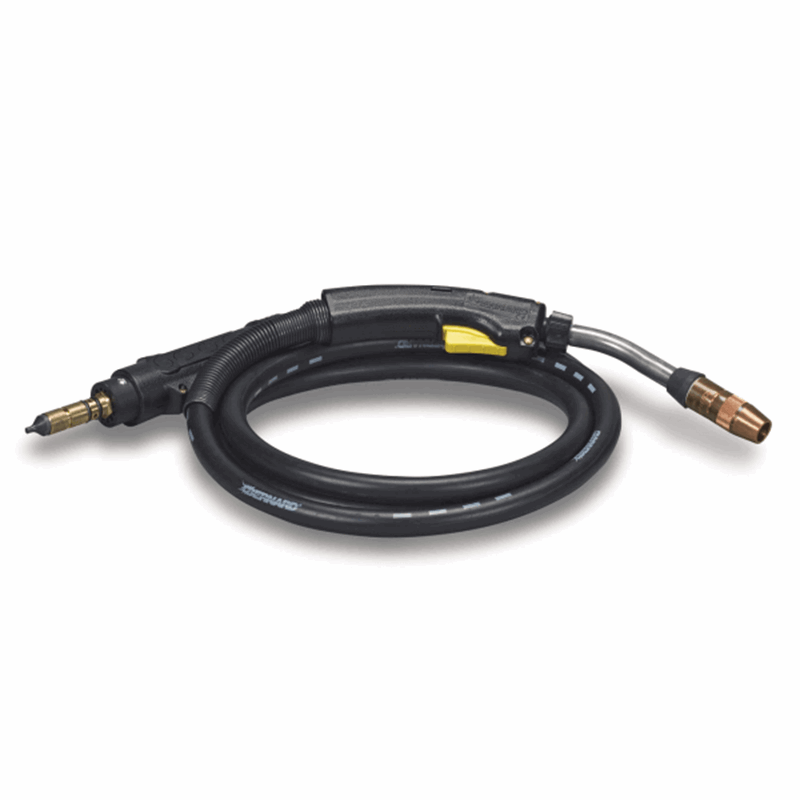

- Bernard™ BTB Gun 400 AMP, 15FT
- Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)

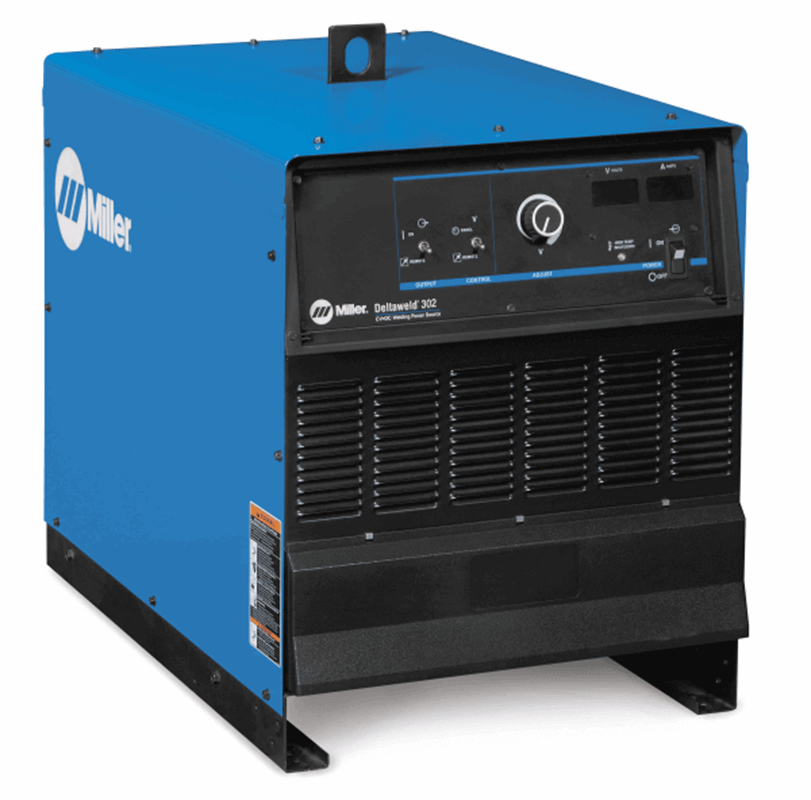

- Deltaweld 302 200-208/230/460 V with running gear and bottle rack
- Regulator/flowmeter

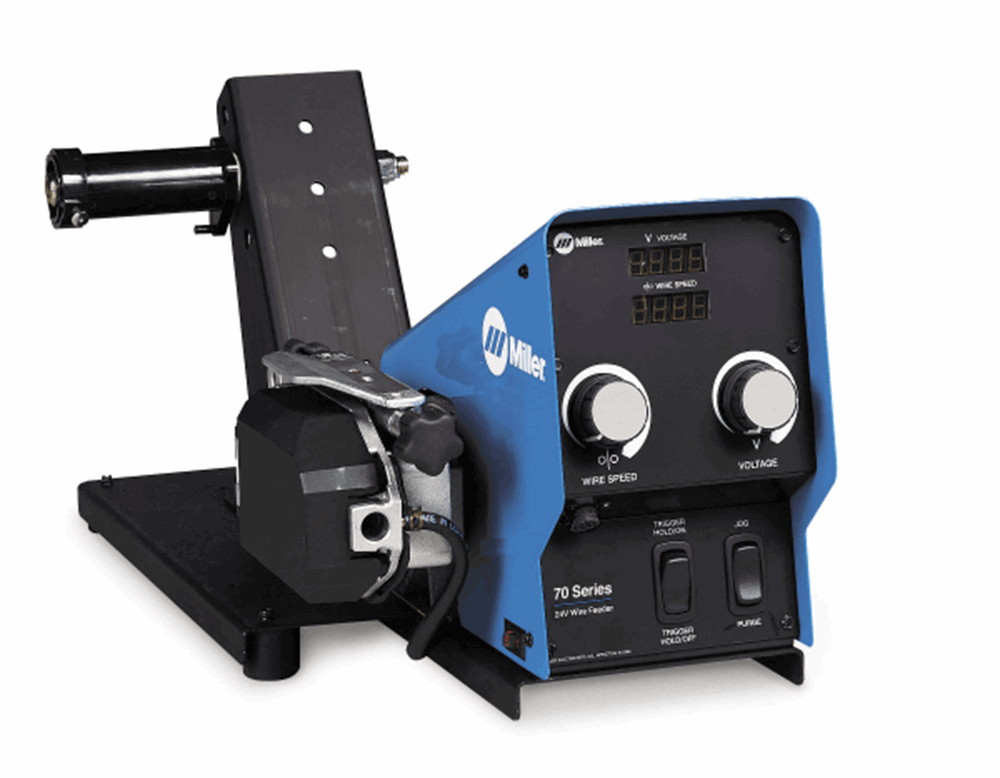

- S-74D Feeder
Features:
- Line Voltage Compensation
- Fan-On-Demand™
- Easy to Read Digital Meters
- 14-pin Receptacle
- 115-VAC Power
- Thermal Overload Protection
See our line of quality welding equipment and welding machine accessories or view our full selection of quality welding machines.
Miller Deltaweld® 302 Processes
- MIG (GMAW)
- Flux Cored (FCAW)
- Air Carbon Arc Cutting and Gouging (CAC-A)
Miller Deltaweld® 302 Specifications: |
|
| Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Manufacturing Railcar |
| Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Input Voltage | 208 V 220/230/240 V 460/480 V |
| Input Phase | 3-Phase |
| Input Hz | 60 Hz |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
| Net Height | 30 in |
| Net Length | 30.5 in |
| Net Weight | 323 lbs |
| Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
| Net Width | 23 in |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 36.00 Inches |
| Width: | 47.00 Inches |
| Length: | 50.00 Inches |
| Weight: | 479 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Will this work with the SuitCase wire feeder?
A - Yes, the SuitCase 12RC Wire Feeder will work with this. With a 300A Gun it's part #951580, with a 300 A Gun Pre Postflow Burnback it's part #951599.
Q - What is the output rating?
A - 300 A at 32 VDC, 100% duty cycle
