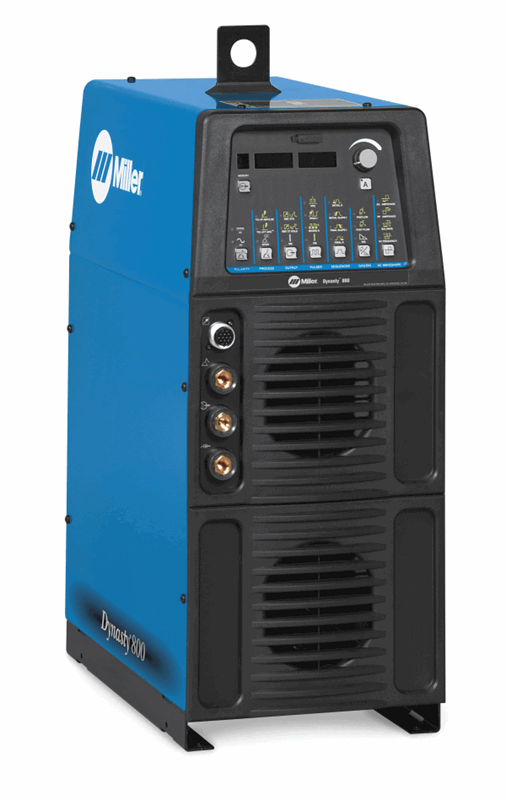

Miller Dynasty® 800 208-575 V 907719
The Dynasty 800 is capable of welding up to 1" aluminum. Total arc control provides maximum productivity and weld quality. It's a powerful and compact welding machine ideal for conserving space and energy.
What's Included:
- Dynasty® 800
- (2) Thread lock adapters (225029)
- (1) Water-cooled thread lock torch adapter (225028) for #18 or #20 torches
- Quick Reference Guide
Features:
- AC and DC TIG Features
- AC Waveforms
- Blue Lightning™ - High-Frequency Arc Starter
- Program memory
- Cooler Power Supply (CPS)
- Meter Calibration
- Stick Features
- Auto-Line Power Management Technology
- Cooler-On-Demand™
- Upgradeable and Expandable
See our line of quality welding equipment or view our full selection of quality welding machines and safety equipment.
Other Versions of the Miller Dynasty® 800:
Legacy Versions of the Miller Dynasty® 800:
Miller Dynasty® 800 Processes
- Pulsed TIG (GTAW-P)
- Stick (SMAW)
- TIG (GTAW)
- TIG AC (GTAW-AC)
- TIG DC (GTAW-DC)
- Aluminum Welding
- Air Carbon Arc Cutting and Gouging (CAC-A)
Miller Dynasty® 800 Specifications: | |
---|---|
Industries Interests | Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing |
Material Thickness |
Steel: 0.020 in. (0.5 mm) - 1 in. (25.4 mm) Aluminum: 0.020 in. (0.5 mm) - 1 in. (25.4 mm) |
Current Type | AC / DC |
Input Voltage | 208 V 220/230/240 V 380/400 460/480 V 575 V |
Input Phase | 1 and 3-Phase |
Input Hz | 50 / 60 Hz |
CACA Thickness | 3/8 in |
Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
Net Height | 34.5 in |
Net Length | 22 in |
Net Weight | 198 lbs |
Weldable Metals | Aluminum Steel Specialty Metals Stainless Steel |
Net Width | 13.75 in |
Max Open Circuit Voltage | 75 VDC |
Amperage Min |
5 A |
Amperage Max | 800 A |
Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 39.00 Inches |
Width: | 18.00 Inches |
Length: | 26.00 Inches |
Weight: | 232 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - How much does it weigh?
A - 370lbs
Q - Can this Mig weld?
A - The Dynasty 800 is for TIG and Stick welding only.
