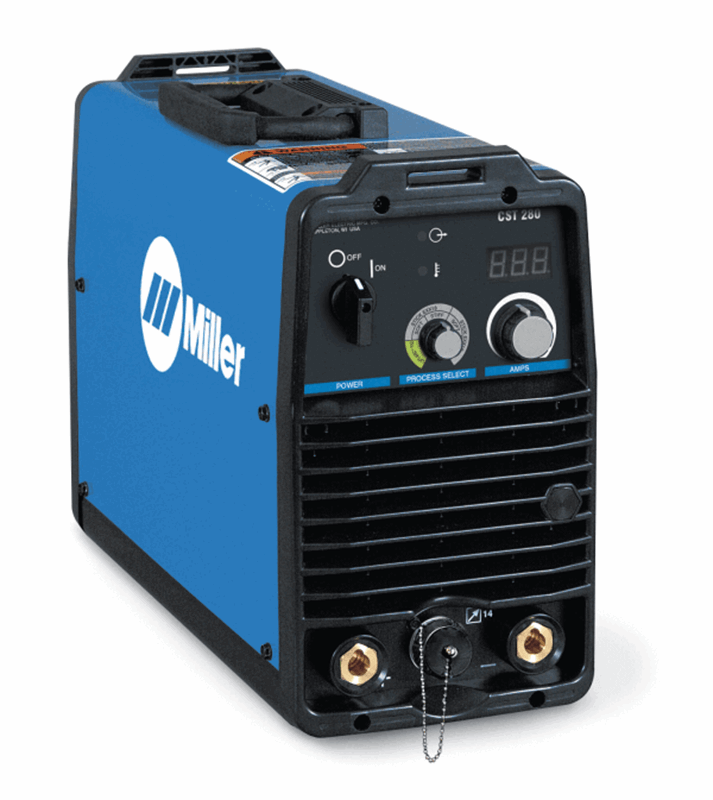

Miller CST™ 280 Tweco, Meter 907696
Part Number: 907696
Welding type:
TIG
Stick
Power supply:
220V Single Phase
220V 3 Phase
460V
Material type:
Mild Steel
Documents
Videos
Multi-Process
Multi-Voltage
Multi-Phase
3-Year Warranty
Miller CST™ 280 220-230/460-575 V, Tweco, Meter 907696
Designed for Stick/TIG welding pipe and plate in the construction industry, this small, durable, go-anywhere welder delivers 280 amps of superior Stick performance, up to 3/16” in diameter. LiftArc™ delivers smooth TIG starts without high frequency.
What's Included:
- Power cord
Features:

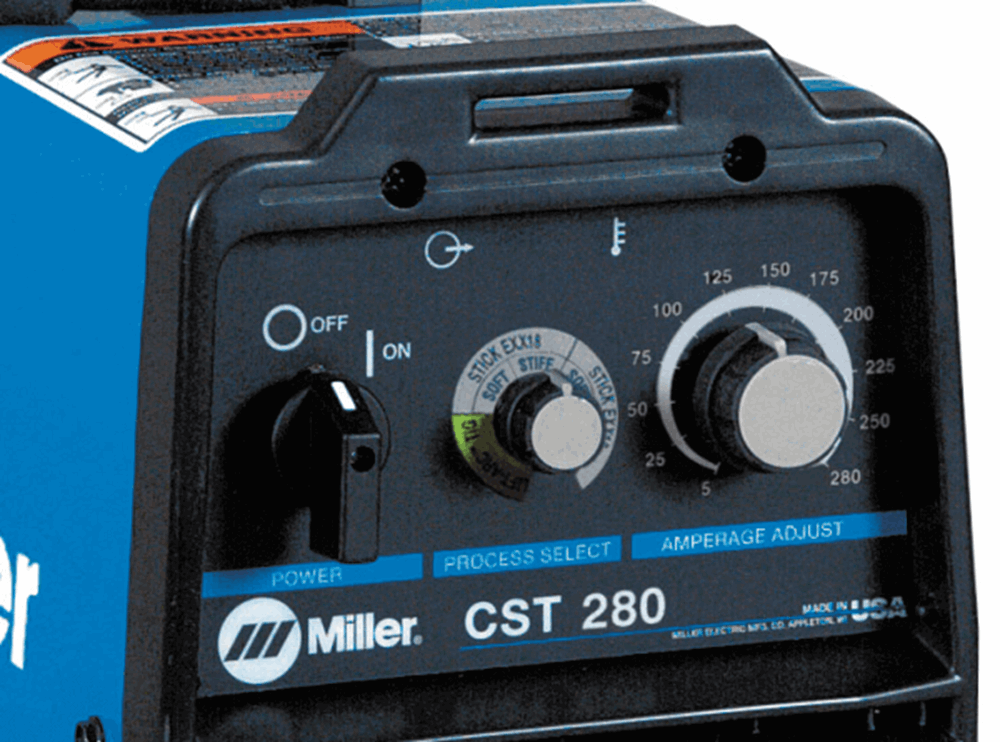

- Superior Stick Arc Performance
- Lift-Arc™
- Simple Voltage Changeover
- Simple To Operate
- Optional Digital Meter
- Remote Amperage Control

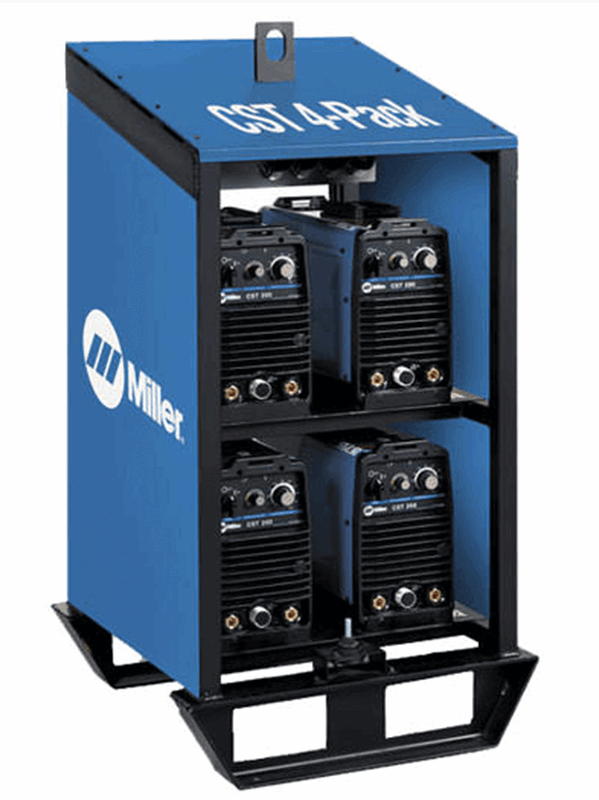

- 4 and 8 Pack Racks
- Twist Lock Receptacles
See our line of quality welding equipment or view our full selection of quality welding machines.
Miller CST™ 280 Processes
- Stick (SMAW)
- TIG DC (GTAW-DC)
Miller CST™ 280 Specifications: |
|
| Industries Interests | Construction High Purity Processing Infrastructure Maintenance and Repair - Field Operations Maintenance and Repair - In Plant Mechanical Contracting Pipe Fabrication / Construction Shipbuilding |
| Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Input Voltage | 220/230/240 V 460/480 V 575 V |
| Input Phase | 1 and 3-Phase |
| Input Hz | 50 / 60 Hz |
| Portability | Handle(s) |
| Net Height | 13.5 in |
| Net Length | 18 in |
| Net Weight | 41 lbs |
| Weldable Metals | Stainless Steel Steel |
| Net Width | 7.5 in |
| Rated Output | 280 A @ 31.2 V, 35% Duty Cycle (Three Phase) 200 A @ 28 V, 100% Duty Cycle (Three Phase) 200 A @ 28 V, 50% Duty Cycle (Single Phase) 150 A @ 26 V, 100% Duty Cycle (Single Phase) |
| Max Open Circuit Voltage | 77 VDC |
| Amperage Range | 5 ADC - 280 ADC |
| Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 12.00 Inches |
| Width: | 15.00 Inches |
| Length: | 24.00 Inches |
| Weight: | 43 Lb(s) 0 Oz |
Accessories
Consumables
Product Questions and Answers
Q - Does this include the power cable?
A - Yes, a 6 ft power cable is included
Q - Can standard remote amperage controls be used with this?
A - Yes, a 14-pin receptacle on the front of the machine lets you use any standard remote amperage control.
