Miller Gold Star® 452 TIG/Stick Welder #903400

Name: Gold Star® 452 TIG/Stick Welder #903400
Brand: Miller Welding
SKU: 903400

Part Number: 903400

This Item Has Been Discontinued and has been replaced by XMT® 450 CC/CV Multi-Process Welder (575 V) #907482 - Level up today!

Features
Specs
Documents
Accessories
Consumables
FAQS

Multi-Process
Multi-Voltage
Three Phase
3-Year Power Warranty

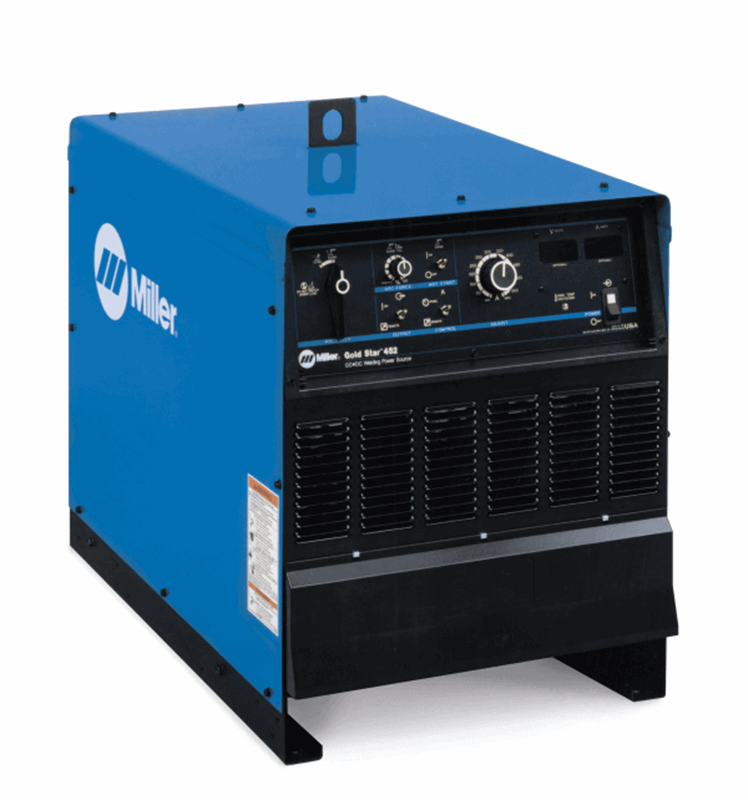

Miller Gold Star® 452 230/460/575 V903400

The Miller Gold Star 452 with 230/460/575 volts is the gold standard in welding and metal fabrication all across the world. From steel erection to shipbuilding, from foundries to refineries, the Gold Star Series from Miller is known by welders the world over for rugged, reliable performance and superior arc characteristics. Its an obvious decision as to why it's the gold standard, as the Stick, TIG, MIG, Flux-cored, and Air carbon arc cutting and gouging capabilities are second to none. Trusted by welders that need rugged yet reliable performance, the Gold Star 452 230/ 460 V is the only choice. Don't compromise with multiple machines when you can standardize with one multi-process welding machine.

Heavy Industrial Applications:

Steel Erection
Pipe Welding
Tank/pressure vessel fabrication
Maintenance/repair
Shipbuilding
Construction
Refineries
Chemical manufacturing facilities
Steel manufacturing facilities
Foundries

Processes:

MIG (GMAW)
Stick (SMAW)
TIG (GTAW)
Flux-cored (FCAW)
Air carbon arc (CAC-A)
cutting and gouging

Miller Gold Star® 452 230/460/575 V903400:

Feature	Benefit
Superior Arc Welding	Provides versatility and outstanding arc performance in CV (MIG) and CC (stick, TIG, CAC-A), and Flux-cored (FCAW)
Built-in arc control	Lets you get in tight without sticking the electrode. An electrode compensation circuit ensures consistent arc control performance regardless of the electrode size.
Thermal Overload Protection	Helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
Line Voltage Compensation	Ensures consistent weld performance by keeping output power constant even if primary input power varies by ±10 percent.
Hot Start™	Makes it easy to start difficult stick electrodes such as E-6010 and E-7018.
Power Efficient	For exceptional value and return on your investment.
115-Volt Duplex Receptacle	Provides 15 amps of auxiliary power.
Thermal Overload Protection	Helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
Power Cord Strain Relief	Provided for your convenience at installation.
Fan-On-Demand™	The cooling system operates only when needed. Reduces contaminants drawn into the machine and excess noise in work areas.
Optional Digital voltmeter and Ammeter	are easy to read, even at 30 feet (9.2 m).
Simple Control Panel	Features single range amperage/voltage adjustment. Provides easy and efficient operation.

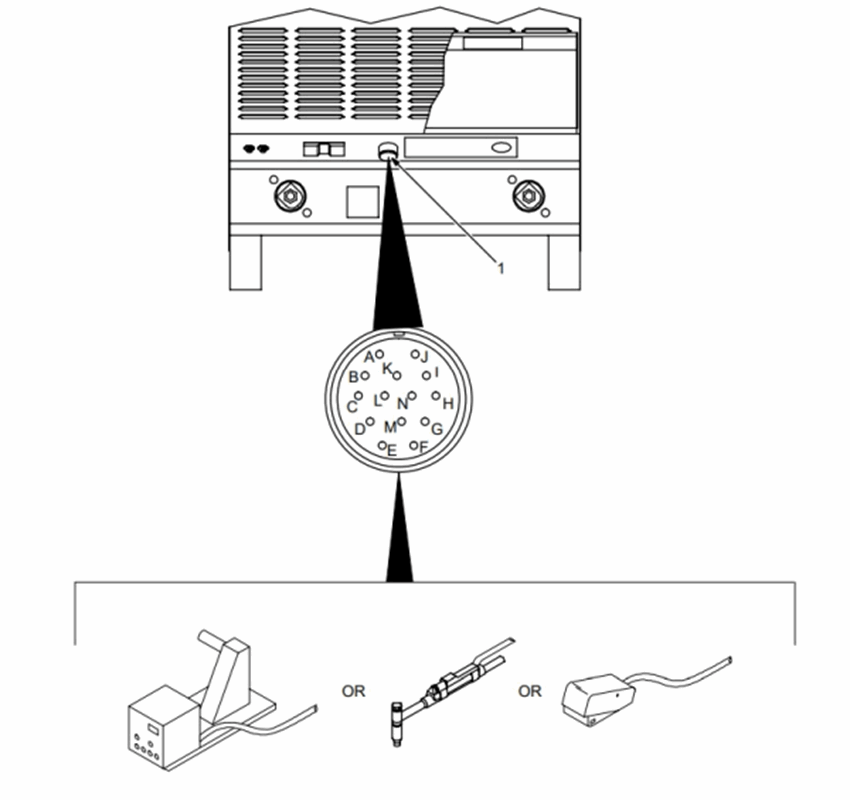

14-pin Receptacle	Provides quick, direct connection to Miller 14-pin wire feeders and accessories.
Enclosed Circuit Boards	Provides additional protection from contaminants resulting in a longer service life.
PC Board Protection	Prevents the wire feeder power or other stray voltages (less than 115 VAC) from harming the power source PC board.

View our large selection of Mig, Tig, and Stick welders with the greatest values online.

Miller Gold Star® 452 Processes

Air Carbon Arc Cutting and Gouging (CAC-A)
Stick (SMAW)
TIG DC (GTAW-DC)

Gold Star ® 452 Specifications:
Industries Interests	Aerospace Construction Heavy Equipment Manufacturing Infrastructure Manufacturing Railcar Shipbuilding Boat / Yacht High Purity Processing
Carbon Diameter	5/16 in (7.9 mm)
Current Type	DC
Input Voltage	220/230/240 V 460/480 V 575 V
Input Phase	3-Phase
Input Hz	60 Hz
Portability	Lift Eye (Standard) Running Gear / Cart (Optional)
Net Height	30 in
Net Length	38 in
Net Weight	404 lbs
Weldable Metals	Stainless Steel Steel
Net Width	23 in
Rated Output	450 A at 38 V, 60% duty cycle
Max Open Circuit Voltage	72 VDC
Amperage Range	20 DC - 590 DC
Warranty	3 Years Miller's True Blue Warranty
