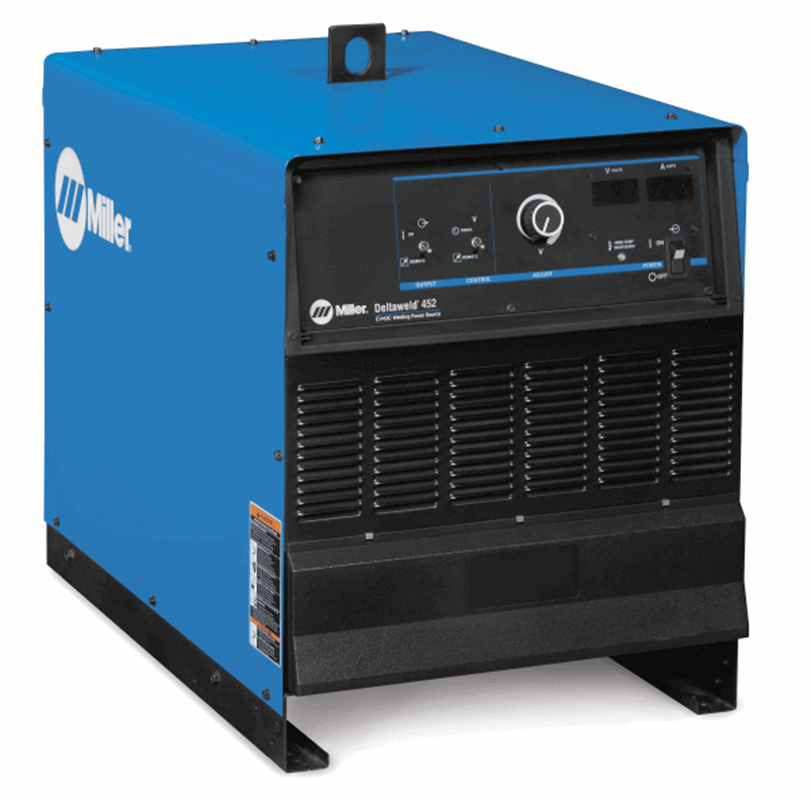

Miller Deltaweld® 452 MIG Welder (208-460V, 3PH) #903377

Welding type:

MIG
Power supply:

220V 3 Phase

460V
Material type:

Mild Steel

Stainless Steel

Industry standard for industrial MIG welding. Designed for manufacturing operations, with 100 percent duty cycle for extended arc-on time.
Line Voltage Compensation
Ensures consistent weld performance even when primary power varies.
Fan-On-Demand™
Cooling system operates only when needed. Reduces contaminants drawn into the machine and excess noise in work areas.

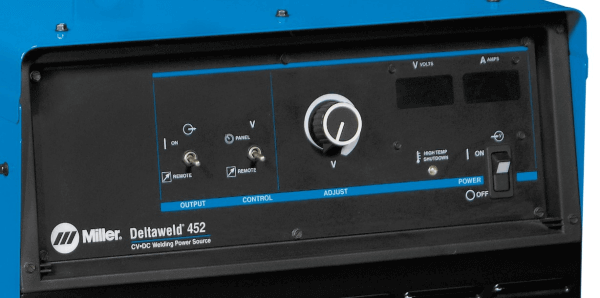

Easy to Read Digital Meters
Ensure accuracy when presetting and reading actual voltage and amperage.
14-pin Receptacle
Provides a quick, direct connection to Miller® wire feeders. Capable of remote voltage control.
115-VAC Power
To power tools and coolant systems.
Thermal Overload Protection
Light indicates power shutdown. Helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
Deltaweld® 452 Specifications: |
|
Industries Interests | Aerospace Heavy Equipment Manufacturing Manufacturing Railcar Boat / Yacht Shipbuilding |
Current Type | DC |
Input Voltage | 208 V 220/230/240 V 460/480 V |
Input Phase | 3-Phase |
Input Hz | 60 Hz |
Portability | Lift Eye (Standard) Running Gear / Cart (Optional) |
Net Height | 30 in |
Net Length | 38 in |
Net Weight | 384 lbs |
Weldable Metals | Aluminum Specialty Metals Stainless Steel Steel |
Net Width | 23 in |
Rated Output | 400 A at 38 VDC, 100% duty cycle |
Warranty | 3 Years Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 24.00 Inches |
Width: | 33.00 Inches |
Length: | 40.00 Inches |
Weight: | 400 Lb(s) 0 Oz |
With power off, open rear access door.
Using 3/8” socket wrench, turn fuse holder cover counterclockwise to access fuse.
Pull out old fuse and insert new fuse with flat end of fuse in the fuse holder cover.
Rotate fuse holder cover clockwise to secure new fuse in place.
