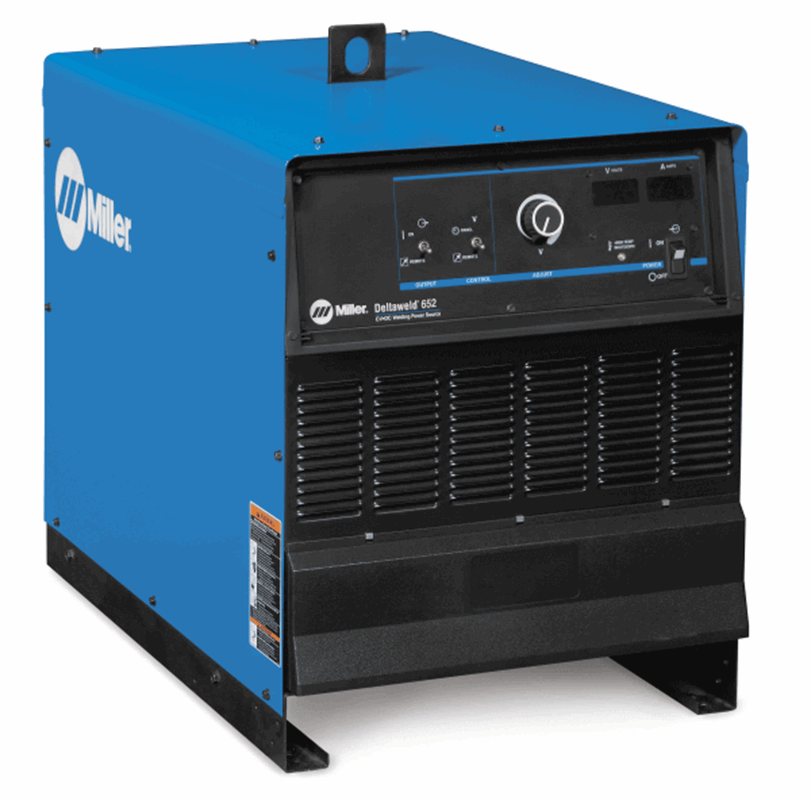

Miller Deltaweld® 652 230/460/575 V #903396

Name: Deltaweld® 652 #903396
Brand: Miller Electric
SKU: 903396

Part Number: 903396

Miller Deltaweld® 652 230/460/575 V 903396

Industry standard for industrial MIG welding. Designed for manufacturing operations, with 100 percent duty cycle for extended arc-on time.

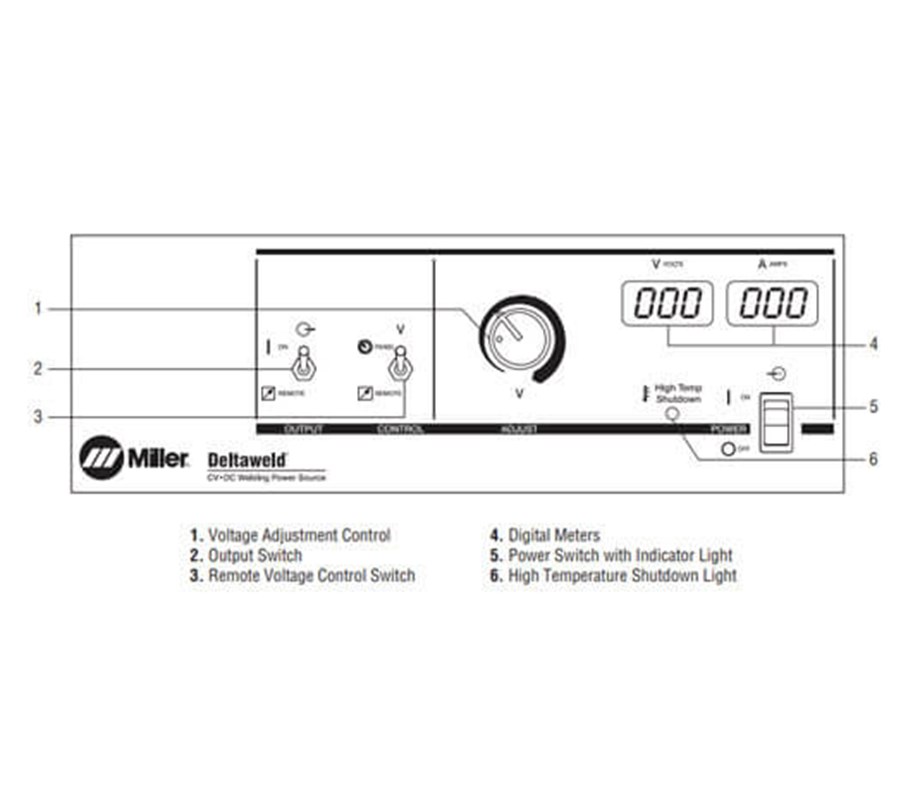

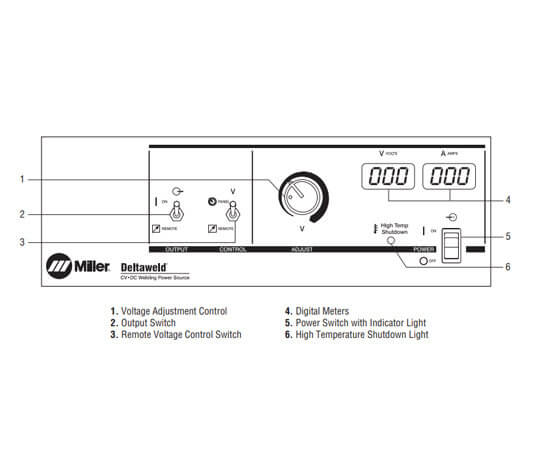

Line Voltage Compensation - Ensures consistent weld performance even when primary power varies.

Fan-On-Demand™ - Cooling system operates only when needed. Reduces contaminants drawn into the machine and excess noise in work areas.

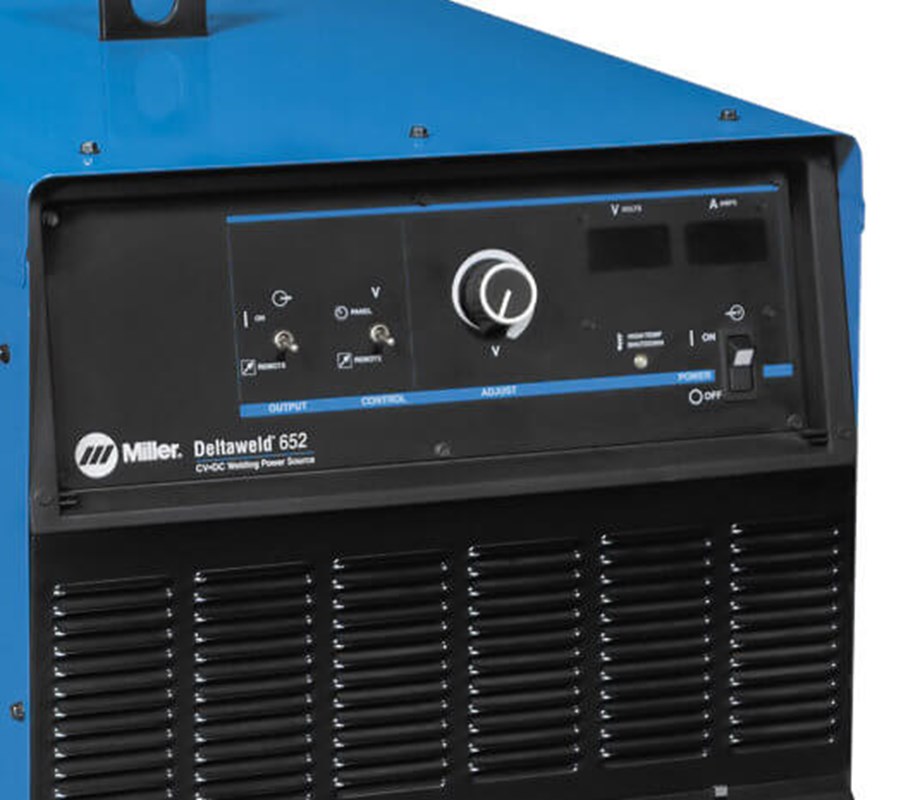

Easy to Read Digital Meters - Ensure accuracy when presetting and reading actual voltage and amperage.

14-pin Receptacle - Provides a quick, direct connection to Miller® wire feeders. Capable of remote voltage control.

115-VAC Power - To power tools and coolant systems.

Thermal Overload Protection - Light indicates power shutdown. Helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.

Deltaweld® 652 Specifications:
Industries Interests	Aerospace Heavy Equipment Manufacturing Manufacturing Railcar Boat / Yacht Shipbuilding
Current Type	DC
Input Voltage	220/230/240 V 460/480 V 575 V
Input Phase	3-Phase
Input Hz	60 Hz
Portability	Lift Eye (Standard) Running Gear / Cart (Optional)
Net Height	30 in
Net Length	38 in
Net Weight	472 lbs
Weldable Metals	Aluminum Specialty Metals Stainless Steel Steel
Net Width	23 in
Rated Output	650 A at 44 VDC, 100% Duty Cycle
Max Open Circuit Voltage	54 VDC
Warranty	3 Years Miller's True Blue Warranty
