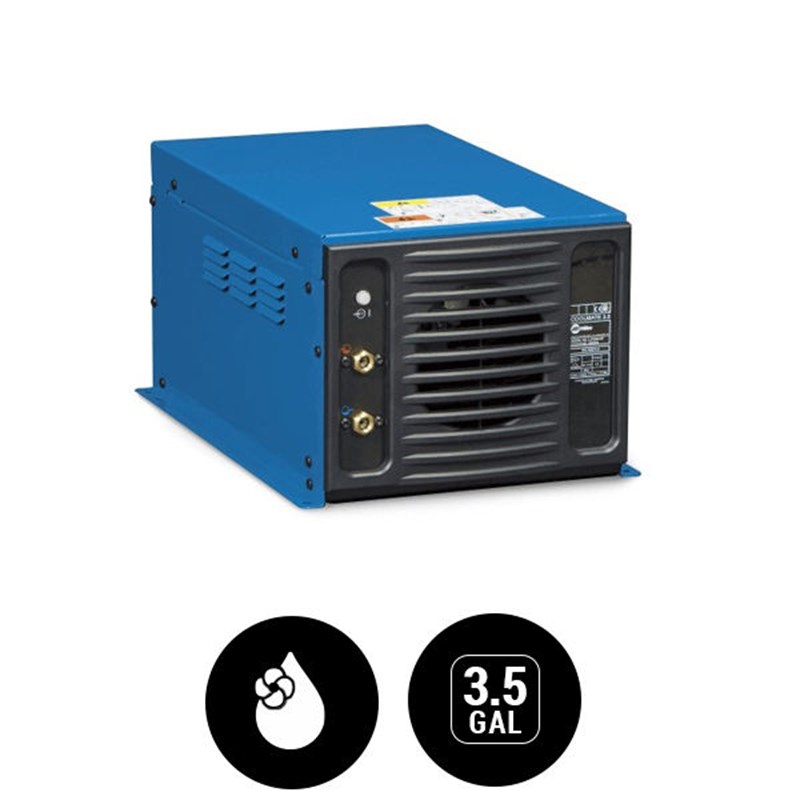

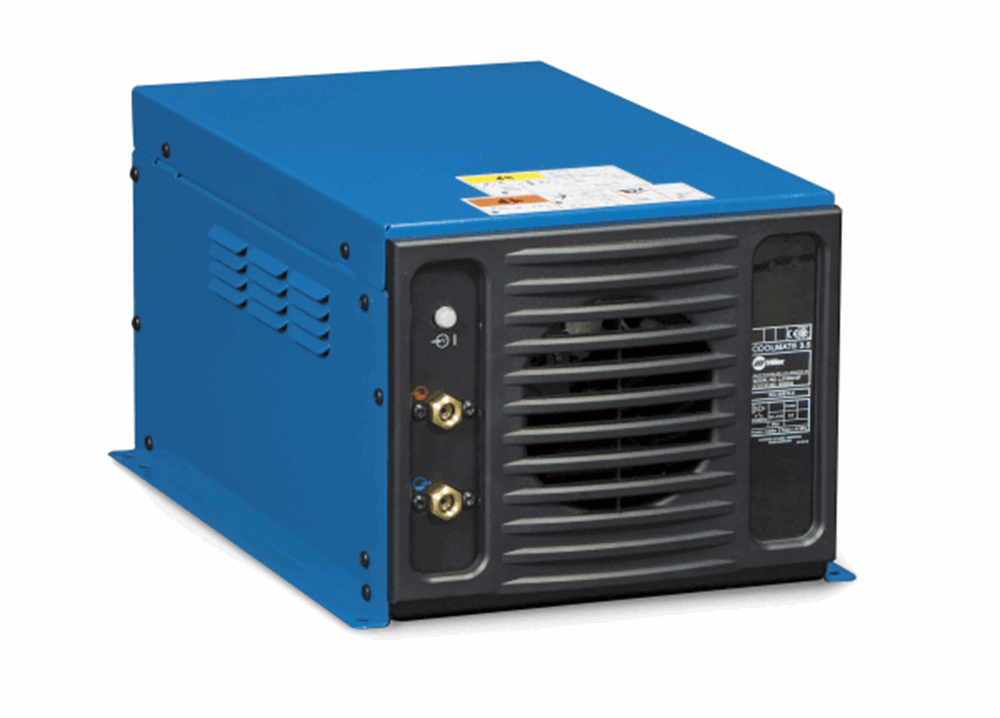

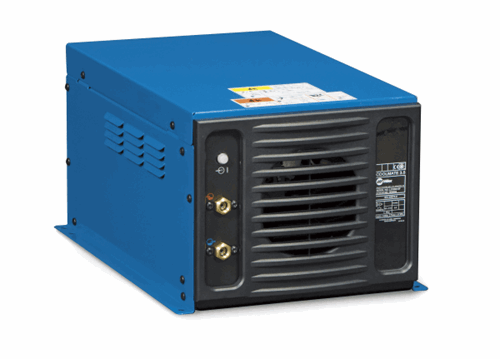

Coolmate™ 3.5 115 V #300245

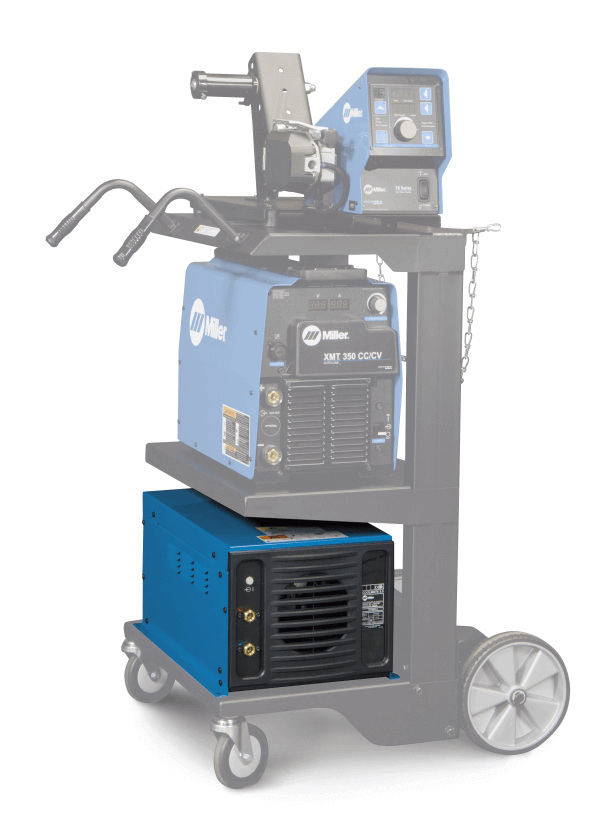

The Miller Coolmate 3.5 115V cooler works with water-cooled Miller torches rated up to 600A. It has a low profile horizontal design that allows for stacking and easy mounting to a Runner Cart. Welders Supply is the foremost authority on all Miller welding equipment and accessories for sale online. Shop now for great prices and fast shipping on our entire selection of welding supplies.
Compatible Welding Machines for the Coolmate™ 3.5 115 V #300245
The Miller Coolmate 3.5 is designed to work with:
- Maxstar 350/700 welding machine
- Dynasty 350/700 welding machines
Shop coolers and our entire selection of welding machines along with other welding machine accessories available at Welders Supply
GENERAL SPECIFICATIONS
Title | Coolmate™ 3.5 115 V |
---|---|
Dimensions | H: 11.75 in W: 15.75 in D: 26 in |
Max Cooling Capacity | 4140 |
Input Voltage | 110/115/120 V |
Input Phase | 1-Phase |
Input Hz | 50 Hz |
Max Current Draw | 4.7 A 5.9 A |
Rated Cooling Capacity | 1660 |
Tank Capacity | 3.5 13.2 |
Warranty | Miller's True Blue Warranty |
SHIPPING DIMENSIONS |
|
Height: | 15.00 Inches |
Width: | 17.00 Inches |
Length: | 30.00 Inches |
Weight: | 72 Lb(s) 0 Oz |
Consumables
Product Questions and Answers
How to fill Coolant Level:
- Acquire Coolant.
For the Miller Coolmate™ 3.5 115 V the correct coolant is “Low Conductivity Coolant No. 043 810 A 50/50 solution”.
- Find Tools.
Acquire funnel and gloves in order to safely fill the coolant levels.
- Fill Coolant.
Fill the coolant until it is approximately 1” below the filter neck.
