REPLACED BY #301589

Miller Syncrowave Series Heavy Duty Foot Control #194744

Heavy Duty Foot Control #194744 for Sale Online

Miller Foot Control, Heavy Duty, 14-pin plug #194744

Part Number: 194744

UPC: 715959245067

This Item Has Been Discontinued and has been replaced by Foot Control, Heavy Duty, 14-pin plug #301589 - Level up today!

DISCONTINUED - Check out other Foot Controls

Features
Specs
Documents
Videos
Consumables
FAQS

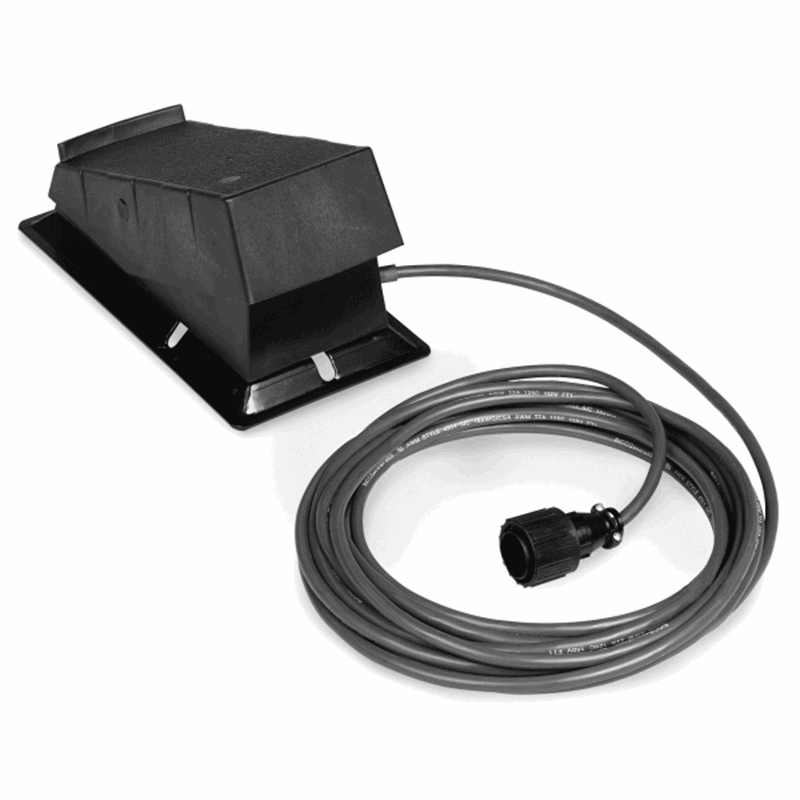

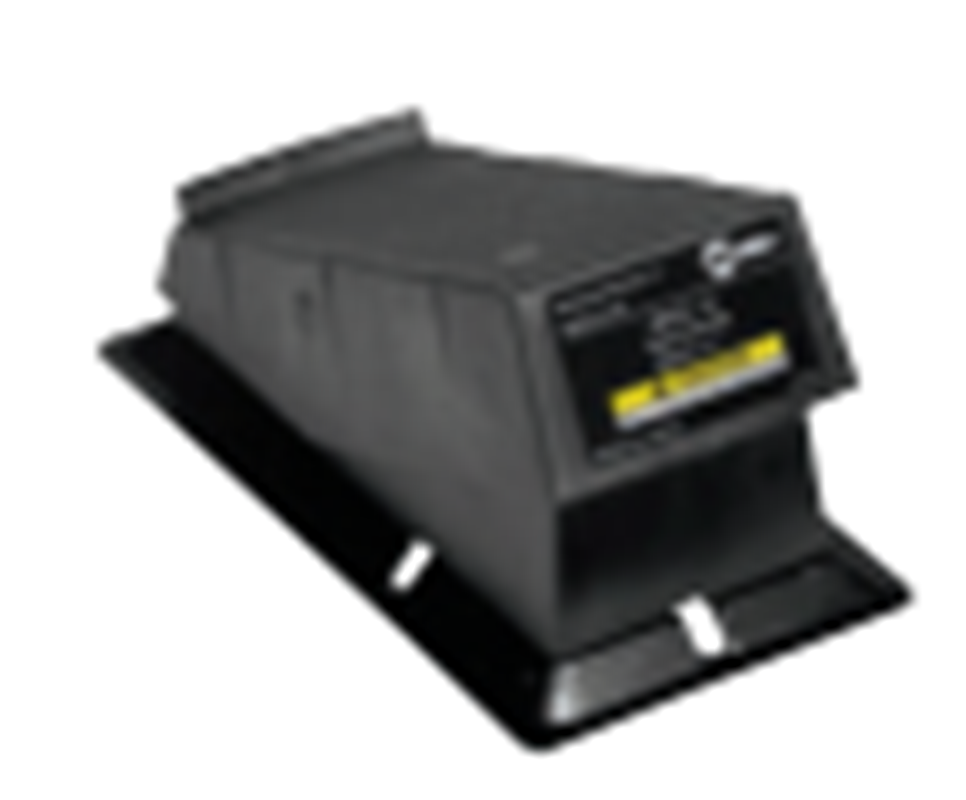

Miller Foot Control, Heavy Duty, 14-pin plug #194744

The Miller 14-pin plug heavy-duty foot pedal current and contactor control provides increased stability and durability from a larger base and heavier cord. Its maximum flexibility is accomplished with a reconfigurable cord that can exit the front, back or either side of the pedal. It also includes 20-foot (6 m) cord with plug. Welders Supply has the best selection of welding equipment and accessories available for sale online. Shop now for low prices and fast shipping on all of our welding supplies and accessories from Miller.

Heavy Duty Miller Foot Control with 14-Pin Plug Additional Information

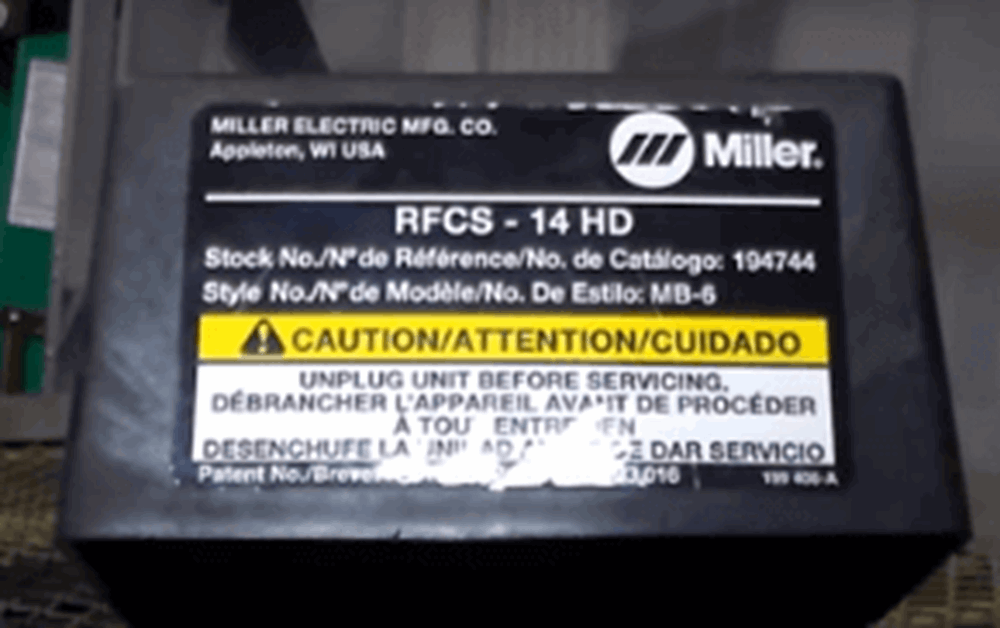

Alternate part number: RFCS-14 HD
Heavy duty foot pedal current/contactor control with increased stability and durability from larger base and heavier cord
Reconfigurable cord can exit front, back or either side of the pedal for flexibility

View foot controls and other welding machine accessories available in-store or online at Welders Supply

Cord Length	20ft
Plug	14 pin

SHIPPING DIMENSIONS
Height:	6.50 Inches
Width:	6.50 Inches
Length:	12.50 Inches
Weight:	6 Lb(s) 16 Oz

Foot Control, Heavy Duty, 14-pin plug #194744 Spec Sheet

Consumables

W850-115 Metabo Angle Grinder #601232420

Product Questions and Answers

Q - Does the cord only exit the front? A - No, it can be configured to exit the front, back or either side of the pedal.

Q - Is the plug included? A - Yes, it comes with a 20 ft cord and a 14-pin plug.

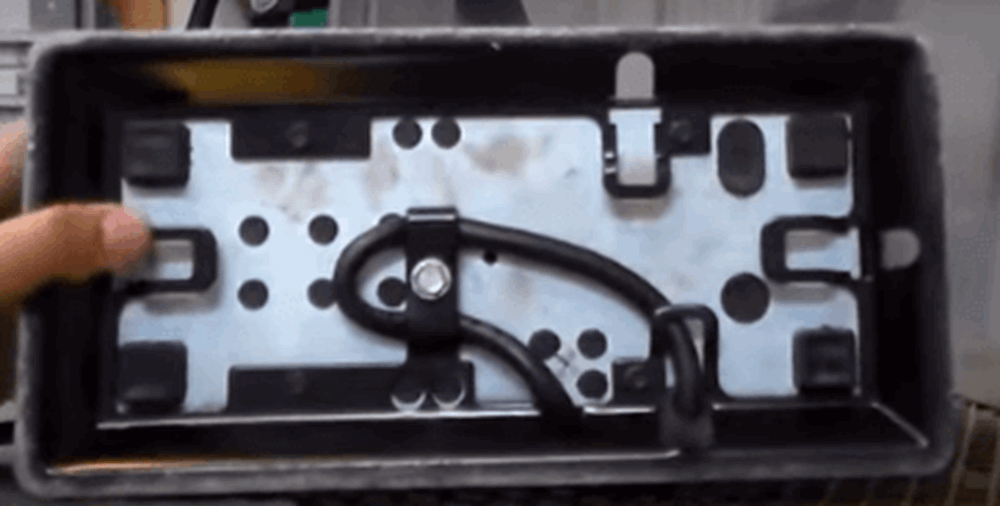

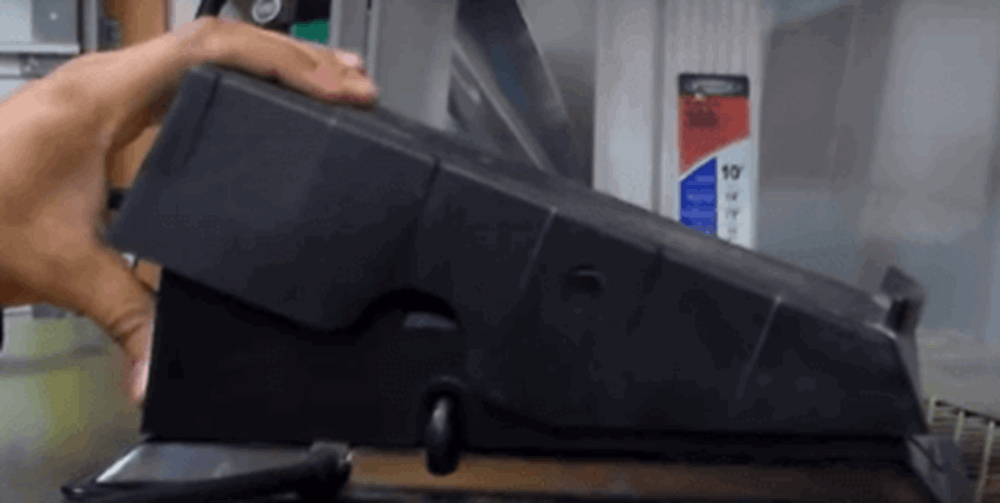

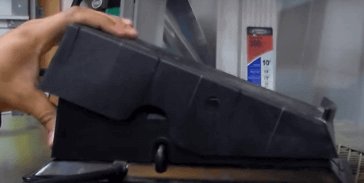

How to change cord location:

Remove bottom plate.
Turn unit upside down, and remove bottom plate.
Remove screw.
Remove screw that holds cord in its factory installed location.
Position cord in new spot.
Position cord in desired slot.
Slide strain relief in place.
Slide strain relief down cord and into slot to protect cord.
Secure cord.
Secure cord with screw in the same manner in which it came from the factory.
Reinstall plate.
Reinstall bottom plate.
