Miller Dynasty 210 TIG Runner #907685001

Welding type:

TIG
Power supply:

110V

220V Single Phase

220V 3 Phase

460V
Material type:

Mild Steel

Stainless Steel

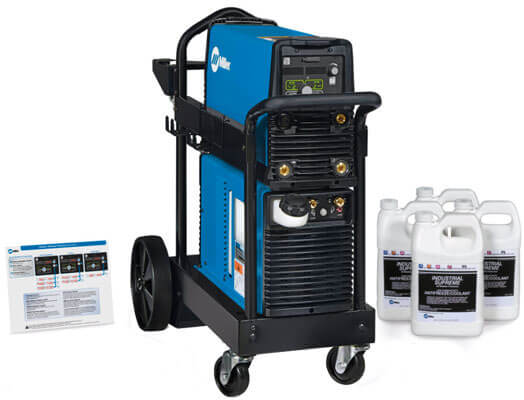

The Miller Dynasty® 210 TIGRunner® is a water-cooled, 210 amp, AC/DC TIG welding package.
Included in the Package:

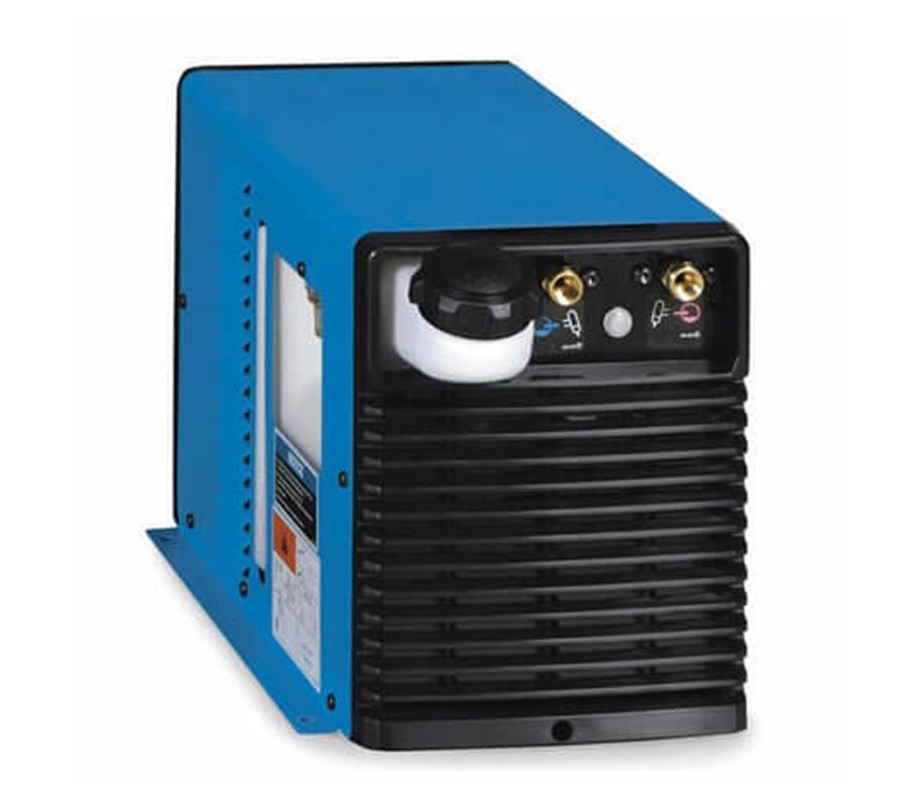

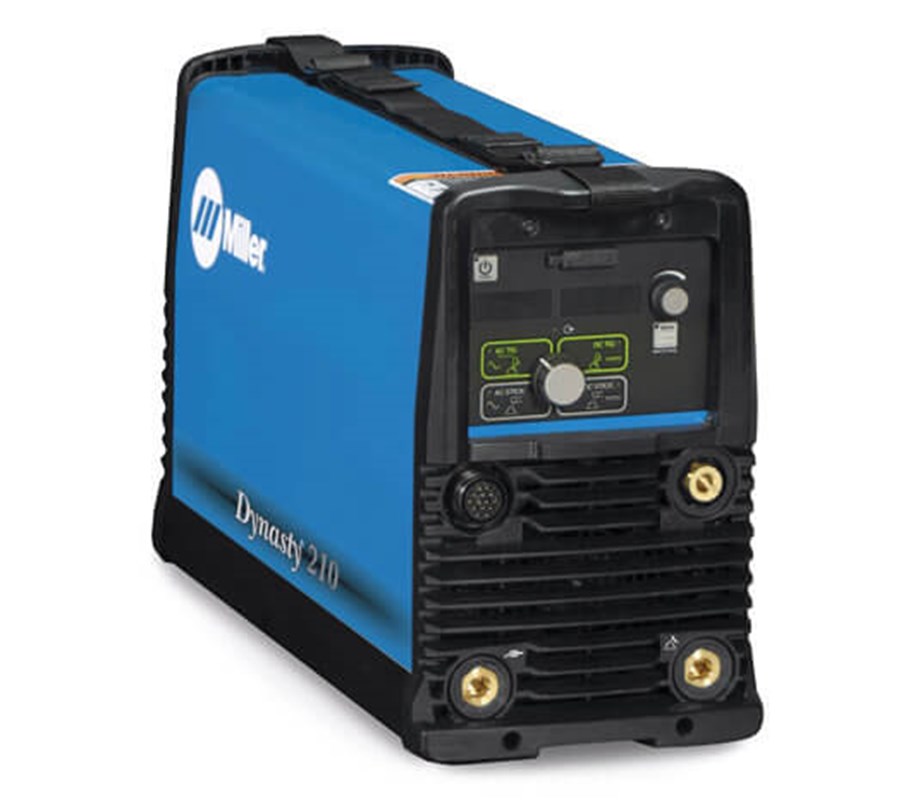

The system features the Dynasty 210 CPS (Cooler Power Supply) which can weld up to 1/4 inch thick aluminum and steel. The Dynasty 210's inverter design makes this welder compact and lightweight. The 210 comes complete with memory card expansion slot for maximum flexibility.
DOES NOT include TIG torch, work cable, gas regulator, gas hose or remote amperage control.
PROCESSES
Base and Deluxe Models Available
Dynasty 210 - Base model provides essential TIG and Stick functions and provides operator-friendly, menu-driven features. Dynasty 210 DX - The DX model offers full AC features, including advanced waveforms and wide ranges of balance and frequency.
Upgradeable and Expandable
Front panel memory card data port provides the ability to easily upgrade software and expand product features. Visit MillerWelds.com/tigsoftware for the latest software upgrades and expansions.
Auto-Line Power Management Technology
Allows hookup to either single-phase or three-phase electrical input from 120-460 V with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
Pro-Set Feature (professional settings)
This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
Stick Features (AC/DC)
Tailored arc control (DIG) allows the arc characteristic to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking. Stick-Stuck detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable
Title |
Dynasty® 210 120-480 V |
Industries Interests |
Aerospace |
Current Type |
AC / DC |
Input Hz |
50 / 60 Hz |
Input Phase |
1- and 3-Phase |
Portability |
Handle(s) |
Net Height |
13.6 in |
Net Length |
22.5 in |
Input Voltage |
110/115/120 V |
Max Open Circuit Voltage |
80 VDC |
Net Weight |
47 lbs |
Weldable Metals |
Aluminum |
Net Width |
8.6 in |
Warranty |
Miller's True Blue Warranty |
Amperage Min |
1 A |
Amperage Max |
210 A |
Material Thickness |
Steel: 0.002 in. (0.05 mm) - 1/4 in. (6.4 mm) |
SHIPPING DIMENSIONS |
|
Height: | 38.00 Inches |
Width: | 20.00 Inches |
Length: | 44.00 Inches |
Weight: | 173 Lb(s) 0 Oz |
