Miller Heavy Duty Hand Cutting Torch Outfit w/ Acetylene Tip, CGA 300 #HBAS-30300

Miller Hand Cutting Torch Heavy Duty Outfit w/ Acetylene Tip, CGA 300 #HBAS-30300

This oxy-fuel hand-cutting system from Miller is built for the toughest jobs, with multiple included features aimed at improving your cutting processes. The included high-capacity one-piece torch and SC12-1 acetylene tip provide enough power to cut up to 1 ¼ inch (32 mm) thick steel, while other tips can improve cutting power up to 20-inch thick steel. Backed by Miller 1-year warranty.

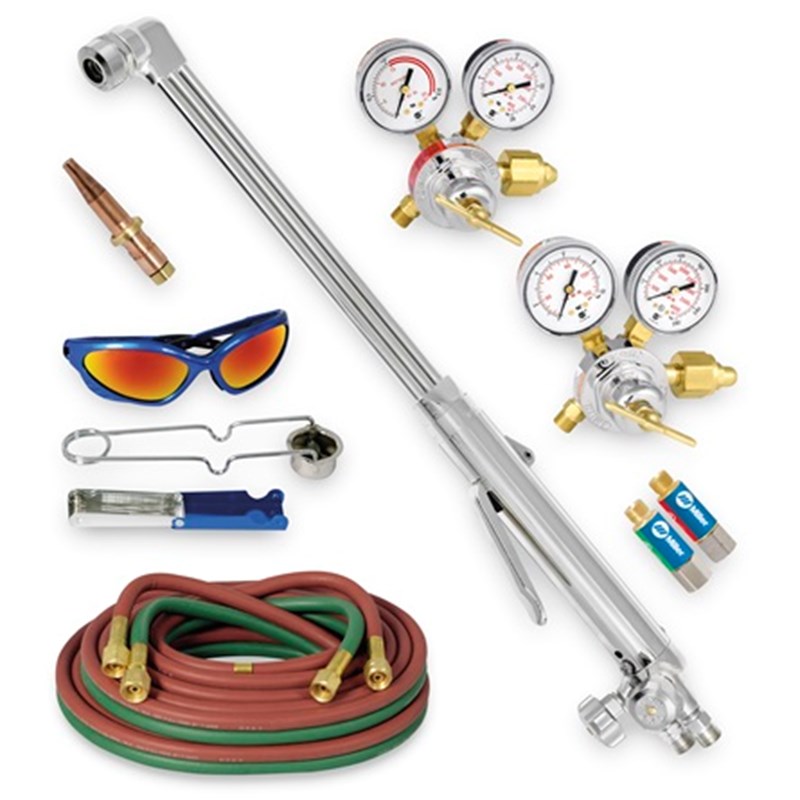

What's Included

• HD Straight Cutting Torch (SC229)
• Operations Manual
• Oxygen Regulator(30-100-540)
• Acetylene Regulator (30-15-300)
• Cutting Tip (SC12-1)
• 20-ft 3/16" Twin Hose (RL935)
• Friction Lighter (16571)
• Safety Glasses (78000)
• Tip cleaner (16570)
• Torch Mount Flashback Arrestors (H743)

Highlights

• Quick-Change Tip: Slip-in design allows fast, tool-free tip replacements.
• Dual Filter Regulators: Protects the high-pressure seat from debris for reliability and long life.
• Three-Tube Construction: Keeps gases separate until mixing at the tip for added safety.
• Durable Gauges: 2 in. shatter-resistant regulator gauges are easy to read.
• Graf-Tite® Soft Seat Tip: Prevents tip seat nicks, extending equipment life.
• SC12-1 Cutting Tip: Cuts metal from ½ in. (13 mm) to ⅝ in. (16 mm) thick.
• Corrosion-Resistant Body: Nickel-plated bonnet and forged brass body enhance durability.

Industries

• Construction & Fabrication

Benefits of the Heavy Duty Hand Cutting Torch Outfit

• Stainless steel ball-style valves allow for smooth adjustment and positive seating to eliminate leaks.
• PTFE packing provides a gas-tight seal while allowing for individual valve resistance settings.
• A reversible cutting lever comes mounted at the bottom but can be moved to the top by the operator if preferred.
• Hose connections are easily replaced for reduced maintenance costs.
• The external relief valve releases excessive pressure and automatically resets to protect the regulator from damage due to inadvertent high-pressure surges.
• A neoprene composite diaphragm extends equipment service life by resisting corrosion.
