Strong Hand Welding Clamp (2 Axis) #WAC35D
Part Number: WAC35D
$98.85
$126.00*
SAVE $27.15
VideosStrong Hand Welding Clamp #WAC35D
Firmly hold your work pieces in one place with this heat resistant machined cast iron clamp produced by Strong Hand (#WAC35D). Capable of holding metals while welding, cutting, or even gouging this clamp has a multitude of uses. Along with being specially engineered for easy access to the metal and ease of use. For this clamp allows for access of even the difficult to maneuver upright joints, and assists further with allowing the weld, cut, or gouge to be achieved easily by it facing outward, and has a stand-off design that allows for even further increased access to the item being worked upon. All while having a quick acting screw that tightens/release your hold with an easy to operate handle that can be used even with bulky welding gloves. Making this clamp a must have to ensure a tight hold on your work piece, have enough access to it in order to get the job done, and allow for easy adjustment to get the exact weld, cut, or gouge that you need.
Shop all welders supply quality clamps, hand tools or work benches.

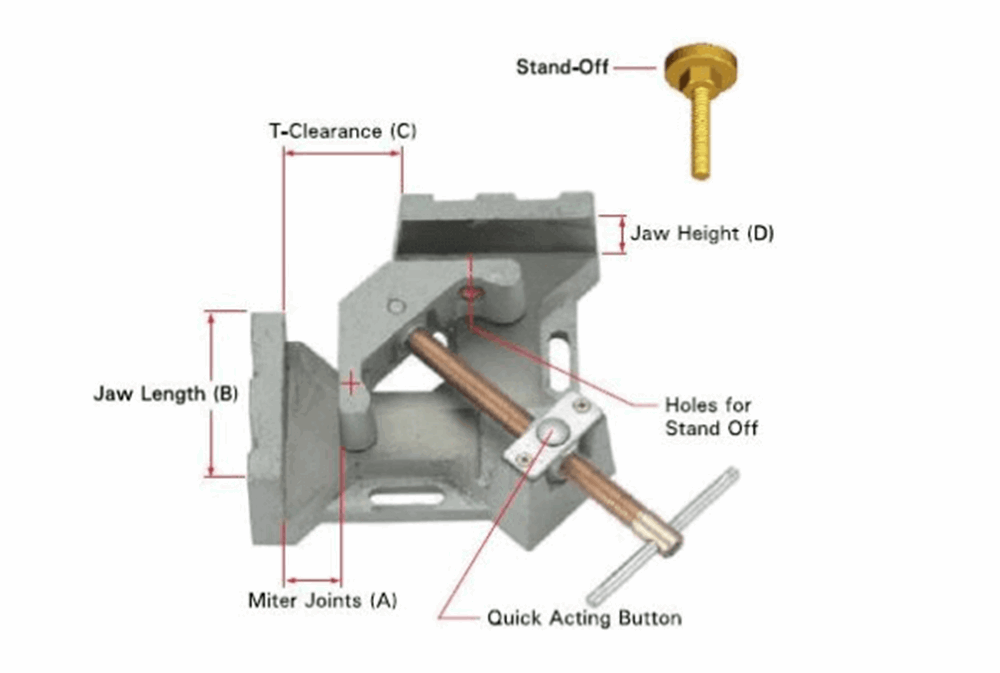

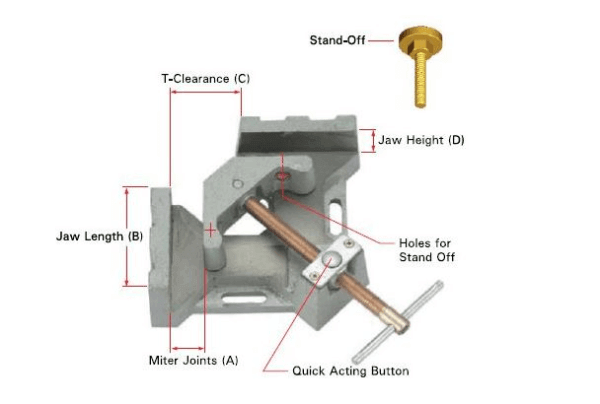

| Slot Size | 1.18" (30 mm) |
| Slot Width | 0.43"(11 mm) |
| Miter Joints | 3.75" (95 mm) |
| Jaw Length | 4.80" (122 mm) |
| T-Clearance | 2.45" (62 mm) |
| Jaw Height | 1.38”(35 mm) |
| Weight | 11 LBS (5.0 kg) |
Consumables
Product Questions and Answers
Q - How accurate is the 90-degree angle on this?
A - Compared to most clamps, it's very accurate. The accuracy will vary .012" per linear foot.
Q - What is it made of?
A - Machined cast iron.
