Ships Free To Lower 48 States

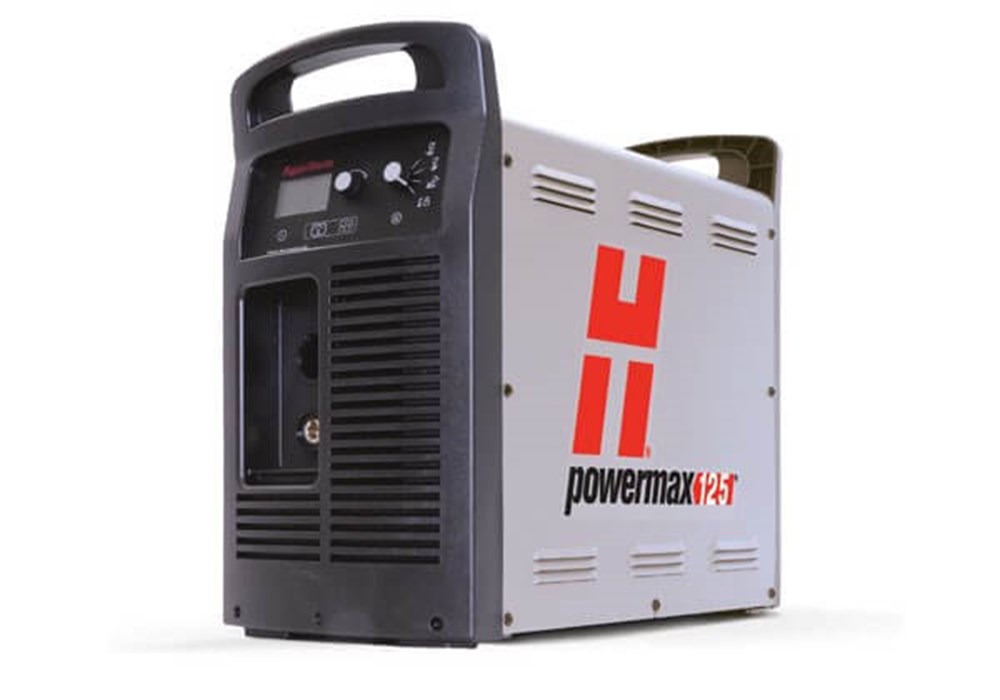

Powermax125 Plasma Cutter w/ 180° Machine Torch, CPC Port, Remote (460V) #059540

Part Number: 059540
$10,200.00 + Free Shipping

Cut capacity:

1" and Higher Capacity

1" and Higher Capacity

Plasma torch:

Mechanized

Mechanized

Power supply:

460V

460V

Material type:

Mild Steel

Mild Steel

Stainless Steel

Stainless Steel

Aluminum

Aluminum

HYTHERM POWERMAX125 - UNLEASH PRECISION WITH AN EXTENDED REACH AND REMOTE CONTROL

Discover the cutting-edge capabilities of the Hypertherm Powermax125 Plasma Cutter with a 180° machine torch, CPC port, and remote control (#059540). This industrial-grade powerhouse is engineered to redefine cutting and gouging performance. With an impressive 125 amps, it effortlessly handles demanding applications, slicing through metals up to 57mm (2-1/4") thick at an impressive 125mm/min (5 ipm).

Leverage advanced technology that automatically adjusts gas pressure and detects electrode end-of-life, ensuring precise cuts while safeguarding the torch and workpiece. Say goodbye to manual adjustments and embrace consistent, high-quality results.

The Powermax125 ensures exceptional productivity and efficiency, boasting cut speeds five times faster than oxyfuel and a 100% duty cycle. Experience uninterrupted cutting time, accelerating progress on any project. Its extended consumables life further saves time and money on replacements.

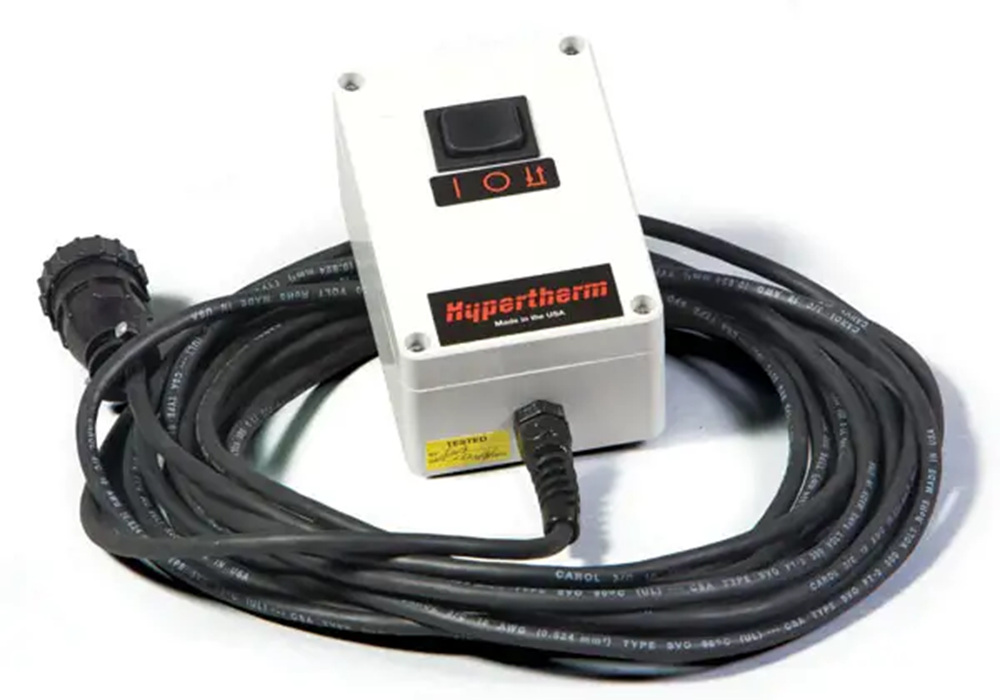

Experience the pinnacle of precision and control with the 180° machine torch and an extended 50 ft reach, allowing you to handle diverse tasks with ease. The inclusion of a CPC port and remote control enhances the user experience, offering convenience and flexibility in your cutting operations. This package includes the Powermax125 power supply with a CPC port and voltage divider, a 180° machine torch with a 50 ft work cable, and a remote control. To unlock automated cutting capabilities, integrate a machine torch seamlessly.

Elevate your cutting experience with the Hypertherm Powermax125 Plasma Cutter. Crafted for durability and professional results, it stands as the ultimate choice for craftsmen and professionals alike.

Always refer to operating guides for recommended adjustments. For inquiries, contact Welders Supply Company at 1-800-236-8825.

POWERMAX125 ACCESSORIES:

COMPARE POWERMAX125 TO OTHER MODELS:

Explore our complete range of Hypertherm products or discover plasma cutter consumable parts and machines at Welders Supply. Elevate your cutting experience today!

Browse all Hypertherm products or see our selection of plasma cutter consumable parts and plasma cutting machines available at Welders Supply.

Hypertherm Powermax 125 Specifications

Input voltages 480/600 V, 3-PH, 50/60 Hz
Input current @ 21.9 kW 480/600 V, 31/24 A
Output current 30-125 A
Rated output voltage 175 VDC
Duty cycle @ 104° F (40° C) 100% @ 125 A, 480/600 V, 3-PH
Open circuit voltage (OCV) 320 VDC
Dimensions with handles 23.3" D; 10.8" W; 20.0" H
Weight w/ 25' torch

400 V - 105.7 lbs

600 V - 104.7 lbs

Gas supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate/pressure

Cutting: 260 l/min (550 scfh) @ 5.9 bar (85 psi)

Gouging: 212 l/min (450 scfh) @ 4.1 (60 psi)

Input power cable length 10'
Power supply type Inverter - IGBT
Engine drive requirement 40 kW for full 125 A output
Certifications CSA-certified for use in the Americas and Asia, except China
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty



Capacity

Thickness

Cut Speed

  Cutting
Recommended 1½" 18 ipm
  1 ¾” 10 ipm

Severance (hand cutting)

2 ¼” 5 ipm
Pierce* 1"
  *Pierce rating for handheld use or with automatic torch height control



Capacity

Metal removal rate

Groove profile*

  Gouging
Typical gouge 27.6 lbs/hr 0.17-0.31" D x 0.24-0.390" W
  *Actual groove profile varies with torch angle, arc stretch, and technique



SHIPPING DIMENSIONS

Height: 1.00 Inches
Width: 1.00 Inches
Length: 1.00 Inches
Weight: 1 Lb(s) 0 Oz
