Miller Digital Infinity Series Auto Darkening Helmet - Imperial #280053

Part Number: 280053

This Item Has Been Discontinued and has been replaced by Digital Infinity™ Imperial, Welding Helmet w/ Clearlight 2.0 #288725 - Level up today!

Features
Specs
Documents
Videos
Accessories
Consumables
FAQS

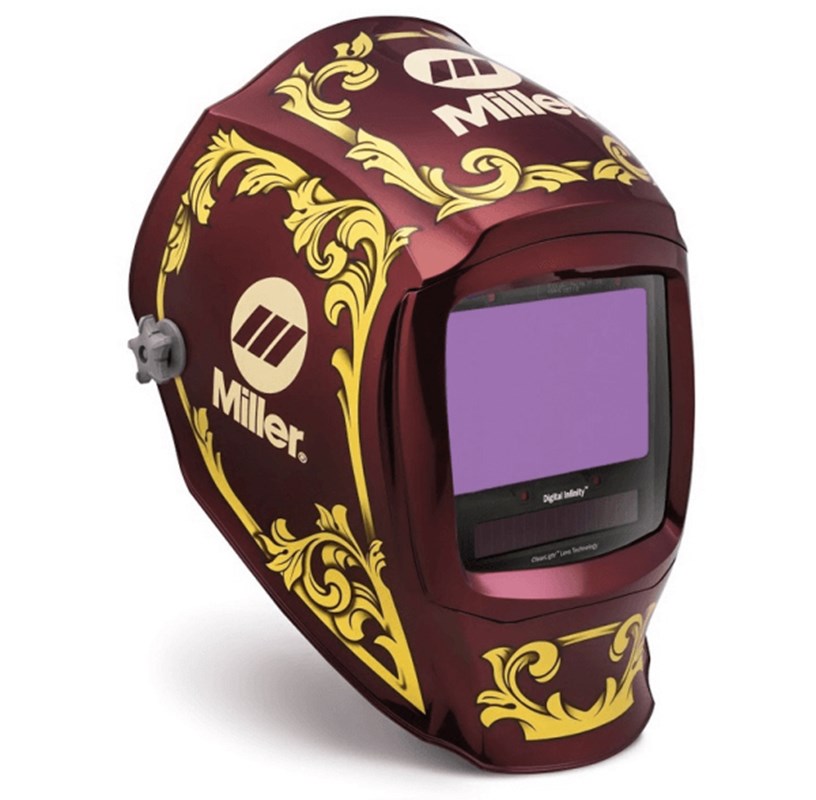

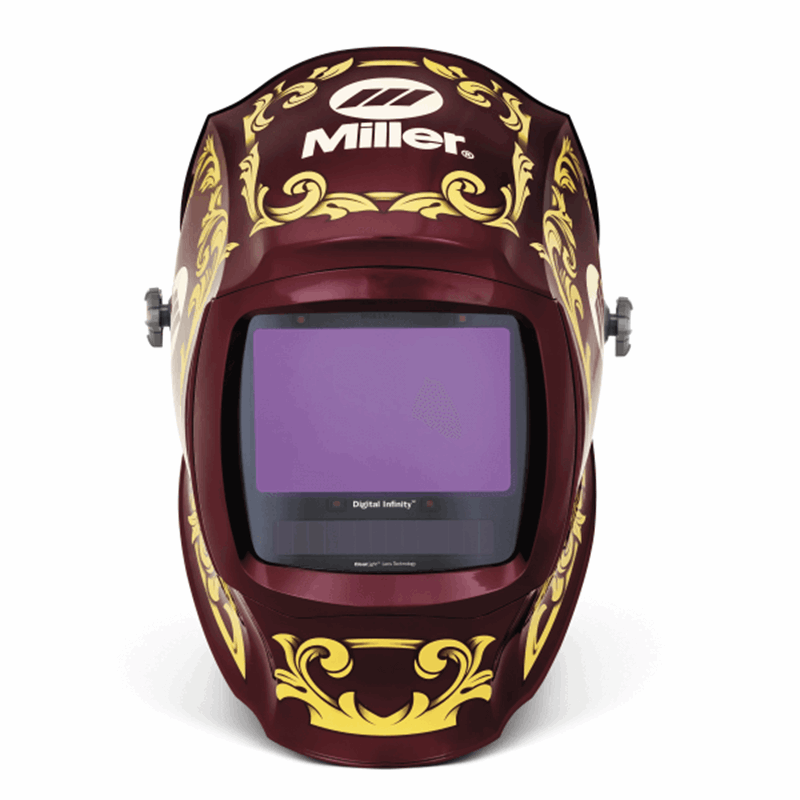

Miller Digital Infinity Series Auto Darkening Helmet - Imperial #280053

Miller Digital Infinity Series Auto Darkening Helmet offer the largest viewing area in the industry. 13.4-square-inch viewing area with wide screen format provides unsurpassed view and eliminates tunnel vision.

ClearLight ™ Lens Technology optimizes contrast and clarity in welding and light states. 1/1/1/2 optical clarity rating allows for a lighter light state while
not welding — keeping the helmet down —maximizing safety and productivity.

Four arc sensors and four modes: weld, cut, grind and X-Mode. X-Mode electromagnetically senses the weld to eliminate sunlight interference and continuously detects the arc even if sensors are blocked.

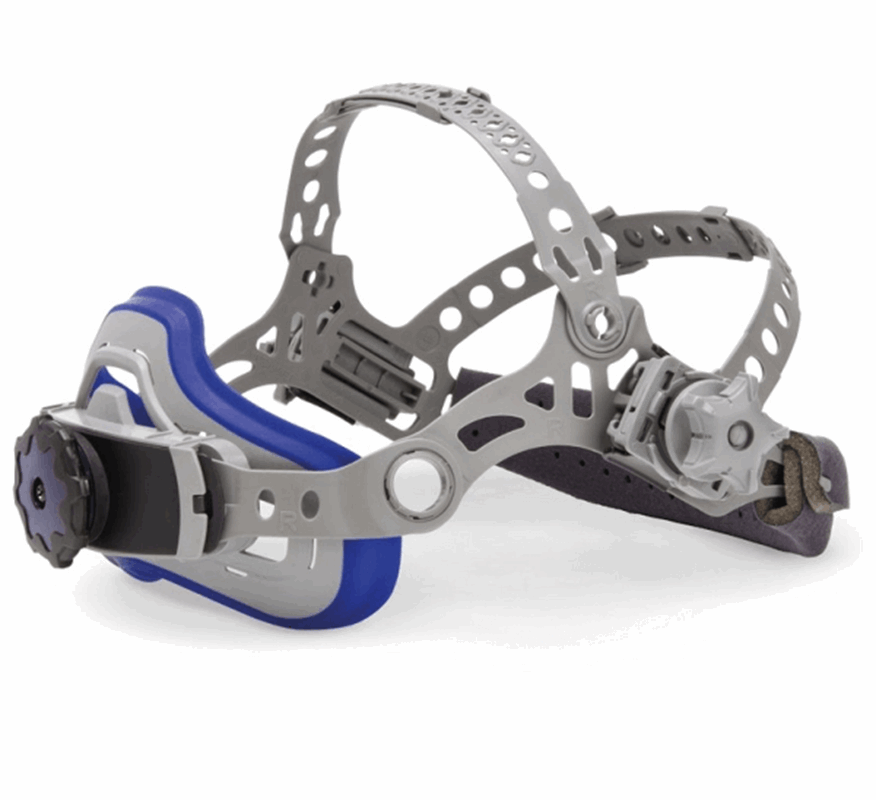

Gen 3.5 headgear with comfort cushion has an ergonomic design that provides extensive adjustability, settings, and enhanced support.

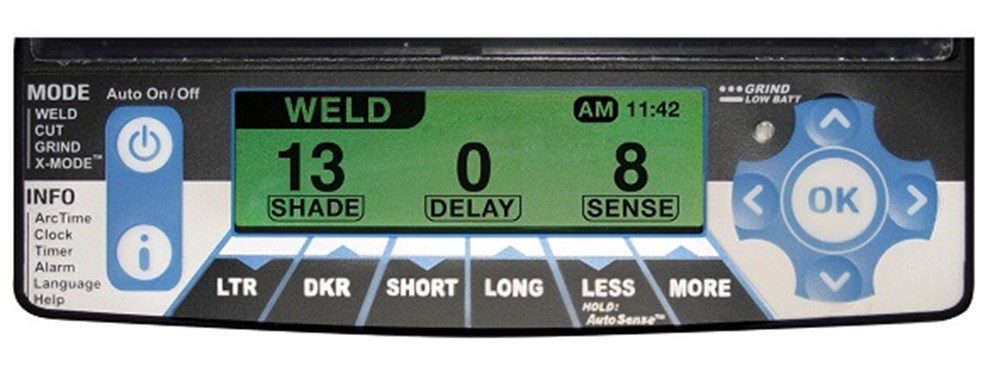

Digital controls easily allow welder to adjust shade, delay, and sensitivity.

AutoSense™ eliminates issues related to setting helmet sensitivity by allowing the welder to push and hold the AutoSense button to automatically set the helmet
sensitivity for their environment.

Meets ANSI Z87.1+, CSA and CE standards.

Features InfoTrack™:

Tracks and displays arc time
Allows operator to set time, alarm, and timer
Provides multi-language help menu

Shop the full selection of Safety Equipment and welding helmets available at Welders Supply Company. Check out our helmet accessories.

Miller Digital Infinity Series Auto Darkening Helmet Specifications
Viewing Area	13.4 sq. in. (86.45 sq. cm)
Operating Modes	Weld Cut Grind X-Mode™
Shades	Cut: 5-8 Weld 8-13
Sensors	4
TIG Rating	5 Amps and below
Switching Speed	1/20,000 sec.
Weight	23 oz. (652 g)

SHIPPING DIMENSIONS
Height:	10.38 Inches
Width:	10.50 Inches
Length:	12.25 Inches
Weight:	3 Lb(s) 5 Oz

Accessories

GlareBlocker™ Welding Helmet Glare Guard #AH3...

$14.99

View

Consumables

Miller Digital Infinity Helmet Battery CR2450 Part#217043

Product Questions and Answers

How to adjust headgear:

Adjust headgear top.
Adjusts headgear for proper depth on the head to ensure correct balance and stability.
Adjust headgear tightness.
To adjust, turn the adjusting knob located on the back of the headgear left or right to desired tightness.
Angle adjustment.
Seven slots on right side of headband provide adjustment for forward tilt. To adjust, lift and reposition the control arm to desired position.
Adjust the distance.
Adjusts the distance between the face and the lens. To adjust, press black tabs on the top and bottom of the pivot point and use other hand to slide headgeas forward/backward.
Check Gauges.
All gauges should read zero when the pressure is removed. If they do not, the gauges may be damaged.
