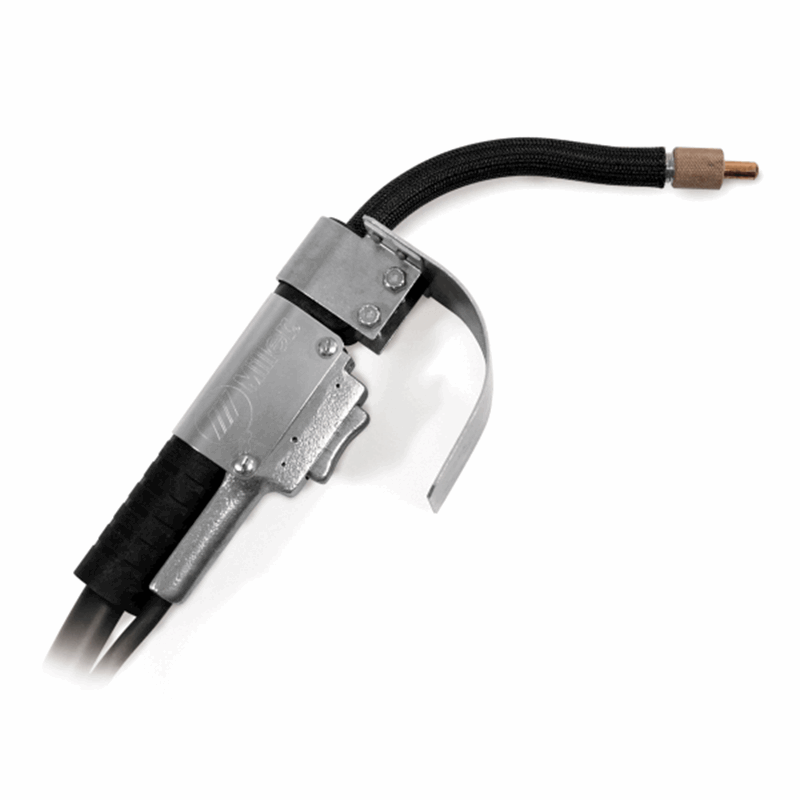

FC-1260 Ironmate™ Gun, 350 Amps, 15 ft #195729
Ironmate Series welding guns are an ideal match for the Miller S-22P12 or Super S-32P and can be used with other Miller wire feeders. The FC-1260LM can be used with Lincoln wire feeders without ordering additional parts to do so.
Replaceable cable and gooseneck liners means guns are not a throw away when the liners wear out.
Two-piece liner (excludes FC-1260 .045 conversion kit) reduces replacement liner cost.

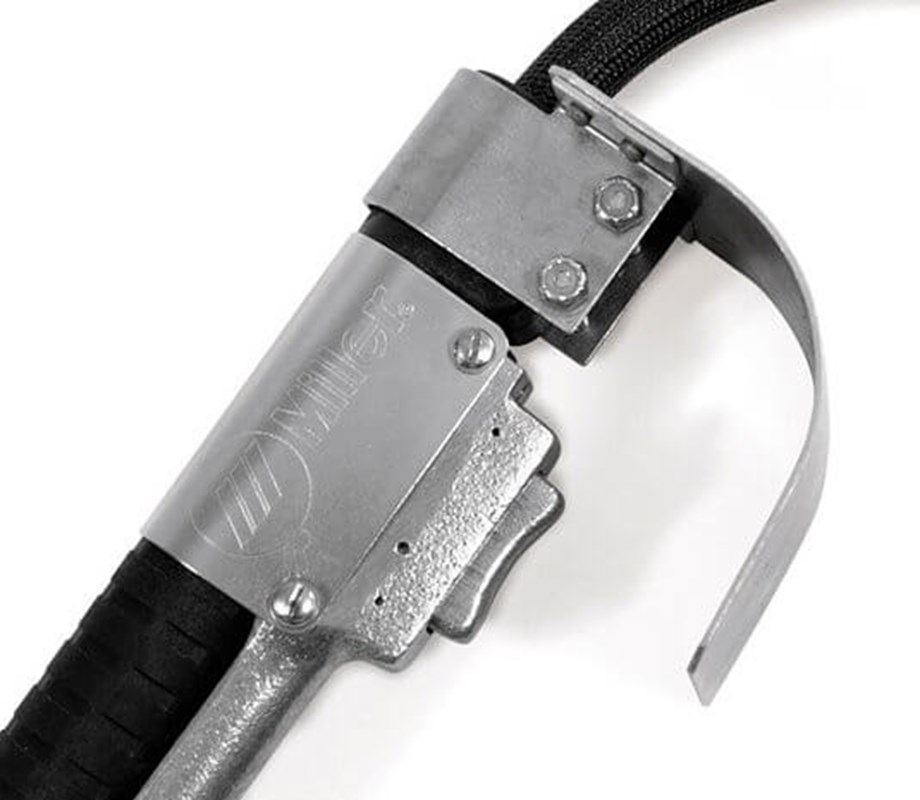

Rugged, rotatable trigger is rated for 1,000,000 cycles and can be rotated to the top or bottom of the handle, allowing thumb or finger actuation.
View welding guns and other welding machine accessories available in store or online at Welders Supply
GENERAL SPECIFICATIONS
Title | FC-1260 Ironmate™ Gun, 350 Amps, 15 ft |
---|---|
Amperage Rated Output | 350 |
Cable Length | 15 |
Torches Type | Ironmate Series |
Wire Size | 1/16 3/32 |
SHIPPING DIMENSIONS |
|
Height: | 4.00 Inches |
Width: | 18.25 Inches |
Length: | 18.25 Inches |
Weight: | 11 Lb(s) 4 Oz |
Consumables
Product Questions and Answers

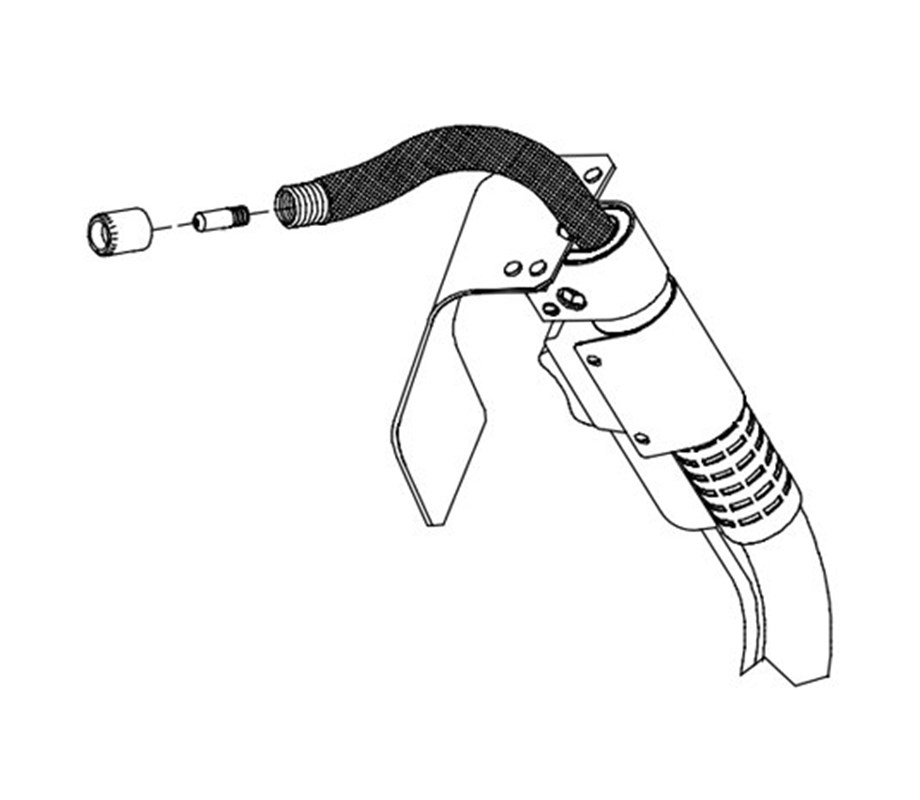

How to Replace the Contact Tip:
-
Turn OFF.
Turn off welding power source/wire feeder.
-
Cut Wire.
Cut off wire at the contact tip.
-
Remove and Replace.
Remove both the thread protector/nozzle and contact tip. Replace the contact tip.
